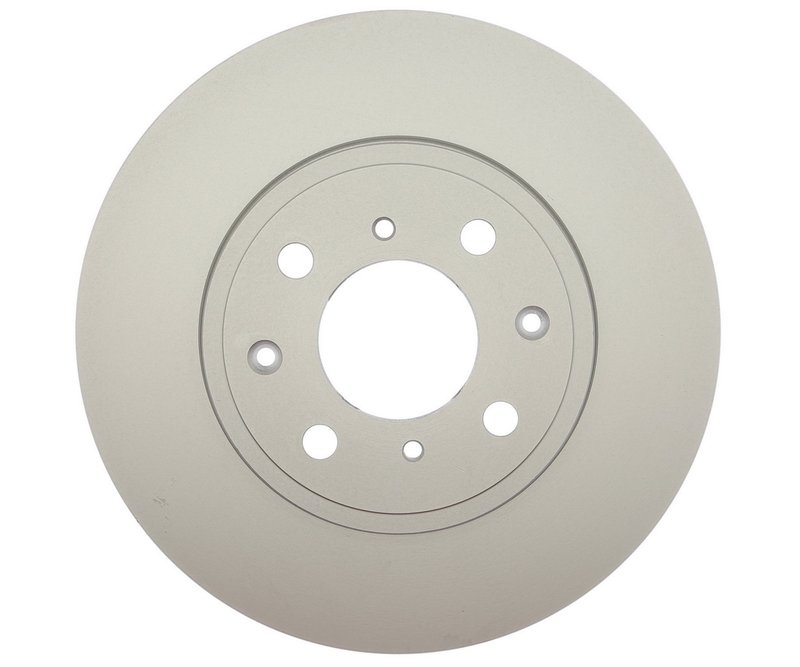

Raybestos 981199FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Honda City and Fit

The Raybestos Element3; Coated Rotor 981199FZN is engineered to provide consistent braking performance for Honda City and Fit models. Designed as a vented, conventional disc brake rotor, it offers durability and smooth operation tailored to your vehicle's specifications.

• Compatible with Honda City and Honda Fit models
• Part number 981199FZN for precise identification
• Vented rotor design for improved heat dissipation
• Coated surface to resist corrosion and extend rotor life
• Mounting bolt hole quantity: 4 for secure fitment
• Nominal thickness: 0.827 inches (21.000 mm)
• Discard thickness: 0.748 inches (19.000 mm)
• Outside diameter: 10.303 inches (261.700 mm)
• Inside diameter: 6.299 inches (160.000 mm)
• Overall height: 1.760 inches (44.700 mm)
• Smooth surface type for consistent pad contact

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line from Raybestos focuses on delivering rotors with a protective coating that helps prevent rust and corrosion. This coating enhances the rotor's lifespan while maintaining the necessary friction surface for effective braking. The vented design of this rotor aids in heat dissipation, reducing the risk of brake fade during extended use.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 0.827 inches (21.000 mm) and a discard thickness of 0.748 inches (19.000 mm), ensuring it meets safety and performance standards. The rotor's outside diameter measures 10.303 inches (261.700 mm), with an inside diameter of 6.299 inches (160.000 mm). It includes four mounting bolt holes with a bolt circle diameter of 3.937 inches (100.000 mm) and a mounting bolt hole diameter of 0.500 inches (12.700 mm). The rotor is vented and conventional in design, providing efficient cooling and reliable braking performance for your Honda City or Fit.

Common Issues Addressed by This Rotor

• Brake rotor warping due to heat buildup
• Corrosion and rust on rotor surfaces
• Uneven brake pad wear caused by rotor imperfections
• Reduced braking efficiency from worn or thin rotors
• Brake noise and vibration related to rotor condition

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.748 inches (19.000 mm) before installation. Clean the mounting surface and verify the mounting bolt hole alignment with the vehicle hub. Use proper torque specifications for the four mounting bolts to secure the rotor. The smooth surface type requires compatible brake pads for optimal contact and performance.

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The Element3; Coated Rotor 981199FZN undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty details should be confirmed with the product documentation or manufacturer.
