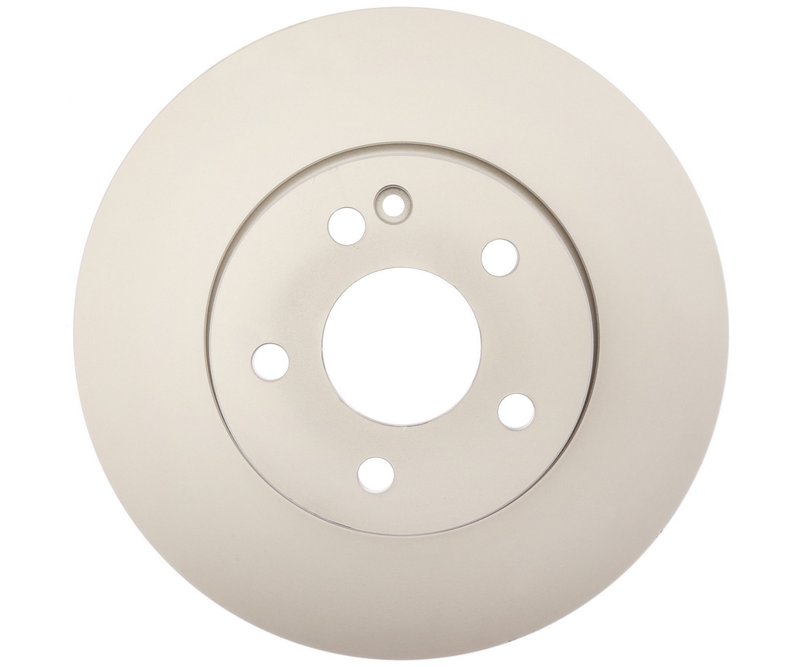

Raybestos 981439 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Raybestos Specialty - Street Performance

Raybestos 981439 Disc Brake Rotor - Front

Brand Raybestos 981439
Position Front
Discard Thickness 1.024
Discard Thickness 26.000
Nominal Thickness 1.102
Nominal Thickness 28.000
Inside Diameter 177.500
Inside Diameter 6.988
Overall Height 2.303
Overall Height 58.500
Outside Diameter 11.803
Outside Diameter 299.800
Mounting Bolt Hole Quantity 5
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.642
Center Hole Diameter 67.100
Mounting Bolt Hole Circle Diameter 120.000
Mounting Bolt Hole Circle Diameter 4.724
Mounting Bolt Hole Diameter 0.591
Mounting Bolt Hole Diameter 15.000
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Raybestos Specialty - Street Performance
Fits Mercedes-Benz · 8 vehicles

Coated rotor. Helps resist corrosion for a cleaner look and longer-lasting finish.

Vented design. Promotes airflow through the rotor for more consistent braking performance.

Smooth surface. Provides a clean contact area for dependable brake pad engagement.

Cross-references Centric Parts 121.35146, Dynamic Friction Company 604-63158 and Genuine 6394210012 for the same application. See all 5.

$103.42Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $103.42
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos 981439 Front Brake Rotor for Mercedes-Benz Metris

Raybestos 981439 is a front disc brake rotor for select Mercedes-Benz Metris models. It combines a vented, smooth-surface design with coated rotor construction to support consistent braking performance and corrosion resistance in everyday street use.

Key Features

  • Front disc brake rotor for 2016-2023 Mercedes-Benz Metris applications
  • Raybestos Specialty - Street Performance product line
  • Coated rotor construction for added protection against rust on non-friction surfaces
  • Vented rotor design for improved heat management
  • Smooth surface type for stable pad contact
  • 5-lug mounting pattern with 120.000 mm bolt circle diameter
  • Outside diameter: 299.800 mm (11.803 in)
  • Nominal thickness: 28.000 mm (1.102 in)
  • Discard thickness: 26.000 mm (1.024 in)

Product Details

Built for front axle service, Raybestos 981439 measures 58.500 mm overall height, 67.100 mm center hole diameter, and 177.500 mm inside diameter. The rotor uses a conventional drum-in-hat style rotor layout and a vented construction to help manage heat during repeated stops. For shoppers searching for a front brake rotor for Mercedes-Benz Metris 2016-2023, this part number provides the dimensional fit and brake hardware geometry needed for the listed applications. This part cross-references Centric Parts 121.35146 for the same application.

Common Issues This Rotor Can Address

  • Brake pulsation caused by rotor wear or thickness variation
  • Reduced braking consistency from heat buildup in front brake service
  • Surface corrosion on exposed rotor areas
  • Noise or vibration associated with worn front rotors
  • Replacement needs during brake pad and rotor service on Mercedes-Benz Metris

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and front-position fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Inspect pads, calipers, and wheel hardware during service, and follow the vehicle manufacturer’s torque specifications and bedding procedure after installation. Fits 2016-2020 Mercedes-Benz Metris, front. Fits 2021-2023 Mercedes-Benz Metris, front.

Quality Assurance

Raybestos Specialty - Street Performance rotors are built for street-focused braking service with coated surfaces and application-specific dimensions. Part number 981439 is listed with confirmed fitment for select Mercedes-Benz Metris front applications.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2023Mercedes-BenzMetrisFrontRaybestos Specialty - Street Performance
2022Mercedes-BenzMetrisFrontRaybestos Specialty - Street Performance
2021Mercedes-BenzMetrisFrontRaybestos Specialty - Street Performance
2020Mercedes-BenzMetrisFrontSpecialty - Street Performance; Coated Rotor
2019Mercedes-BenzMetrisFrontSpecialty - Street Performance; Coated Rotor
2018Mercedes-BenzMetrisFrontSpecialty - Street Performance; Coated Rotor
2017Mercedes-BenzMetrisFrontSpecialty - Street Performance; Coated Rotor
2016Mercedes-BenzMetrisFrontSpecialty - Street Performance; Coated Rotor
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 121.35146Dynamic Friction Company — 604-63158Genuine — 6394210012125.35146SDK6110
