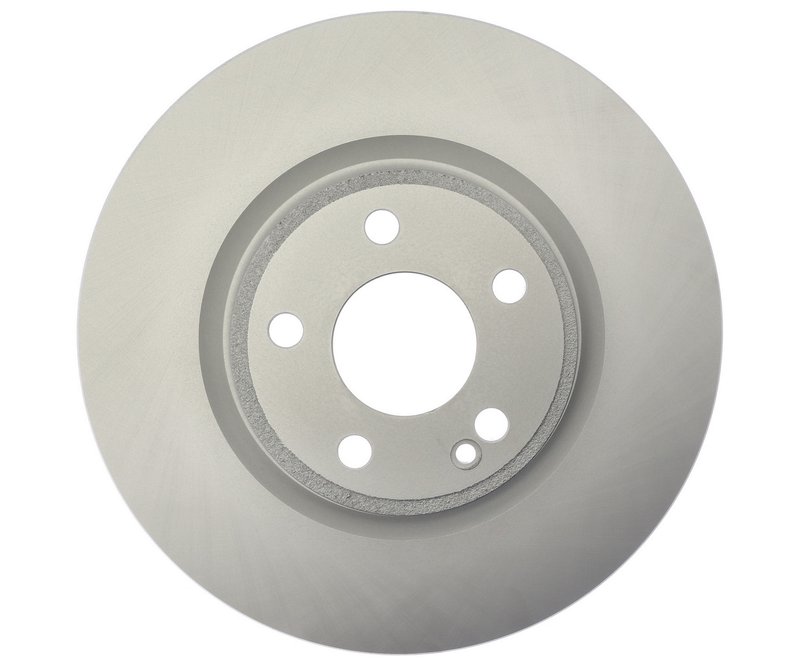

Raybestos 981775FZN Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Element3; Coated Rotor

Raybestos 981775FZN Disc Brake Rotor - Front

Brand Raybestos 981775FZN
Position Front
Discard Thickness 1.080
Discard Thickness 27.450
Nominal Thickness 1.180
Nominal Thickness 29.950
Overall Height 2.012
Overall Height 51.100
Outside Diameter 12.598
Outside Diameter 320.000
Mounting Bolt Hole Quantity 5
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 112.000
Mounting Bolt Hole Circle Diameter 4.409
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Element3; Coated Rotor
Fits INFINITI and Mercedes-Benz · 27 vehicles

Element3 coated design. Helps resist corrosion on exposed rotor surfaces.

Vented construction. Promotes airflow through the rotor during braking.

Conventional rotor style. Built for standard disc brake service applications.

Cross-references Centric Parts 121.35150, Centric Parts 125.35150 and Centric Parts 320.35150C for the same application. See all 23.

$94.49Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $94.49
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Product Overview

Raybestos Element3 coated disc brake rotor 981775FZN is a vented, conventional rotor built for front brake service on select Mercedes-Benz and INFINITI applications. Its coated finish helps resist corrosion on exposed surfaces, while the vented design supports heat management during repeated stops.

Compatible With Mercedes-Benz GLA250, Mercedes-Benz B250, Mercedes-Benz CLA250, and INFINITI QX30 front brake applications, this rotor is sized for a 320 mm outside diameter, 5-lug mounting pattern, and 112 mm bolt circle. The Raybestos 981775FZN is a direct-fit replacement for vehicles that match the listed fitment and notes.

Key Features

  • Element3 coated rotor design for corrosion resistance on exposed surfaces
  • Vented construction for improved airflow through the rotor
  • Conventional rotor style for standard brake service applications
  • 320 mm outside diameter with 5 mounting bolt holes
  • 112 mm bolt circle diameter for listed fitment

Detailed Description

The Raybestos 981775FZN brake rotor is engineered for front axle brake replacement where a vented, conventional disc rotor is specified. It measures 1.180 inches nominal thickness, 1.080 inches discard thickness, and 2.012 inches overall height, giving installers the dimensional reference needed for proper brake service. This rotor is listed for 2013-2019 Mercedes-Benz B250, 2014-2019 Mercedes-Benz CLA250, 2015-2020 Mercedes-Benz GLA250, and 2017-2019 INFINITI QX30 front applications, with note exclusions for certain sport package vehicles.

Raybestos Element3 coated rotor 981775FZN is a practical choice for drivers replacing worn front brake rotors on Mercedes-Benz and INFINITI platforms. This part cross-references Centric Parts (e.g., 121.35150, 125.35150) for the same application.

What It Helps Address

  • Brake pulsation from a worn or uneven rotor surface
  • Reduced braking consistency caused by rotor wear
  • Corrosion on rotor surfaces exposed to moisture and road debris
  • Heat buildup during repeated braking events
  • Fitment issues when replacing a front rotor with the wrong diameter or bolt pattern

Installation Notes

Verify the vehicle’s brake package before ordering, since some Mercedes-Benz applications are not compatible with sport package equipment. Confirm the 320 mm diameter, 5-lug pattern, and 112 mm bolt circle against the original rotor before installation. Always inspect pads, caliper condition, and hub surfaces during brake service to help ensure proper rotor seating and even braking performance.

Quality Assurance

Raybestos Element3 is a recognized product line within the brand’s brake rotor range, and this coated rotor is built to match the listed OE-style fitment requirements for the specified applications.

Related reading

This part fits 27 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2020Mercedes-BenzGLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2019INFINITIQX30SportFrontElement3; Coated Rotor
2019INFINITIQX30PureFrontElement3; Coated Rotor
2019INFINITIQX30LuxeFrontElement3; Coated Rotor
2019INFINITIQX30EssentialFrontElement3; Coated Rotor
2019Mercedes-BenzB250—FrontRaybestos Element 3
2019Mercedes-BenzCLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2019Mercedes-BenzGLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2018INFINITIQX30BaseFrontElement3; Coated Rotor
2018INFINITIQX30PremiumFrontElement3; Coated Rotor
2018INFINITIQX30LuxuryFrontElement3; Coated Rotor
2018Mercedes-BenzB250—FrontRaybestos Element 3
2018Mercedes-BenzCLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2018Mercedes-BenzGLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2017INFINITIQX30—FrontElement3; Coated Rotor
2017Mercedes-BenzB250—FrontRaybestos Element 3
2017Mercedes-BenzCLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2017Mercedes-BenzGLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2016Mercedes-BenzB250—FrontRaybestos Element 3
2016Mercedes-BenzCLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2016Mercedes-BenzGLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2015Mercedes-BenzB250—FrontRaybestos Element 3
2015Mercedes-BenzCLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2015Mercedes-BenzGLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2014Mercedes-BenzB250—FrontRaybestos Element 3
2014Mercedes-BenzCLA250—FrontNot compatible with vehicles equipped with sport package.; Element3; Coated Rotor
2013Mercedes-BenzB250—FrontRaybestos Element 3
Directly replaces or cross-references 23 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 121.35150Centric Parts — 125.35150Centric Parts — 320.35150CRaybestos Brakes — 981775Raybestos Brakes — 981775FZNRaybestos Brakes — 981775RStopTech — 126.35150CSLStopTech — 126.35150CSRStopTech — 126.35150SLStopTech — 126.35150SR120.35150127.35150L127.35150R40206HG00A402065DH0A402065DL0A921598RGS2464212612246421261207BD180863EYH511389YH511389CYH511389P
