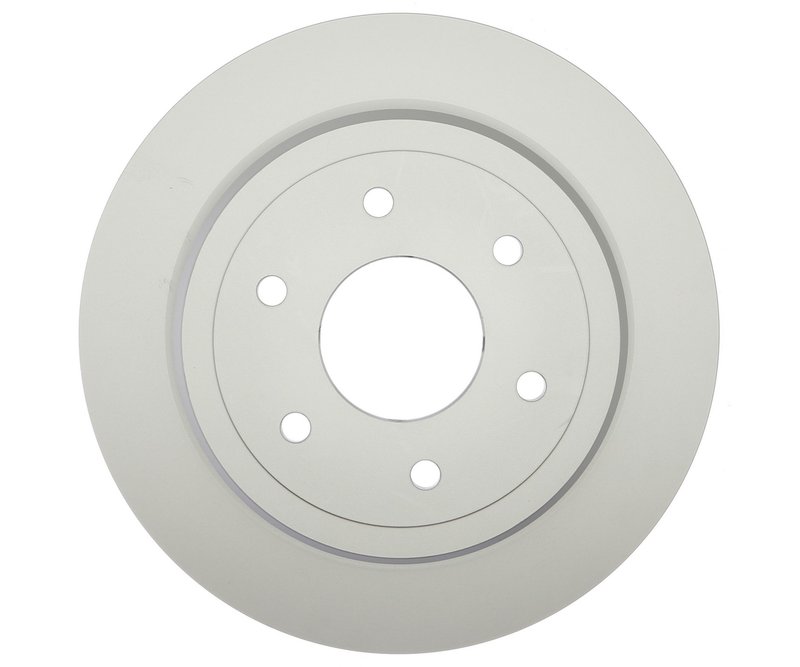

Raybestos 982036 Disc Brake Rotor - Rear

Overview of Raybestos 982036 Disc Brake Rotor

The Raybestos Specialty - Truck; Coated Rotor 982036 is engineered for Nissan TITAN and TITAN XD models, providing reliable braking performance. Designed as a vented disc brake rotor, it offers efficient heat dissipation and consistent stopping power for heavy-duty truck applications.

• Compatible with Nissan TITAN and TITAN XD
• Vented disc brake rotor design for improved cooling
• Coated surface to resist corrosion and extend rotor life
• Nominal thickness of 1.181 inches (30.000 mm) with discard thickness at 1.122 inches (28.500 mm)
• Overall height of 3.591 inches (91.200 mm) and outside diameter of 14.358 inches (364.700 mm)
• Six mounting bolt holes with a bolt circle diameter of 5.500 inches (139.700 mm)
• Smooth surface type for consistent pad contact

Detailed Product Specifications

This Raybestos disc brake rotor (part number 982036) features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade under heavy loads. The rotor's nominal thickness measures 1.181 inches (30.000 mm), with a discard thickness of 1.122 inches (28.500 mm), ensuring clear service limits for safe operation. The rotor's outside diameter is 14.358 inches (364.700 mm), and it has an overall height of 3.591 inches (91.200 mm), dimensions that align precisely with Nissan TITAN and TITAN XD brake systems.

The rotor includes six mounting bolt holes with a bolt hole diameter of 0.575 inches (14.600 mm) and a bolt circle diameter of 5.500 inches (139.700 mm), matching OEM specifications. The smooth surface type promotes even brake pad wear and consistent braking performance. Additionally, the coated rotor surface helps prevent rust and corrosion, extending the rotor's service life in demanding environments.

Raybestos Specialty - Truck; Coated Rotor Product Line

The Specialty - Truck; Coated Rotor line by Raybestos is designed specifically for truck applications requiring durable, corrosion-resistant rotors. This product line focuses on providing rotors with protective coatings to combat rust and maintain structural integrity over time. The 982036 rotor fits within this line by offering a vented, coated design optimized for Nissan TITAN and TITAN XD trucks, supporting reliable braking under heavy-duty conditions.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan TITAN and TITAN XD
• Addresses brake fade caused by overheating during heavy towing or hauling
• Prevents corrosion-related rotor damage in harsh weather conditions
• Restores smooth braking performance and reduces brake noise
• Ensures proper rotor thickness for safe braking operation

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it meets minimum discard thickness
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to maintain optimal braking
• Perform a bed-in procedure after installation to ensure proper rotor and pad contact

Quality Assurance and Warranty

Raybestos disc brake rotors, including part number 982036, are manufactured to meet or exceed OEM standards for fit, form, and function. The coated rotor surface provides added protection against corrosion, contributing to long-term durability. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship, supporting confidence in product reliability.
