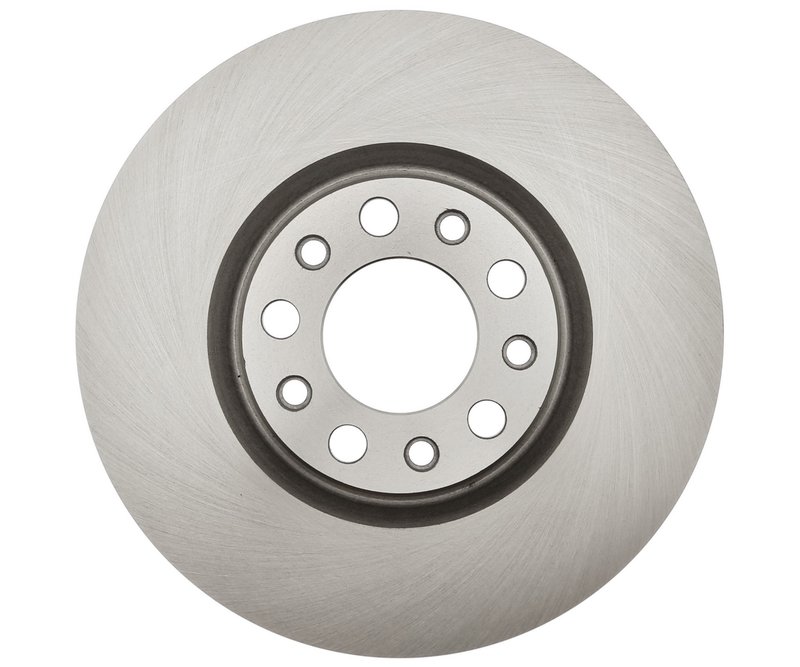

Raybestos 982043R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 982043R

The Raybestos R-Line Disc Brake Rotor 982043R is engineered for reliable braking performance on select Chrysler, Dodge, Fiat, and Jeep vehicles. Designed as a vented, conventional rotor, it offers consistent heat dissipation and durability for models like the 200, 500X, Compass, Dart, and Renegade.

• Vented disc brake rotor with smooth surface finish
• Overall diameter of 12.008 inches (305 mm) for optimal fitment
• Nominal thickness of 1.102 inches (28 mm) with discard thickness at 1.024 inches (26 mm)
• Five mounting bolt holes with a 4.331 inch (110 mm) bolt circle diameter
• Center hole diameter of 2.756 inches (70 mm) for precise hub alignment
• Compatible with 5 stud/lug hole configurations
• Overall height of 1.563 inches (39.7 mm) ensuring proper caliper clearance

Raybestos R-Line Product Line Details

The R-Line series from Raybestos focuses on delivering dependable replacement brake components that meet or exceed OEM specifications. This line emphasizes quality materials and manufacturing processes to provide rotors that maintain consistent thickness and structural integrity under normal driving conditions. The 982043R rotor exemplifies these standards with its vented design and precise dimensional tolerances, suitable for a range of Chrysler, Dodge, Fiat, and Jeep vehicles.

Technical Specifications and Features

This disc brake rotor features a vented design that improves heat dissipation during braking, reducing the risk of brake fade. The smooth surface finish ensures even pad contact and wear. With a nominal thickness of 1.102 inches (28 mm) and a discard thickness of 1.024 inches (26 mm), the rotor provides a clear service life indicator. The 5-bolt mounting pattern with a 4.331 inch (110 mm) bolt circle diameter and 0.657 inch (16.7 mm) bolt hole diameter ensures compatibility with specified vehicle hubs. The rotor’s overall height of 1.563 inches (39.7 mm) supports proper caliper fitment and brake system function.

Compatible Vehicles and Applications

• Chrysler 200
• Dodge 500X
• Jeep Compass
• Dodge Dart
• Jeep Renegade

This rotor is designed specifically for these models, ensuring proper fit and performance when replacing worn or damaged rotors.

Common Issues Addressed by Raybestos 982043R Rotor

• Brake pulsation caused by warped rotors
• Reduced braking efficiency due to rotor wear below discard thickness
• Overheating and brake fade from insufficient heat dissipation
• Uneven brake pad wear from surface irregularities
• Noise and vibration related to rotor surface defects

Installation Notes and Tips

When installing the Raybestos R-Line 982043R rotor, ensure the hub surface is clean and free of rust or debris to promote proper rotor seating. Verify the rotor thickness before installation to confirm it meets minimum specifications. Use the correct torque settings on the 5 mounting bolts to avoid rotor distortion. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet stringent quality standards, ensuring consistent performance and durability. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms related to part number 982043R.
