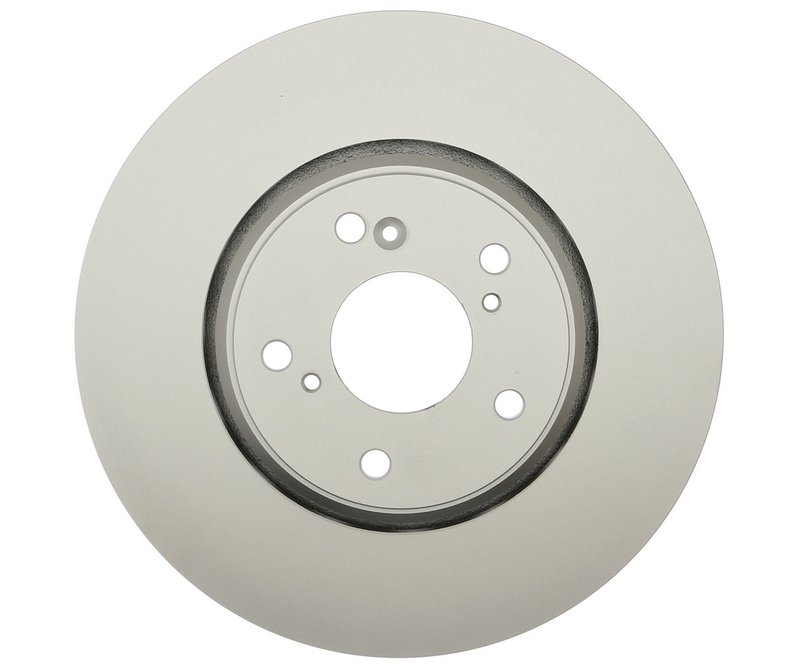

Raybestos 982055FZN Disc Brake Rotor - Front
| Brand | Raybestos 982055FZN |
|---|---|
| Position | Front |
| Center Hole Diameter | 2.528 |
| Center Hole Diameter | 64.200 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.906 |
| Discard Thickness | 23.000 |
| Inside Diameter | 7.402 |
| Inside Diameter | 188.000 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Diameter | 0.500 |
| Mounting Bolt Hole Diameter | 12.700 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 |
| Nominal Thickness | 25.000 |
| Outside Diameter | 12.283 |
| Outside Diameter | 312.000 |
| Overall Height | 1.858 |
| Overall Height | 47.200 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Product line | Element3; Coated Rotor |
| Fits | Acura and Honda · 15 vehicles |
Coated rotor. Helps resist corrosion for a cleaner, longer-lasting finish.
Vented design. Promotes airflow to help manage heat during braking.
Smooth surface. Provides consistent contact for dependable braking performance.
Cross-references Centric Parts 120.40094, Centric Parts 121.40094 and Centric Parts 320.40094 for the same application. See all 27.
Front Brake Rotor for Acura and Honda
Raybestos Element3 Coated Rotor 982055FZN is a front disc brake rotor built for select Acura and Honda applications. With a vented, conventional design and a smooth surface, it is sized for direct replacement use on the listed vehicles, including Honda Civic, Honda Accord, and Acura ILX front brake positions.
Key Features
- Raybestos Element3 coated rotor design for front brake service
- Vented, conventional disc brake rotor construction
- Smooth surface type for consistent pad contact
- Outside diameter: 12.283 in. / 312.0 mm
- Nominal thickness: 0.984 in. / 25.0 mm
- Discard thickness: 0.906 in. / 23.0 mm
- Center hole diameter: 2.528 in. / 64.2 mm
- 5-lug mounting pattern with 4.500 in. bolt circle
- Overall height: 1.858 in. / 47.2 mm
Product Details
The Raybestos Element3 Coated Rotor line is built for drivers who need a front brake rotor with the correct dimensions and fitment for the application. Part number 982055FZN matches the listed Acura ILX, Honda Civic, and Honda Accord front positions, and its vented rotor design supports heat management during repeated braking. The coated finish helps protect the rotor surface in everyday service, while the smooth face supports even pad contact. This part cross-references Centric Parts (e.g., 120.40094) for the same application.
Common Brake Issues This Rotor Can Address
- Front brake pulsation caused by worn or out-of-spec rotors
- Uneven pad contact from a damaged or scored rotor surface
- Brake noise related to rotor wear or surface irregularities
- Reduced braking performance from a rotor below discard thickness
- Corrosion on exposed rotor surfaces in daily driving conditions
Installation Notes and Fitment
- Fits 2017-2022 Acura ILX, front
- Fits 2017-2020 Honda Civic, front
- Fits 2016-2017 Honda Accord, front
Before installation, confirm rotor dimensions, hub condition, and pad compatibility against the vehicle’s front brake specification. Part number 982055FZN is intended for the listed front applications only, including Honda Civic front brake rotor replacement and Acura ILX front brake service.
Quality Assurance
Raybestos Element3 coated rotors are engineered to meet the dimensional requirements shown here, including thickness, diameter, bolt pattern, and center bore. Verify all measurements and vehicle fitment before installation to ensure proper brake system service.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Acura | ILX | — | Front | Element3; Coated Rotor |
| 2021 | Acura | ILX | — | Front | Element3; Coated Rotor |
| 2020 | Acura | ILX | — | Front | Element3; Coated Rotor |
| 2020 | Honda | Civic | Si | Front | Element3; Coated Rotor |
| 2019 | Acura | ILX | — | Front | Element3; Coated Rotor |
| 2019 | Honda | Civic | Si | Front | Element3; Coated Rotor |
| 2018 | Acura | ILX | — | Front | Element3; Coated Rotor |
| 2018 | Honda | Civic | Si | Front | Element3; Coated Rotor |
| 2017 | Acura | ILX | — | Front | Element3; Coated Rotor |
| 2017 | Honda | Accord | Touring | Front | Element3; Coated Rotor |
| 2017 | Honda | Accord | Sport | Front | Element3; Coated Rotor |
| 2017 | Honda | Accord | Sport Special Edition | Front | Element3; Coated Rotor |
| 2017 | Honda | Civic | Si | Front | Element3; Coated Rotor |
| 2016 | Honda | Accord | Touring | Front | Element3; Coated Rotor |
| 2016 | Honda | Accord | Sport | Front | Element3; Coated Rotor |
| No rows match your filter. | |||||
