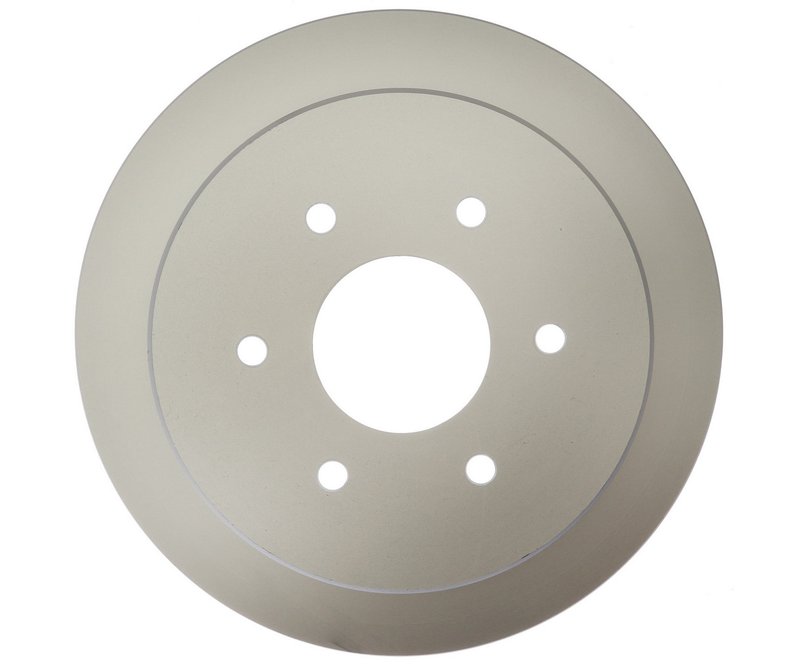

Raybestos 982078 Disc Brake Rotor - Rear

Overview of Raybestos 982078 Disc Brake Rotor

The Raybestos Specialty - Truck; Coated Rotor 982078 is engineered for Nissan TITAN and TITAN XD models, providing reliable braking performance. This vented disc brake rotor is designed to meet the demands of truck applications with precise fitment and durable construction.

• Compatible with Nissan TITAN and TITAN XD
• Part number 982078 for exact replacement
• Vented rotor design for improved heat dissipation
• Coated surface to resist corrosion
• 6 mounting bolt holes for secure installation
• Nominal thickness of 0.787 inches (20.000 mm)
• Discard thickness at 0.709 inches (18.000 mm)
• Overall height of 2.740 inches (69.600 mm)
• Outside diameter of 13.583 inches (345.000 mm)
• Smooth surface type for consistent pad contact

Raybestos Specialty - Truck; Coated Rotor Product Line

The Specialty - Truck; Coated Rotor line by Raybestos focuses on heavy-duty truck applications requiring enhanced durability and corrosion resistance. The coating on the rotor surface helps extend service life by protecting against rust, which is critical for trucks like the Nissan TITAN and TITAN XD that often operate in demanding environments. This product line balances performance and longevity, making it suitable for professional and fleet use.

Technical Specifications and Features

This disc brake rotor features a vented design that improves heat dissipation during braking, reducing the risk of brake fade under heavy loads. The nominal thickness of 0.787 inches (20.000 mm) ensures structural integrity, while the discard thickness of 0.709 inches (18.000 mm) indicates when the rotor should be replaced to maintain safe braking performance. The rotor’s outside diameter measures 13.583 inches (345.000 mm), and it includes six mounting bolt holes with a bolt circle diameter of 5.496 inches (139.600 mm), ensuring a precise fit on Nissan TITAN and TITAN XD models. The smooth surface type promotes even pad wear and consistent braking feel.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan TITAN and TITAN XD
• Addresses brake noise caused by uneven rotor surfaces
• Solves vibration issues during braking due to rotor thickness variation
• Prevents corrosion-related rotor damage in harsh environments
• Improves heat management to reduce brake fade on heavy loads

Installation Notes and Tips

• Verify compatibility with Nissan TITAN or TITAN XD before installation
• Check rotor thickness and replace if below discard thickness of 0.709 inches (18.000 mm)
• Ensure mounting surfaces are clean and free of debris for proper fit
• Tighten mounting bolts to manufacturer torque specifications
• Inspect brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Raybestos disc brake rotors undergo rigorous quality control to meet industry standards for durability and performance. The Specialty - Truck; Coated Rotor line is manufactured to provide consistent braking characteristics and corrosion resistance. Warranty coverage details should be confirmed with the product documentation or supplier, as it may vary by region and application.
