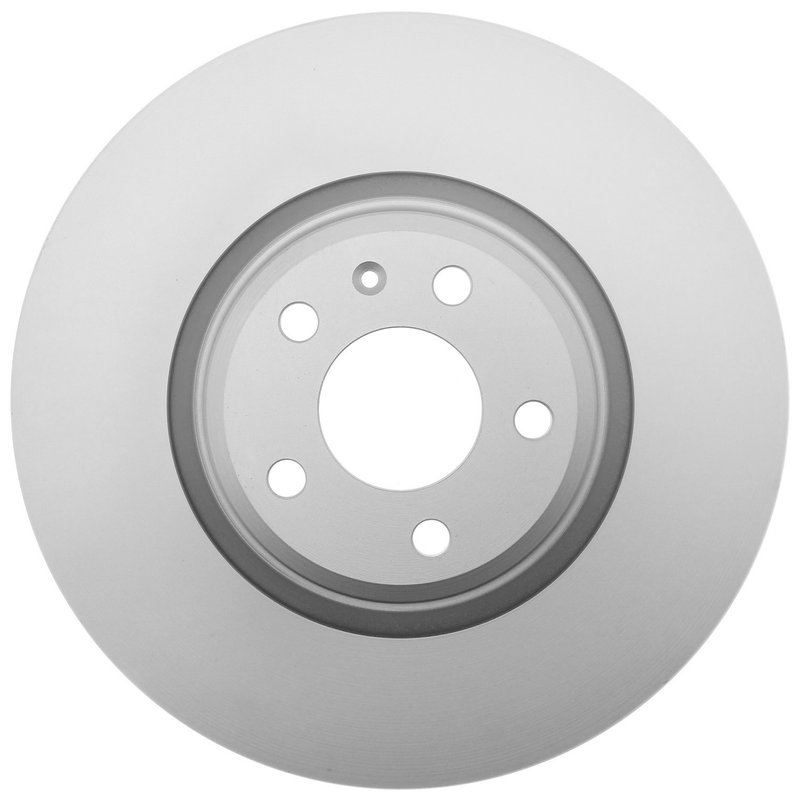

Raybestos 982153FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Audi Vehicles

The Raybestos Element 3 Disc Brake Rotor 982153FZN is engineered to provide consistent braking performance for a range of Audi models. Designed with durable cast iron and a vented rotor structure, this part ensures effective heat dissipation and long-lasting service life.

• Constructed from high-quality cast iron for durability
• Vented rotor design to improve heat dissipation
• Nominal thickness of 1.339 inches (34 mm) with discard thickness at 1.26 inches (32 mm)
• Overall height of 2.248 inches (57.1 mm) for precise fitment
• Outside diameter measures 13.748 inches (349.2 mm)
• Five mounting bolt holes with a 4.409 inch (112 mm) bolt circle diameter
• Smooth surface type for consistent braking contact
• Compatible with multiple Audi models including A4 allroad, Q5, S5 Sportback, and more

About the Raybestos Element 3 Product Line

The Raybestos Element 3 line focuses on delivering reliable braking components that meet or exceed OEM specifications. This product line emphasizes quality materials and precise manufacturing to ensure rotors like the 982153FZN provide stable performance and durability under normal driving conditions. The Element 3 rotors are designed to maintain consistent thickness and structural integrity, supporting safe braking for Audi vehicles.

Detailed Product Description

This disc brake rotor features a vented design that helps reduce heat buildup during braking, which is critical for maintaining braking efficiency and preventing rotor warping. The cast iron material offers a balance of strength and thermal conductivity. With a smooth surface finish, the rotor ensures even pad contact and wear. The rotor’s dimensions, including a 13.748 inch outside diameter and 2.248 inch overall height, are tailored for precise fitment on Audi models such as the A6 allroad, Q7, and S8. The 5-bolt mounting pattern with a 4.409 inch bolt circle diameter matches factory specifications for secure installation.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for improved heat management
• Resolving uneven brake pad wear due to rotor surface irregularities
• Addressing reduced braking performance from rotor thickness below discard limits
• Ensuring compatibility with ABS systems on supported Audi models (note: this rotor does not include an ABS tone ring)

Installation Notes and Tips

Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness is above the discard thickness of 1.26 inches (32 mm) to maintain safe braking performance. Use the correct torque specifications for the 5 mounting bolts to avoid rotor distortion. This rotor is designed for conventional mounting and does not include bearings or an ABS tone ring, so confirm compatibility with your vehicle’s braking system.

Quality Assurance and Warranty

Raybestos Element 3 rotors are manufactured to meet industry standards for material quality and dimensional accuracy. While specific warranty details for part number 982153FZN are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or manufacturer for exact warranty terms.
