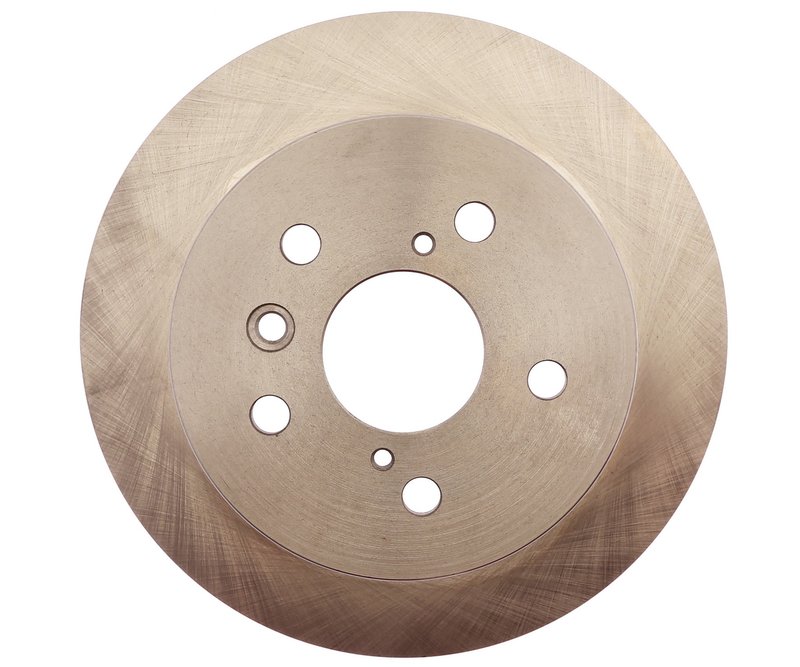

Raybestos 982285R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 982285R

The Raybestos R-Line Disc Brake Rotor 982285R is engineered for Toyota Camry models requiring reliable braking performance. This solid, smooth-surface rotor is designed to meet precise fitment specifications, ensuring consistent stopping power and durability.

• Compatible with Toyota Camry vehicles
• Part number 982285R for exact replacement
• Solid disc brake rotor with smooth surface finish
• Overall height: 2.087 inches (53.000 mm)
• Outside diameter: 11.063 inches (281.000 mm)
• Inside diameter: 7.579 inches (192.500 mm)
• Mounting bolt hole quantity: 5 with 0.575 inch (14.600 mm) diameter
• Nominal thickness: 0.390 inches (9.900 mm), discard thickness: 0.335 inches (8.500 mm)
• Center hole diameter: 2.441 inches (62.000 mm)
• Mounting bolt hole circle diameter: 4.500 inches (114.300 mm)
• Conventional rotor type with 5 stud/lug holes

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet OEM specifications. This product line emphasizes precise engineering and consistent quality, making the 982285R rotor a suitable choice for Toyota Camry owners seeking a direct-fit replacement part that maintains factory performance standards.

Technical Specifications and Features

This disc brake rotor features a solid design with a smooth surface type, which supports even pad wear and effective heat dissipation. The nominal thickness of 0.390 inches (9.900 mm) and discard thickness of 0.335 inches (8.500 mm) provide clear service limits for maintenance. The rotor’s outside diameter of 11.063 inches (281.000 mm) and inside diameter of 7.579 inches (192.500 mm) ensure compatibility with the Camry’s braking system. The mounting bolt hole circle diameter of 4.500 inches (114.300 mm) and five mounting bolt holes with a diameter of 0.575 inches (14.600 mm) align with the vehicle’s hub assembly for secure installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below discard limits to restore braking efficiency
• Resolving uneven brake pad wear due to rotor surface imperfections
• Eliminating noise and vibration from damaged or scored rotors
• Upgrading to OEM-spec rotors for consistent braking performance on Toyota Camry

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and hardware during rotor replacement for optimal system performance
• Use proper tools to avoid damage to rotor surface and mounting holes

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards, providing reliable braking performance for Toyota Camry vehicles. The 982285R rotor undergoes rigorous quality control to ensure dimensional accuracy and material integrity. Warranty coverage details should be confirmed with the product documentation or supplier.
