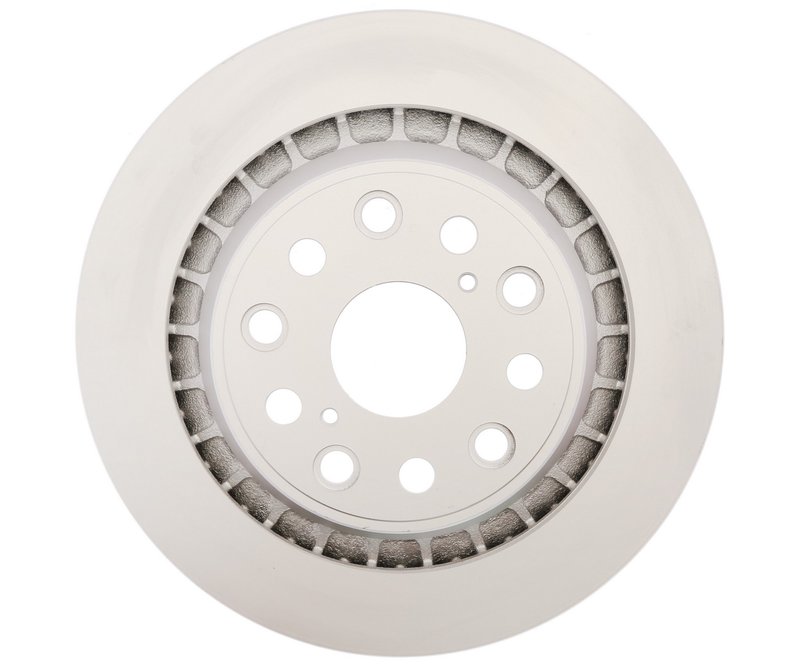

Raybestos 982341 Disc Brake Rotor - Rear Left
| Brand | Raybestos 982341 |
|---|---|
| Position | Rear Left |
| Center Hole Diameter | 2.441 |
| Center Hole Diameter | 62.000 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.906 |
| Discard Thickness | 23.000 |
| Inside Diameter | 9.370 |
| Inside Diameter | 238.000 |
| Mounting Bolt Hole Circle Diameter | 4.724 |
| Mounting Bolt Hole Circle Diameter | 120.000 |
| Mounting Bolt Hole Diameter | 0.650 |
| Mounting Bolt Hole Diameter | 16.500 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 |
| Nominal Thickness | 25.000 |
| Outside Diameter | 13.189 |
| Outside Diameter | 335.000 |
| Overall Height | 2.618 |
| Overall Height | 66.500 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Product line | Specialty - Street Performance; Coated Rotor |
| Fits | Toyota and Lexus · 20 vehicles |
Coated rotor. Helps resist corrosion for a cleaner look and longer service life.
Vented design. Promotes airflow to help manage heat during braking.
Smooth surface. Provides consistent contact for dependable braking performance.
Cross-references 120.44210, 121.44210 and 4243250020 for the same application. See all 3.
Raybestos Rear Left Coated Rotor for Lexus and Toyota
Raybestos part 982341 is a vented disc brake rotor built for rear left applications on select Lexus and Toyota vehicles. It features a smooth surface, coated finish, and conventional rotor design for a direct-fit brake service replacement.
- Part number 982341
- Brand line: Specialty - Street Performance; Coated Rotor
- Vented, conventional disc brake rotor
- Smooth surface type
- Outside diameter: 13.189 in. / 335.000 mm
- Nominal thickness: 0.984 in. / 25.000 mm
- Discard thickness: 0.906 in. / 23.000 mm
- Overall height: 2.618 in. / 66.500 mm
- Center hole diameter: 2.441 in. / 62.000 mm
- 5 lug holes with 5-bolt pattern
- Bolt circle diameter: 4.724 in. / 120.000 mm
Street Performance Rotor Details
The Raybestos Specialty - Street Performance line focuses on brake components for drivers who want a service replacement with performance-oriented construction. This coated rotor is specified as a rear left application and uses a vented, smooth-face design to match the listed Lexus LS500, Lexus LS500h, Lexus LC500, and Toyota Mirai fitments. This part number 982341 also cross-references 120.44210 and 121.44210 for the same application.
Vehicle Fitment
- Fits 2024 Lexus LC500, rear left.
- Fits 2022-2024 Lexus LS500, rear left.
- Fits 2021-2024 Lexus LS500h, rear left.
- Fits 2023-2024 Toyota Mirai, rear left.
- Fits 2020 Toyota Mirai, rear left.
- Fits 2021-2022 Toyota Mirai, rear left.
- Fits 2018-2021 Lexus LS500, rear left.
- Fits 2018-2020 Lexus LS500h, rear left.
What This Rotor Helps Address
- Rear brake rotor wear from normal pad contact and heat cycling
- Brake pulsation caused by rotor thickness variation or surface irregularity
- Reduced braking consistency from a worn or scored rear rotor
- Corrosion on the rotor hat and non-friction surfaces
- Service replacement needs for rear left brake maintenance on listed Lexus and Toyota models
Installation Notes and Tips
Confirm rotor dimensions, bolt pattern, and rear left position before installation. Inspect pads, caliper hardware, and hub condition during brake service, and clean the hub mounting surface so the rotor seats evenly. Verify the rotor surface is free of packing residue before assembly and follow the vehicle manufacturer’s brake service procedure.
Quality Assurance
Raybestos brake components are built to published dimensional specifications for the listed applications. Part 982341 is identified as a coated rotor in the Specialty - Street Performance line and is cataloged for direct fitment on the vehicles shown above.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Lexus | LC500 | Base | — | Rear Left | Raybestos Specialty - Street Performance |
| 2024 | Lexus | LS500 | — | — | Rear Left | Raybestos Specialty - Street Performance |
| 2024 | Lexus | LS500h | Base | AWD | Rear Left | Raybestos Specialty - Street Performance |
| 2024 | Toyota | Mirai | — | — | Rear Left | Raybestos Specialty - Street Performance |
| 2023 | Lexus | LS500 | Base | — | Rear Left | Raybestos Specialty - Street Performance |
| 2023 | Lexus | LS500h | — | — | Rear Left | Raybestos Specialty - Street Performance |
| 2023 | Toyota | Mirai | — | — | Rear Left | Raybestos Specialty - Street Performance |
| 2022 | Lexus | LS500 | Base | — | Rear Left | Raybestos Specialty - Street Performance |
| 2022 | Lexus | LS500h | — | — | Rear Left | Raybestos Specialty - Street Performance |
| 2022 | Toyota | Mirai | — | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2021 | Lexus | LS500 | Base | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2021 | Lexus | LS500h | — | — | Rear Left | Raybestos Specialty - Street Performance |
| 2021 | Toyota | Mirai | — | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2020 | Lexus | LS500 | Base | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2020 | Lexus | LS500h | — | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2020 | Toyota | Mirai | — | — | Rear Left | Raybestos Specialty - Street Performance |
| 2019 | Lexus | LS500 | Base | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2019 | Lexus | LS500h | Base | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2018 | Lexus | LS500 | Base | — | Rear Left | Specialty - Street Performance; Coated Rotor |
| 2018 | Lexus | LS500h | — | — | Rear Left | Specialty - Street Performance; Coated Rotor |
