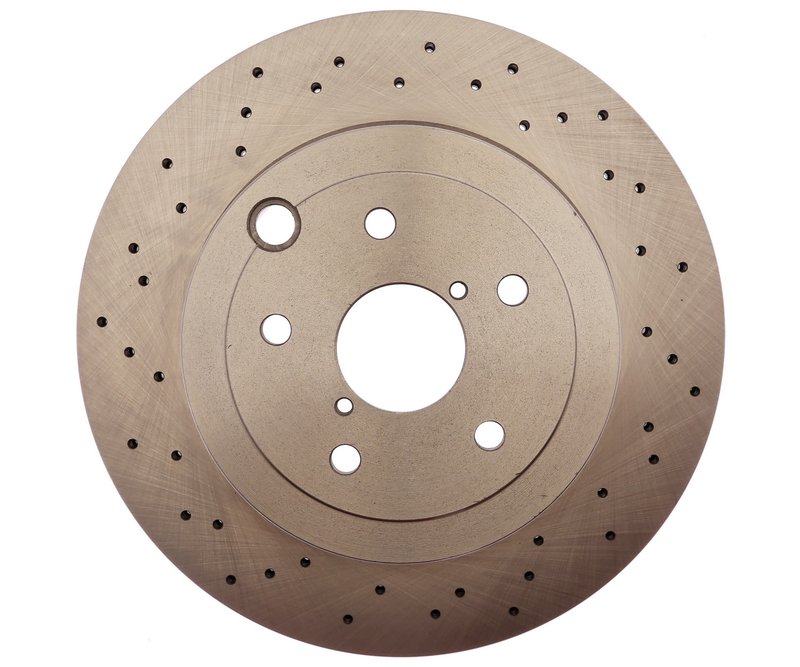

Raybestos 982433R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 982433R

The Raybestos R-Line Disc Brake Rotor 982433R is engineered for Subaru WRX and WRX STI models, providing reliable braking performance. Designed as a vented, conventional rotor, it balances heat dissipation and durability for consistent stopping power.

• Compatible with Subaru WRX and WRX STI vehicles
• Vented disc brake rotor for improved heat management
• Overall diameter: 326.0 mm (12.835 inches)
• Nominal thickness: 20.0 mm (0.787 inches)
• Discard thickness: 18.0 mm (0.709 inches)
• Mounting bolt hole quantity: 5 with 114.3 mm (4.5 inches) bolt circle diameter
• Smooth surface type for consistent pad contact
• Center hole diameter: 58.0 mm (2.283 inches)
• Overall height: 63.4 mm (2.496 inches)

Detailed Product Description

This Raybestos R-Line rotor (part number 982433R) is a vented, conventional disc brake rotor designed specifically for Subaru WRX and WRX STI models. The vented design enhances cooling by allowing air to flow between the rotor surfaces, reducing the risk of brake fade during aggressive driving or heavy braking conditions. The rotor features a smooth surface type, ensuring even brake pad wear and consistent braking performance.

With an outside diameter of 326 mm and a nominal thickness of 20 mm, this rotor meets OEM specifications for fit and function. The discard thickness of 18 mm indicates the minimum safe thickness before replacement is necessary, helping maintain braking safety. The rotor mounts with five bolts on a 114.3 mm bolt circle diameter, matching Subaru factory specifications for secure installation.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components for a range of vehicles. This line emphasizes durability and consistent performance, making it suitable for daily driving and moderate performance applications. The 982433R rotor fits within this line by providing a vented, conventional rotor design that meets Subaru WRX and WRX STI braking requirements without unnecessary complexity.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Improves heat dissipation to reduce brake fade during spirited driving
• Restores proper rotor thickness for safe braking performance
• Eliminates uneven pad wear due to rotor surface imperfections
• Compatible upgrade for Subaru WRX and WRX STI brake systems

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean rotor surface to remove any protective coatings before mounting
• Torque mounting bolts to Subaru factory specifications for safety
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Check wheel hub surface for rust or debris to ensure proper rotor seating

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards for fit, form, and function. Each rotor undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Refer to Raybestos documentation for exact warranty terms related to part number 982433R.
