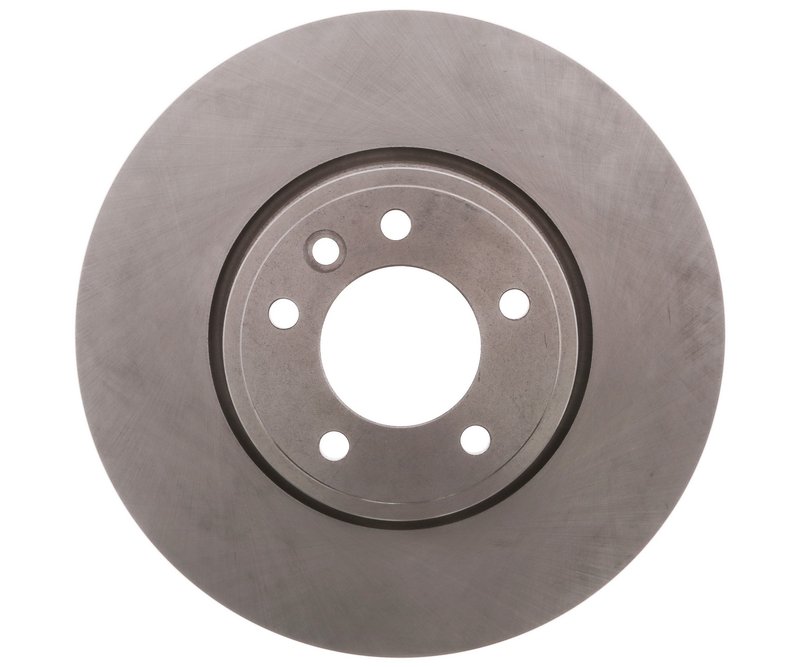

Raybestos 982438R Disc Brake Rotor - Front
| Brand | Raybestos 982438R |
|---|---|
| Position | Front |
| Center Hole Diameter | 3.110 |
| Center Hole Diameter | 79.000 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.260 |
| Discard Thickness | 32.000 |
| Inside Diameter | 7.953 |
| Inside Diameter | 202.000 |
| Mounting Bolt Hole Circle Diameter | 4.724 |
| Mounting Bolt Hole Circle Diameter | 120.000 |
| Mounting Bolt Hole Diameter | 0.571 |
| Mounting Bolt Hole Diameter | 14.500 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.339 |
| Nominal Thickness | 34.000 |
| Outside Diameter | 13.740 |
| Outside Diameter | 349.000 |
| Overall Height | 2.437 |
| Overall Height | 61.900 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.571 |
| Stud/Lug Hole Diameter | 14.500 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Product line | R-Line |
| Fits | Land Rover · 22 vehicles |
Vented design. Helps air flow through the rotor for more consistent braking performance.
Smooth surface. Provides a clean contact area for dependable pad engagement.
Conventional rotor. A straightforward brake rotor design for familiar service and replacement.
Cross-references Centric Parts 120.22030, 121.22030 and 922321RGS for the same application. See all 5.
Raybestos R-Line Front Brake Rotor for Land Rover
The Raybestos R-Line 982438R is a front disc brake rotor built for select Land Rover Discovery, Range Rover, and Range Rover Sport applications. It features a vented, smooth-surface design with OE-style dimensions for direct replacement service on listed vehicles.
Key Features
- Part number: 982438R
- Raybestos R-Line brake rotor for front axle applications
- Vented, conventional disc brake rotor construction
- Smooth surface type for consistent pad contact
- Outside diameter: 349 mm (13.740 in.)
- Nominal thickness: 34.000 mm (1.339 in.)
- Discard thickness: 32.000 mm (1.260 in.)
- Center hole diameter: 79.000 mm (3.110 in.)
- 5-lug mounting pattern with 120.000 mm bolt circle diameter
- Overall height: 61.900 mm (2.437 in.)
Detailed Description
Raybestos R-Line focuses on direct-fit brake service parts for everyday repair work, and the 982438R follows that approach with a vented front rotor sized to match the listed Land Rover platforms. This rotor is specified for 2021-2025 Land Rover Discovery front, 2021-2022 Land Rover Range Rover front from chassis # JA000001, 2022 Land Rover Range Rover Sport front to chassis # NA799999, 2021 Land Rover Range Rover Sport front, 2018-2020 Land Rover Discovery front, 2020 Land Rover Range Rover front with 349 mm rotor diameter, 2018-2020 Land Rover Range Rover Sport front, 2019 Land Rover Range Rover front, and 2018 Land Rover Range Rover front with 350 mm front disc.
This part cross-references Centric Parts 120.22030 for the same application.
What It Helps Address
- Brake pulsation caused by a worn or below-spec front rotor
- Reduced braking consistency from uneven rotor wear
- Noise and vibration associated with rotor surface damage
- Service replacement needs on Land Rover Discovery, Range Rover, and Range Rover Sport front brakes
- Rotor thickness loss approaching discard specifications
Installation Notes and Tips
Confirm rotor diameter, center hole size, bolt pattern, and chassis breakpoints before ordering. This rotor is for front position use only and should be matched to the vehicle’s listed year, model, and chassis note where applicable. Inspect pads, caliper condition, and hub mounting surfaces during brake service to help ensure proper rotor seating and even braking performance.
Quality Assurance
Raybestos R-Line brake components are built to meet the dimensional requirements needed for direct replacement service on the specified Land Rover applications. The 982438R is engineered around OE-style fitment details, including vented construction and the listed thickness and diameter specifications, to support accurate brake maintenance on the vehicles shown.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2025 | Land Rover | Discovery | — | — | — | — | Front | Raybestos R-Line |
| 2024 | Land Rover | Discovery | — | — | — | — | Front | Raybestos R-Line |
| 2023 | Land Rover | Discovery | — | — | — | — | Front | Raybestos R-Line |
| 2022 | Land Rover | Discovery | — | — | — | — | Front | Raybestos R-Line |
| 2022 | Land Rover | Range Rover | — | 5.0L | V8 | — | Front | From Chassis # JA000001; Raybestos R-Line |
| 2022 | Land Rover | Range Rover Sport | — | — | — | — | Front | To Chassis # NA799999; Raybestos R-Line |
| 2021 | Land Rover | Discovery | — | — | — | — | Front | Raybestos R-Line |
| 2021 | Land Rover | Range Rover | — | — | — | — | Front | From Chassis # JA000001; Raybestos R-Line |
| 2021 | Land Rover | Range Rover Sport | HSE Silver Edition | — | — | DIESEL | Front | Raybestos R-Line |
| 2020 | Land Rover | Discovery | — | — | — | DIESEL | Front | R-Line |
| 2020 | Land Rover | Range Rover | — | — | — | — | Front | Rotor Diameter 349mm; R-Line |
| 2020 | Land Rover | Range Rover Sport | SE | — | — | DIESEL | Front | R-Line |
| 2020 | Land Rover | Range Rover Sport | HSE | — | — | DIESEL | Front | R-Line |
| 2019 | Land Rover | Discovery | — | — | — | DIESEL | Front | R-Line |
| 2019 | Land Rover | Range Rover | Base | — | — | — | Front | R-Line |
| 2019 | Land Rover | Range Rover | HSE | — | — | — | Front | R-Line |
| 2019 | Land Rover | Range Rover Sport | SE | — | — | DIESEL | Front | R-Line |
| 2019 | Land Rover | Range Rover Sport | HSE | — | — | DIESEL | Front | R-Line |
| 2018 | Land Rover | Discovery | — | — | — | DIESEL | Front | R-Line |
| 2018 | Land Rover | Range Rover | — | 3.0L | V6 | DIESEL | Front | 350mm Front Disc; Raybestos R-Line |
| 2018 | Land Rover | Range Rover Sport | SE | — | — | DIESEL | Front | R-Line |
| 2018 | Land Rover | Range Rover Sport | HSE | — | — | DIESEL | Front | R-Line |
