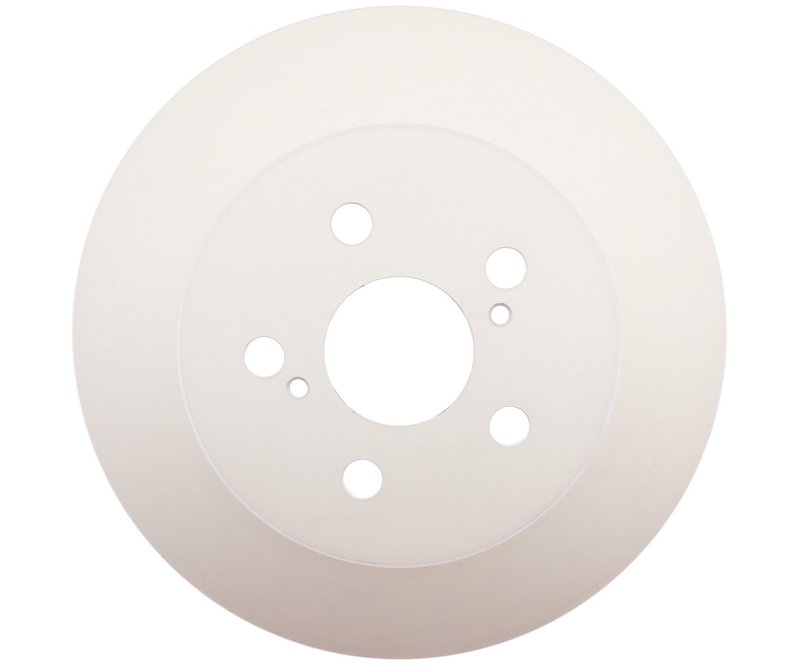

Raybestos 982494FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor for Toyota Corolla

The Raybestos Element3; Coated Rotor 982494FZN is engineered for reliable braking performance on Toyota Corolla models. This disc brake rotor features a solid, smooth surface design optimized for consistent stopping power and durability.

• Compatible with Toyota Corolla vehicles
• Part number 982494FZN for precise identification
• Solid disc brake rotor with smooth surface type
• Coated finish for corrosion resistance
• 5 mounting bolt holes with 100 mm bolt circle diameter
• Nominal thickness of 10.000 mm and discard thickness of 8.500 mm
• Outside diameter of 265.000 mm and inside diameter of 176.500 mm
• Overall height of 37.800 mm

Detailed Product Specifications

This Raybestos disc brake rotor is designed as a conventional solid rotor with a smooth braking surface, ensuring even pad contact and heat dissipation. The rotor measures 265 mm in outside diameter and 176.5 mm inside diameter, fitting the Toyota Corolla's brake assembly precisely. It includes five mounting bolt holes with a 100 mm bolt circle diameter and 14.5 mm bolt hole diameter, matching factory specifications. The nominal thickness is 10.000 mm, with a discard thickness of 8.500 mm, indicating when replacement is necessary to maintain safe braking performance. The overall height of 37.8 mm supports proper rotor alignment and fitment.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos offers rotors with a protective coating that helps resist rust and corrosion, extending rotor life and maintaining braking efficiency. This coating is particularly beneficial for Toyota Corolla owners who drive in varied weather conditions, helping to preserve rotor integrity and appearance over time.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Corolla
• Addresses brake pulsation caused by uneven rotor surfaces
• Resolves noise issues such as squealing or grinding due to rotor wear
• Improves braking consistency and pedal feel
• Prevents corrosion-related rotor damage in humid or salty environments

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (8.500 mm) before installation
• Clean mounting surface to prevent rotor runout
• Torque mounting bolts to manufacturer specifications for secure fit
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Perform a bed-in procedure after installation for best braking results

Quality Assurance and Warranty

Raybestos disc brake rotors, including part number 982494FZN, are manufactured to meet or exceed OEM standards for fit, form, and function. The Element3; Coated Rotor line undergoes rigorous quality control to ensure durability and performance. Warranty coverage details should be confirmed with the product documentation or supplier.
