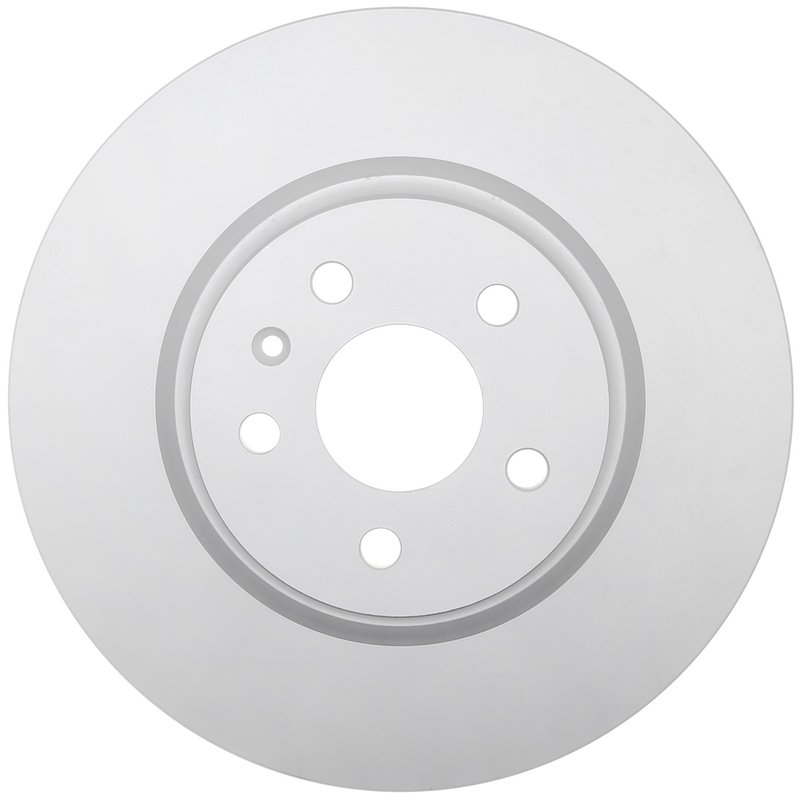

Raybestos 982507FZN Disc Brake Rotor - Front

Raybestos Element 3 Front Brake Rotor

The Raybestos Element 3 982507FZN is a front disc brake rotor built for Tesla applications that call for a 355 mm vented rotor with a smooth surface and full cast construction. It is engineered for direct replacement use on Tesla S and Tesla X front brake systems, including 2021 models built to 2/2021.

Key Features

• Part number: 982507FZN
• Raybestos Element 3 brake rotor for front axle applications
• Full cast construction for consistent braking performance
• Vented rotor design
• Smooth surface finish
• Outside diameter: 13.976 in. / 355 mm
• Nominal thickness: 1.268 in. / 32.2 mm
• Discard thickness: 1.181 in. / 30 mm
• 5-lug pattern with 5 mounting bolt holes
• Mounting bolt hole circle diameter: 120 mm / 4.724 in.
• Center hole diameter: 2.76 in. / 70.1 mm
• Overall height: 2.783 in. / 70.7 mm
• ABS tone ring not included
• Bearings not included

Product Details

Raybestos Element 3 rotors are positioned as a brake component line focused on replacement fitment and dimensional accuracy. This 982507FZN rotor uses a conventional, vented, full cast design with a smooth friction surface and regular grade type. For Tesla brake service, the listed dimensions and bolt pattern are the key identifiers: 355 mm outside diameter, 120 mm bolt circle, and a 5-lug mounting layout. This part cross-references Brembo 09.N265.21 for the same application.

Compatible with Tesla S and Tesla X front brake service, this rotor is listed for 2012-2020 Tesla S front, 2016-2020 Tesla X front, and 2021 Tesla S front and Tesla X front built to 2/2021. If you are searching for a Tesla S front brake rotor or a Tesla X front disc brake rotor, part number 982507FZN provides the specified fitment and dimensions.

Common Reasons for Replacement

• Brake pulsation from rotor thickness variation
• Scoring, grooves, or uneven rotor wear
• Reduced braking smoothness during front brake service
• Rotor thickness reaching discard specification
• Need for a direct replacement front rotor on Tesla S or Tesla X

Installation Notes and Tips

Verify rotor diameter, center hole, bolt circle, and thickness before installation. This rotor is for front position use only and does not include bearings or an ABS tone ring. Confirm 2021 Tesla S and Tesla X build date coverage, since the listing applies to vehicles built to 2/2021. Always inspect pads, caliper condition, and hub mating surfaces during brake service.

Quality Assurance

Raybestos Element 3 brake components are built to meet the dimensional and application requirements listed for this rotor. The 982507FZN is cataloged with OE-style fitment data for Tesla front brake service and is identified by its published specifications and interchange reference.
