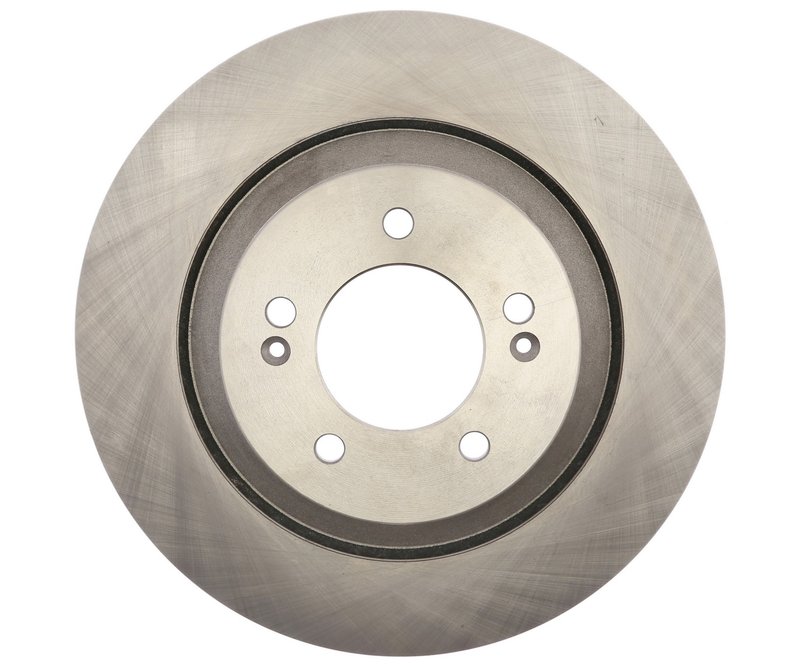

Raybestos 982564R Disc Brake Rotor - Rear
| Brand | Raybestos 982564R |
|---|---|
| Position | Rear |
| Center Hole Diameter | 2.992 |
| Center Hole Diameter | 76.000 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 |
| Discard Thickness | 18.000 |
| Inside Diameter | 8.406 |
| Inside Diameter | 213.500 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Diameter | 0.496 |
| Mounting Bolt Hole Diameter | 12.600 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 |
| Nominal Thickness | 20.000 |
| Outside Diameter | 12.362 |
| Outside Diameter | 314.000 |
| Overall Height | 1.299 |
| Overall Height | 33.000 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.496 |
| Stud/Lug Hole Diameter | 12.600 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Product line | R-Line |
| Fits | Hyundai · 10 vehicles |
Vented design. Helps move air through the rotor for more consistent braking performance.
Smooth surface. Provides a clean contact area for dependable pad engagement.
Conventional rotor. A straightforward brake rotor design for familiar service and replacement.
Cross-references Centric Parts 121.51061, 125.51061 and 70153DL for the same application. See all 3.
Rear Brake Rotor for Hyundai N Models
Raybestos R-Line 982564R is a rear disc brake rotor built for specific Hyundai N applications, including the Elantra N, Kona N, and Veloster N. It uses a vented, smooth-surface design with OE-style dimensions for direct replacement service on confirmed rear fitments.
Key Features
- Raybestos R-Line part number 982564R
- Rear disc brake rotor for select Hyundai performance models
- Vented rotor construction for rear brake applications
- Smooth surface type
- Outside diameter: 314.000 mm / 12.362 in
- Nominal thickness: 20.000 mm / 0.787 in
- Discard thickness: 18.000 mm / 0.709 in
- 5-lug pattern with 114.300 mm / 4.500 in bolt circle
- Center hole diameter: 76.000 mm / 2.992 in
- Overall height: 33.000 mm / 1.299 in
R-Line Product Line Details
Raybestos R-Line focuses on replacement brake components for everyday service and repair work. For this application, 982564R follows the dimensional requirements needed for rear brake rotor replacement on the listed Hyundai Elantra N, Kona N, and Veloster N models.
Detailed Description
This Raybestos brake rotor is engineered as a conventional vented rotor with a smooth friction surface and standard mounting geometry. The listed dimensions, including the 314 mm outside diameter, 20 mm nominal thickness, and 76 mm center hole, support accurate replacement on the specified rear axle applications. It cross-references Centric Parts 121.51061 for the same application.
What It Is Used For
- Rear rotor replacement on worn Hyundai Elantra N brake systems
- Rear brake service for Hyundai Kona N models
- Rear brake rotor replacement on Hyundai Veloster N vehicles
- Correction of rotor wear that has reached discard thickness
- Restoring proper brake contact surface on the rear axle
Installation Notes and Tips
- Verify rear axle fitment before ordering; this part is listed for 2022-2025 Hyundai Elantra N rear, 2023 Hyundai Kona N rear, 2022 Hyundai Kona N rear, and 2021-2022 Hyundai Veloster N rear.
- For 2019-2020 Hyundai Veloster N rear applications, confirm the vehicle has the Performance Package.
- Measure the existing rotor before installation and compare outside diameter, thickness, bolt circle, and center hole dimensions.
- Inspect pads, caliper condition, and hub mounting surfaces during rotor replacement.
Quality Assurance
Raybestos manufactures brake components for service replacement applications, and this rotor is built to match the listed fitment and dimensional requirements for the confirmed Hyundai N rear applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Hyundai | Elantra N | Rear | Raybestos R-Line |
| 2024 | Hyundai | Elantra N | Rear | Raybestos R-Line |
| 2023 | Hyundai | Elantra N | Rear | Raybestos R-Line |
| 2023 | Hyundai | Kona N | Rear | Raybestos R-Line |
| 2022 | Hyundai | Elantra N | Rear | Raybestos R-Line |
| 2022 | Hyundai | Kona N | Rear | R-Line |
| 2022 | Hyundai | Veloster N | Rear | R-Line |
| 2021 | Hyundai | Veloster N | Rear | R-Line |
| 2020 | Hyundai | Veloster N | Rear | Fits models with Performance Package.; R-Line |
| 2019 | Hyundai | Veloster N | Rear | Fits models with Performance Package.; R-Line |
