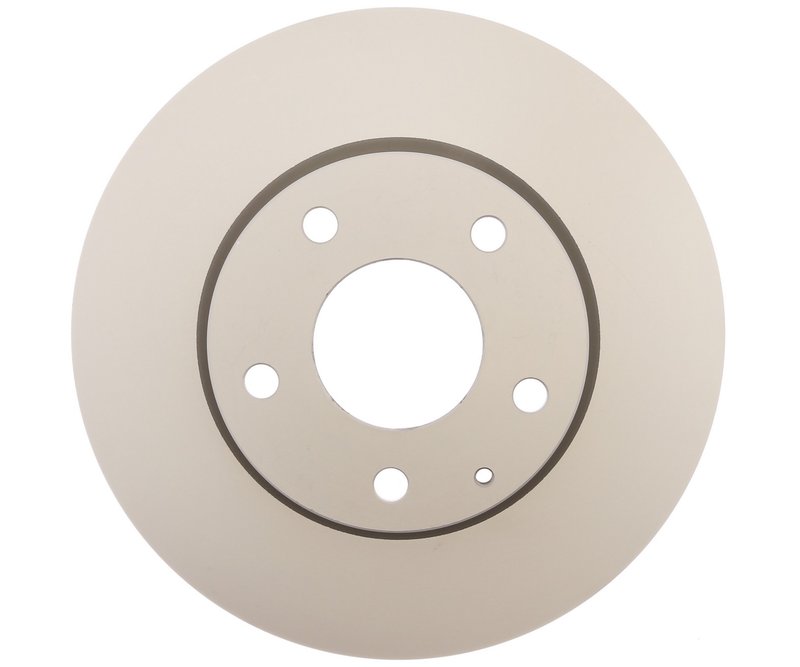

Raybestos 982612 Disc Brake Rotor - Front

Overview of Raybestos 982612 Disc Brake Rotor

The Raybestos Specialty - Street Performance; Coated Rotor 982612 is engineered for Mazda 3 vehicles requiring reliable braking performance. This vented, full cast disc brake rotor offers precise dimensions and durable construction to maintain consistent stopping power under street driving conditions.

• Compatible with Mazda 3 models
• Part number 982612 for exact fitment
• Vented rotor design for improved heat dissipation
• Full cast construction for strength and durability
• Coated surface to resist corrosion and extend rotor life
• Nominal thickness of 0.984 inches (25.000 mm)
• Discard thickness at 0.906 inches (23.000 mm)
• Outside diameter of 11.012 inches (279.700 mm)
• Inside diameter of 6.713 inches (170.500 mm)
• Five lug holes with 0.528 inch (13.400 mm) diameter

Detailed Product Description

The Raybestos 982612 disc brake rotor is designed specifically for Mazda 3 vehicles, ensuring proper fit and function. This rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. Constructed from full cast material, it provides the necessary strength and rigidity for consistent braking performance. The coated rotor surface helps protect against rust and corrosion, which is especially beneficial for street-driven vehicles exposed to varying weather conditions.

Key dimensions include a nominal thickness of 0.984 inches (25.000 mm) and a discard thickness of 0.906 inches (23.000 mm), which are critical for maintaining safe braking performance. The rotor measures 11.012 inches (279.700 mm) in outside diameter and 6.713 inches (170.500 mm) in inside diameter, with a center hole diameter of 2.677 inches (68.000 mm). It mounts using five lug holes, each 0.528 inches (13.400 mm) in diameter, arranged on a 4.500 inch (114.300 mm) bolt circle diameter.

Specialty - Street Performance; Coated Rotor Product Line

This rotor is part of the Raybestos Specialty - Street Performance; Coated Rotor line, which focuses on delivering rotors optimized for street use with enhanced durability. The coating applied to these rotors helps reduce surface rust and corrosion, extending the rotor's service life without compromising braking efficiency. This product line is tailored for drivers who demand reliable stopping power and rotor longevity in everyday driving conditions.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mazda 3
• Improves braking consistency by reducing heat buildup
• Addresses rotor corrosion issues common in street-driven vehicles
• Restores proper rotor thickness to maintain braking safety
• Eliminates brake noise caused by uneven rotor surfaces

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.906 inches (23.000 mm) before installation. Clean the hub surface to prevent rotor runout and ensure proper seating. Use the correct torque specifications for the five lug nuts to avoid rotor warping. This rotor does not include bearings or an ABS tone ring, so verify compatibility with your vehicle’s braking system. Proper bedding-in of the new rotor and brake pads is recommended to achieve optimal braking performance.

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The Specialty - Street Performance; Coated Rotor line undergoes rigorous quality control to ensure durability and consistent performance. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult Raybestos or your parts provider for exact warranty terms related to part number 982612.
