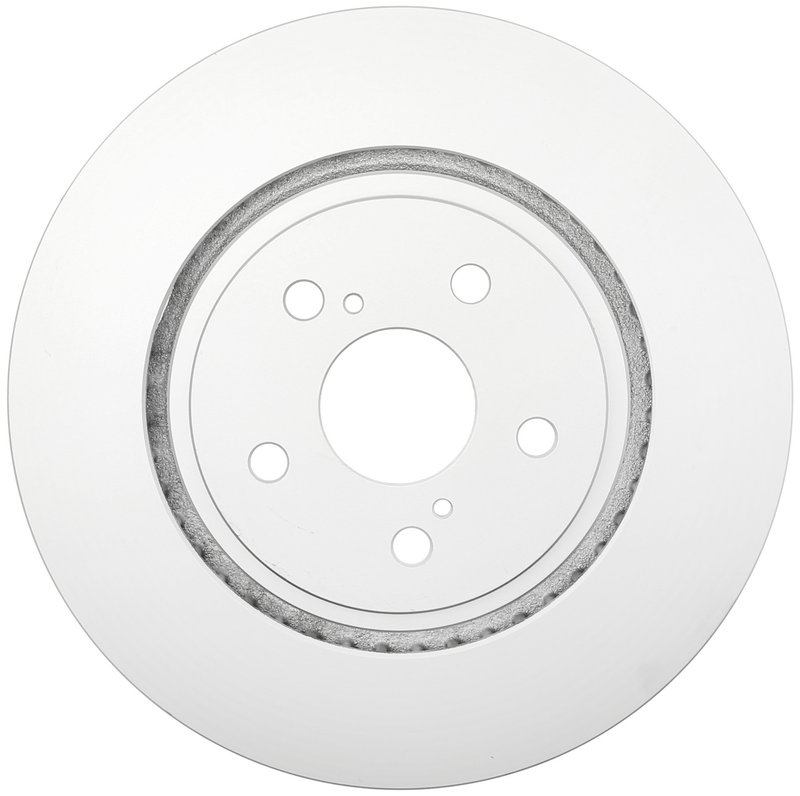

Raybestos 982751FZN Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Lexus, Toyota, and Subaru Models

The Raybestos Element 3 Disc Brake Rotor 982751FZN is engineered to provide consistent braking performance for select Lexus, Toyota, and Subaru vehicles. Designed with durable cast iron and a vented construction, this rotor supports effective heat dissipation and long-lasting operation.

• Material: Cast iron for strength and durability
• Vented rotor design to improve heat dissipation
• Nominal thickness of 1.337 inches (33.95 mm) with discard thickness at 1.22 inches (31 mm)
• Overall height of 1.941 inches (49.3 mm) and outside diameter of 12.913 inches (328 mm)
• 5 mounting bolt holes with a bolt circle diameter of 114.3 mm (4.5 inches)
• Non-directional smooth braking surface for versatile installation
• Compatible with Lexus NX450h+, Toyota RAV4 Prime, Subaru Solterra, and other models

About the Raybestos Element 3 Product Line

The Raybestos Element 3 line focuses on delivering rotors that meet or exceed OEM specifications using advanced manufacturing processes. This product line emphasizes consistent material quality and precise dimensions, ensuring reliable fitment and performance for vehicles such as the Lexus NX450h+, Toyota Sienna, and Subaru bZ4X. The 982751FZN rotor benefits from this approach, offering a full cast, vented design that balances durability and thermal management.

Detailed Product Description

This disc brake rotor is constructed from full cast iron, providing a solid and durable braking surface. The vented design allows air to flow between the rotor faces, reducing heat buildup during braking and helping to prevent warping. With a nominal thickness of 1.337 inches (33.95 mm) and a discard thickness of 1.22 inches (31 mm), the rotor maintains structural integrity throughout its service life. The rotor features a smooth, non-directional braking surface compatible with a variety of brake pad types. Its 5-bolt mounting pattern with a 114.3 mm bolt circle diameter ensures proper fitment on compatible Lexus, Toyota, and Subaru models.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Lexus NX450h+, Toyota RAV4 Prime, and Subaru Solterra
• Improves braking performance by restoring proper rotor thickness and surface condition
• Helps reduce brake noise and vibration caused by uneven rotor wear
• Supports safe braking under normal driving conditions for hybrid and electric models like the Lexus RZ450e and Toyota bZ4X
• Addresses rotor overheating issues through vented design for better heat dissipation

Installation Notes and Tips

Ensure the rotor is compatible with your vehicle’s make and model before installation. The Raybestos Element 3 982751FZN rotor requires a 5-bolt mounting pattern with a 114.3 mm bolt circle diameter. Clean the hub surface thoroughly to prevent rotor runout. Use proper torque specifications for mounting bolts to avoid distortion. Since this rotor does not include bearings or ABS tone rings, verify existing components are in good condition or replace as necessary.

Quality Assurance and Warranty

Raybestos Element 3 rotors are manufactured to meet OEM standards for material and dimensional accuracy. The 982751FZN rotor undergoes quality control checks to ensure consistent performance and fitment. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
