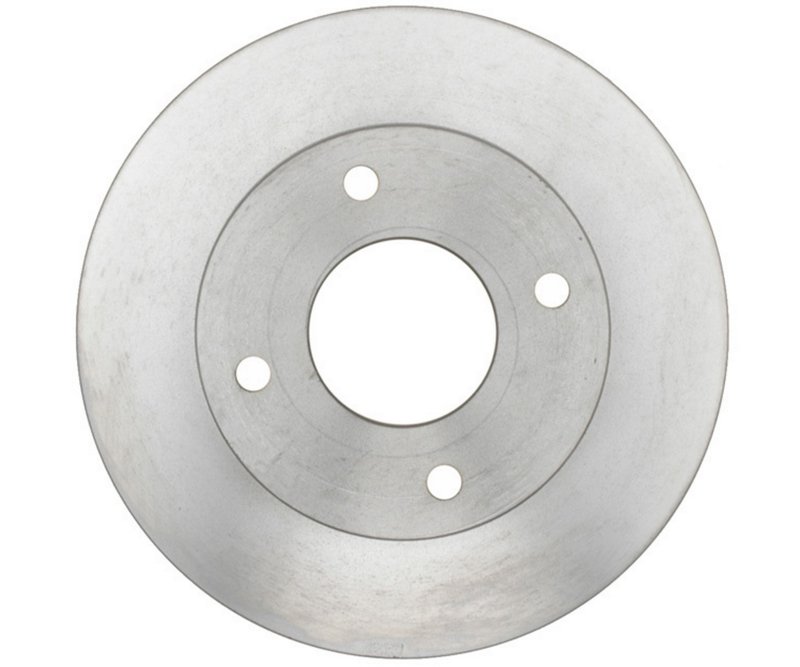

Raybestos 9914R Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Nissan Versa

The Raybestos R-Line 9914R disc brake rotor is engineered to provide consistent braking performance for Nissan Versa models. Designed with precision, this vented rotor ensures effective heat dissipation and durability under various driving conditions.

• Compatible with Nissan Versa vehicles
• Vented disc brake rotor design for improved cooling
• Overall diameter of 9.835 inches (249.8 mm)
• Nominal thickness of 0.865 inches (21.95 mm) with discard thickness at 0.790 inches (20.05 mm)
• Four mounting bolt holes with a 4.5-inch (114.3 mm) bolt circle diameter
• Center hole diameter of 2.678 inches (68 mm)
• Conventional rotor type with four stud/lug holes

Raybestos R-Line Product Line Overview

The R-Line by Raybestos focuses on delivering reliable and consistent braking components tailored for specific vehicle applications. The 9914R rotor is part of this line, offering a balance of performance and durability suitable for everyday driving needs on Nissan Versa models.

Detailed Product Description

This Raybestos R-Line 9914R disc brake rotor features a vented design that helps dissipate heat more efficiently than solid rotors, reducing the risk of brake fade during extended use. With an overall height of 1.945 inches (49.4 mm), this rotor maintains structural integrity while fitting precisely to the Nissan Versa's brake system. The nominal thickness of 0.865 inches (21.95 mm) ensures a solid braking surface, while the discard thickness of 0.790 inches (20.05 mm) indicates when replacement is necessary to maintain safe braking performance. The rotor includes four mounting bolt holes arranged on a 4.5-inch (114.3 mm) bolt circle diameter, compatible with the vehicle's hub assembly. The center hole diameter of 2.678 inches (68 mm) allows for proper alignment and fitment.

Common Issues Addressed by This Rotor

• Brake rotor warping causing vibration during braking
• Reduced braking efficiency due to worn or thin rotors
• Overheating and brake fade from solid rotors in demanding conditions
• Uneven brake pad wear linked to rotor surface irregularities
• Noise and pulsation caused by damaged or out-of-spec rotors

Installation Notes and Tips

• Ensure the rotor thickness is above the discard thickness before installation
• Clean the rotor surface to remove any protective coating or debris
• Check compatibility with Nissan Versa model year and brake system specifications
• Tighten mounting bolts to manufacturer torque specifications
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 9914R are not provided here, Raybestos typically offers coverage against defects in materials and workmanship. Always refer to the product packaging or Raybestos documentation for exact warranty terms.
