OE Quality
60-Day Returns

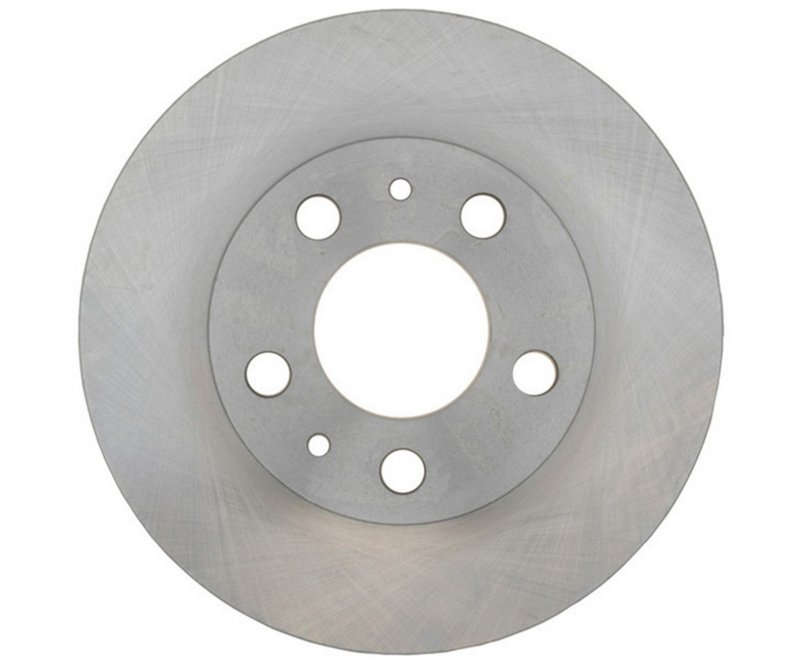

Raybestos 9982R Disc Brake Rotor - Front
Reliable Disc Brake Rotor for Volvo 240, DL, and GLE Models
The Raybestos R-Line 9982R disc brake rotor is engineered to meet the braking demands of Volvo 240, DL, and GLE vehicles. Designed as a solid, conventional rotor, it offers consistent performance and durability for your braking system.
- Solid disc brake rotor with conventional design
- Outside diameter: 10.350 inches (262.9 mm)
- Nominal thickness: 0.865 inches (21.95 mm)
- Discard thickness: 0.803 inches (20.4 mm)
- Overall height: 2.655 inches (67.45 mm)
- Five mounting bolt holes with 4.250 inch (107.95 mm) bolt circle diameter
- Center hole diameter: 2.678 inches (68.0 mm)
- Five stud/lug hole quantity
Raybestos R-Line Product Line Overview
The R-Line by Raybestos is a product line focused on delivering reliable, OE-quality brake components designed for a wide range of vehicles. The 9982R rotor exemplifies this line by providing precise fitment and consistent braking performance, making it suitable for Volvo 240 series models and their variants.
Detailed Product Description
This Raybestos R-Line 9982R disc brake rotor is a solid, conventional rotor designed specifically for Volvo 240, DL, and GLE models. With an outside diameter of 10.350 inches and a nominal thickness of 0.865 inches, it ensures proper contact with brake pads for effective stopping power. The discard thickness of 0.803 inches indicates the minimum safe thickness before replacement is necessary, helping maintain braking safety. The rotor features five mounting bolt holes arranged on a 4.250 inch bolt circle diameter, compatible with the specified Volvo models. Its overall height of 2.655 inches and center hole diameter of 2.678 inches provide a precise fit for the vehicle’s hub assembly.
Common Applications and Issues Addressed
- Replacement for worn or warped rotors on Volvo 240, DL, and GLE
- Restores braking performance and reduces brake noise
- Addresses rotor thickness below manufacturer specifications
- Eliminates vibration or pulsation during braking
- Prevents brake fade caused by rotor overheating
Installation Notes and Tips
Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness is above the discard thickness specification of 0.803 inches. Use proper torque specifications for the five mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.
Quality Assurance
Raybestos R-Line rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 9982R rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty information is available through Raybestos and may vary by distributor.
| Brand | Raybestos |
|---|---|
| Part Number | 9982R |
| Position | R-Line, Front |
| Discard Thickness | 0.803 |
| Discard Thickness | 20.400 |
| Nominal Thickness | 0.865 |
| Nominal Thickness | 21.950 |
| Overall Height | 2.655 |
| Overall Height | 67.450 |
| Outside Diameter | 10.350 |
| Outside Diameter | 262.900 |
| Mounting Bolt Hole Quantity | 5 |
| Solid Or Vented Type Rotor | Solid |
| Center Hole Diameter | 2.678 |
| Center Hole Diameter | 68.000 |
| Mounting Bolt Hole Circle Diameter | 107.950 |
| Mounting Bolt Hole Circle Diameter | 4.250 |
| Mounting Bolt Hole Diameter | 0.645 |
| Mounting Bolt Hole Diameter | 16.400 |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Volvo | 240 | Front | with 2.625 IN Overall Height; with Vented Rotors; R-Line |
| 1992 | Volvo | 240 | Front | with 2.625 IN Overall Height; with Vented Rotors; R-Line |
| 1991 | Volvo | 240 | Front | with 2.625 IN Overall Height; with Vented Rotors; R-Line |
| 1990 | Volvo | 240 | Front | with 2.625 IN Overall Height; with Vented Rotors; R-Line |
| 1984 | Volvo | DL | Front | Replaces 109982; Raybestos R-Line |
| 1984 | Volvo | GLE | Front | Replaces 109982; Raybestos R-Line |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
