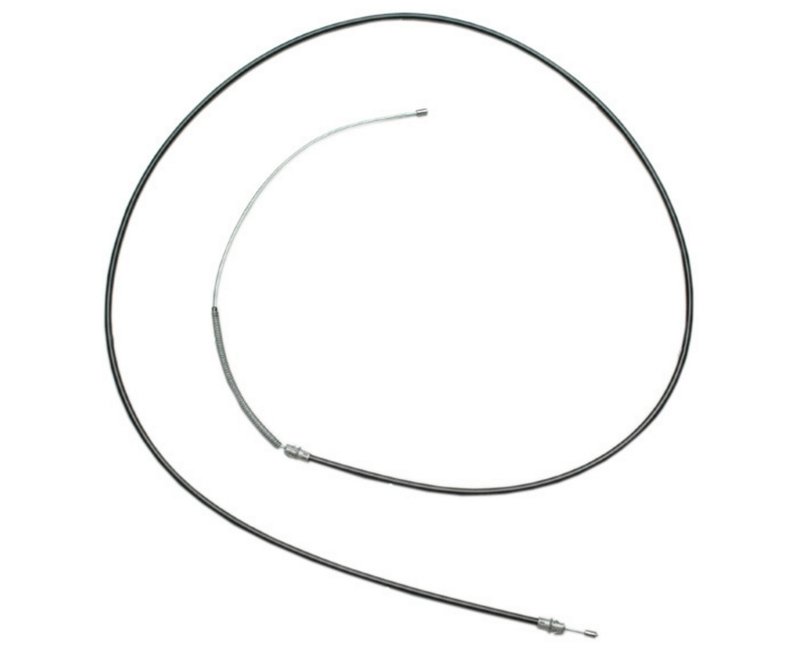

Raybestos BC93509 Parking Brake Cable - Front

Raybestos Element3 Parking Brake Cable BC93509

The Raybestos Element3 BC93509 parking brake cable is built for direct-fit service on select Chevrolet G30 and GMC G3500 front applications. With a 0.125-inch cable diameter, barrel fittings at both ends, and overall cable and housing dimensions listed below, it supports accurate parking brake linkage geometry for the correct vehicle fit.

Key Features

• Parking brake cable for brake hardware service
• Raybestos Element3 line for application-specific replacement parts
• 0.125-inch cable diameter
• Barrel fitting type at End 1 and End 2
• Overall cable length: 127.750 in. (324.485 cm)
• Overall housing length: 101.000 in. (256.540 cm)
• Fits front-position applications on select Chevrolet G30 and GMC G3500 models

Product Details

Raybestos BC93509 is a parking brake cable designed around the listed dimensions and end fittings to match the original routing and connection points used on compatible vehicles. This part cross-references Dorman - First Stop C93509 for the same application. The Element3 product line is positioned within Raybestos brake service parts for vehicle-specific replacement needs, making this cable a practical choice when servicing the parking brake system on 1983-1996 Chevrolet G30 and 1983-1996 GMC G3500 front applications.

What This Part Helps Address

• Parking brake cable stretch that affects lever travel
• Broken or frayed cable strands
• Corrosion-related cable binding
• Improper parking brake engagement or release
• Restoring correct cable routing on front-position brake hardware

Installation Notes and Tips

Verify the cable diameter, barrel-end fittings, and listed overall lengths before installation. Confirm the vehicle application against the front-position fitment for 1983-1996 Chevrolet G30 and 1983-1996 GMC G3500, and inspect related parking brake components for wear that could affect cable operation. For best results, compare the removed cable to BC93509 before final assembly.

Quality Assurance

Raybestos brake components are cataloged by application and dimension to support accurate replacement selection. BC93509 is identified with expanded fitment coverage for 28 vehicle applications across the 1983-1996 model years listed.
