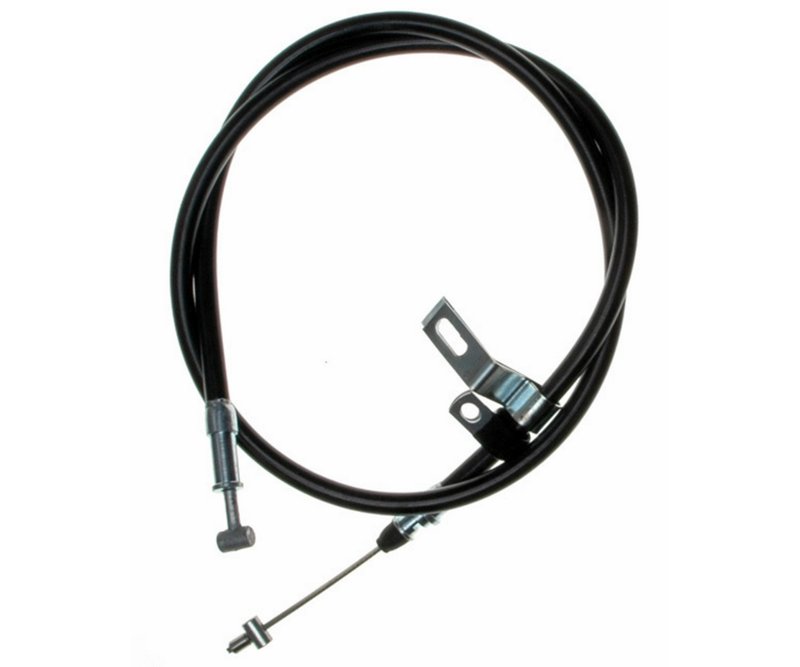

Raybestos BC94002 Parking Brake Cable - Rear Left
| Brand | Raybestos BC94002 |
|---|---|
| Position | Rear Left |
| Cable Diameter | 0.125 |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 59.690 |
| Cable Length, Overall | 151.615 |
| Housing Length, Overall | 53.560 |
| Housing Length, Overall | 136.040 |
| Product line | Element3 |
| Fits | Nissan · 2 vehicles |
Element3 line. Raybestos brake hardware with a hammer-to-barrel cable design.
Parking brake cable with precise overall cable and housing lengths.
Cross-references 094-1137, 157.94002 and 26049 for the same application. See all 7.
Raybestos Element3 BC94002 Parking Brake Cable
Raybestos Element3 BC94002 is a rear left parking brake cable for select 1989-1990 Nissan Maxima applications. It is built with a 0.125 cable diameter, hammer fitting at one end, barrel fitting at the other, and overall cable and housing dimensions that match the listed vehicle application.
Element3 Product Line Details
The Raybestos Element3 line focuses on brake components engineered for direct-fit replacement needs. For this parking brake cable, the listed dimensions and end fittings help support proper routing and connection on the rear left side of the brake system.
Key Features
- Part number BC94002 for catalog and service reference
- Fits 1989-1990 Nissan Maxima, rear left
- 0.125 cable diameter
- Hammer fitting on end 1 and barrel fitting on end 2
- Overall cable length: 151.615 in. / 59.690 in.
- Housing length: 136.040 in. / 53.560 in.
- Brake hardware category parking brake cable for rear parking brake service
Detailed Description
Raybestos BC94002 is a parking brake cable for the rear left position on 1989-1990 Nissan Maxima models. The cable uses a hammer fitting at one end and a barrel fitting at the other, with the specified cable and housing lengths to match the original routing and connection points for the rear parking brake system. If you are servicing a Nissan Maxima parking brake cable, BC94002 provides the fitment and dimensional details needed for a direct replacement search.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Issues This Part Can Address
- Parking brake cable fraying or broken strands
- Sticking or uneven parking brake engagement
- Excessive slack in the rear parking brake linkage
- Corrosion at the cable or housing
- Loss of parking brake hold on the rear left side
Installation Notes and Tips
Verify rear left routing, end fitting style, and measured length before installation. Compare the existing cable to the listed dimensions and connection types to confirm BC94002 matches the vehicle configuration. Inspect related parking brake components, guides, and attachment points for wear before completing service on the Nissan Maxima.
Quality Assurance
Raybestos Element3 brake components are cataloged with application-specific dimensions and fitment data to support accurate replacement selection. Confirm the part number BC94002 against the vehicle listing before installation.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1990 | Nissan | Maxima | SE | Rear Left | Element3 |
| 1989 | Nissan | Maxima | — | Rear Left | Element3 |
