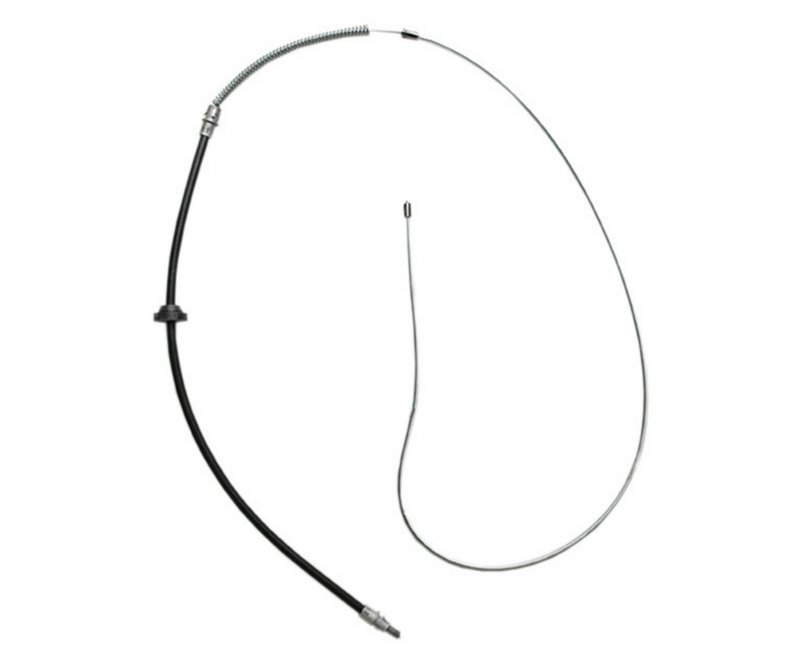

Raybestos BC94166 Parking Brake Cable - Front

Raybestos Element3 BC94166 Parking Brake Cable

The Raybestos Element3 BC94166 parking brake cable is built for front-position applications on select Chevrolet and GMC trucks. With a 0.125 cable diameter, barrel-style ends, and measured overall cable and housing lengths, it supports a direct-fit replacement for vehicles that need precise parking brake linkage operation.

For 1990-1994 Chevrolet C1500, C2500, C3500, K1500, K2500, and K3500 models, as well as 1990-1994 GMC C1500, C2500, C3500, K1500, K2500, and K3500 models, this Raybestos parking brake cable is specified for front installation and notes a removable rubber pad cover on 1994 applications. The BC94166 part number is also useful when cross-referencing replacement options for the same application.

Key Features

• Raybestos Element3 parking brake cable for front-position applications
• Part number BC94166 for select Chevrolet and GMC trucks
• 0.125 cable diameter for consistent cable routing and engagement
• Barrel fittings on both ends
• Overall cable length: 202.565 in. / 79.750 in.
• Overall housing length: 24.125 in. / 61.280 in.
• Fits 1990-1994 Chevrolet C1500, C2500, C3500, K1500, K2500, and K3500 front applications
• Fits 1990-1994 GMC C1500, C2500, C3500, K1500, K2500, and K3500 front applications

Product Details

Raybestos Element3 focuses on brake-system replacement parts with application-specific fitment and dimensional accuracy. The BC94166 parking brake cable uses barrel-style end fittings and listed cable and housing measurements to match the original routing and connection points on supported Chevrolet and GMC full-size truck platforms. This helps maintain proper parking brake actuation in front-mounted cable applications.

This part cross-references Dorman - First Stop C94166 for the same application.

What This Cable Helps Address

• Parking brake cable stretch that affects lever travel
• Broken or frayed cable strands
• Corrosion-related cable binding
• Parking brake engagement problems at the front cable location
• Improper cable fit after a previous replacement

Installation Notes and Tips

Verify the vehicle’s year, make, model, and front-position cable routing before installation. Compare the existing cable length, housing length, and end fitting style to the BC94166 specifications to confirm match-up on Chevrolet C1500, C2500, C3500, K1500, K2500, K3500 and GMC C1500, C2500, C3500, K1500, K2500, K3500 applications. On 1994 vehicles, confirm the removable rubber pad cover note before ordering.

Inspect the parking brake lever, equalizer, and related hardware for wear or corrosion during replacement so the new cable can operate smoothly once installed.

Quality Assurance

Raybestos Element3 is a brake-focused product line with application-specific replacement parts engineered around OE-style fitment requirements. The BC94166 is cataloged with detailed dimensional data and interchange references to support accurate part selection for the correct Chevrolet and GMC truck application.
