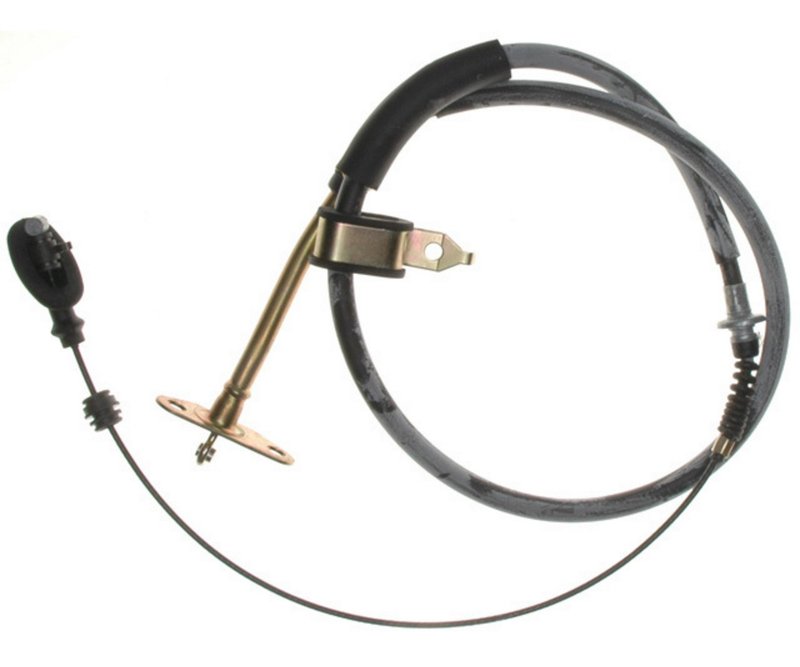

Raybestos BC94289 Parking Brake Cable - Rear Right

Raybestos Element3 BC94289 Parking Brake Cable

The Raybestos Element3 BC94289 parking brake cable is built for rear-right service on select Mazda 929 models. It uses a 0.140 cable diameter, a hammer fitting at one end, and a filled loop at the other to match the original cable routing and connection style.

For 1988-1991 Mazda 929 rear right applications, this cable supports parking brake function with the correct overall cable and housing lengths for the listed fitment. The Element3 line focuses on application-specific brake components for direct replacement needs, and BC94289 is listed with interchange references for cross-checking during parts lookup.

Key Features

• Parking brake cable for rear right position
• Fits 1988-1991 Mazda 929, rear right
• Part number BC94289 for catalog matching
• 0.140 cable diameter
• Hammer fitting on end 1 and filled loop on end 2
• Overall cable length: 172.720 in. / 68.000 in.
• Overall housing length: 113.665 in. / 44.750 in.
• Raybestos Element3 brake line component

Detailed Description

Raybestos BC94289 is a rear-right parking brake cable for 1988-1991 Mazda 929 models. The listed dimensions include a 0.140 cable diameter, 172.720 inches overall cable length, and 113.665 inches overall housing length, helping confirm the correct routing and reach for the specified vehicle application. The hammer fitting and filled loop end configuration are important details when matching the cable to the original parking brake setup. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Parking brake cable stretch or loss of tension
• Broken or frayed rear parking brake cable
• Uneven parking brake engagement at the rear right wheel
• Incorrect cable length or end fitting match during replacement
• Parking brake release or hold issues caused by cable wear

Installation Notes and Tips

Verify the rear-right position and compare the cable end fittings, overall length, and housing length before installation. On a Mazda 929 parking brake cable replacement, confirm that the routing matches the original path and that the cable seats correctly at both connection points. Use the vehicle fitment data for 1988-1991 Mazda 929, rear right, and confirm BC94289 against the removed cable before final assembly.

Quality Assurance

Raybestos Element3 is a brake-focused product line with application-specific coverage for replacement parts. BC94289 is cataloged with defined dimensions and interchange references to support accurate parts identification for the listed Mazda 929 fitment.
