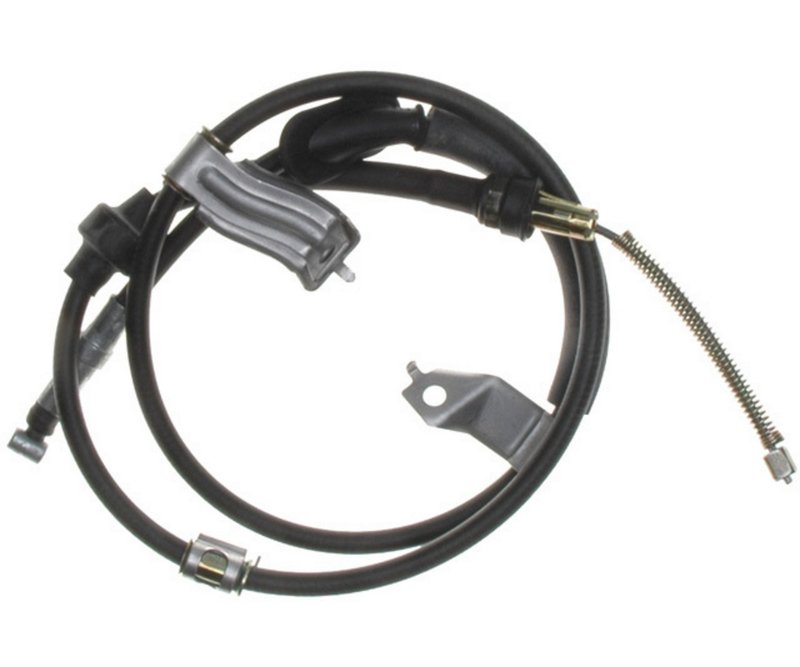

Raybestos BC94421 Parking Brake Cable - Rear Left
| Brand | Raybestos BC94421 |
|---|---|
| Position | Rear Left |
| Cable Diameter | 0.125 |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 60.750 |
| Cable Length, Overall | 154.305 |
| Housing Length, Overall | 54.500 |
| Housing Length, Overall | 138.430 |
| Product line | Element3 |
| Fits | Honda · 8 vehicles |
Element3 line. Raybestos parking brake cable with Hammer and Barrel fittings.
Cable assembly. Overall cable length is 60.750 inches for a precise fit.
Housing length. 138.430-inch housing supports smooth cable routing.
Cross-references Dorman - First Stop C660274, 157.94421 and 47560S01A01 for the same application. See all 13.
Raybestos Element3 Parking Brake Cable BC94421
Raybestos Element3 BC94421 is a rear left parking brake cable for select Honda Civic applications. It uses a 0.125 cable diameter with a hammer fitting at one end and a barrel fitting at the other, along with an overall cable length of 60.750 inches and housing length of 54.500 inches.
The Raybestos Element3 line focuses on application-specific brake components built for direct replacement use. For this Honda Civic parking brake cable, the listed dimensions and end fittings help match the original routing and connection points on the rear left side.
Key Features
- Part number BC94421 for direct identification
- Rear left parking brake cable for Honda Civic applications
- 0.125 cable diameter for OE-style fitment
- Hammer fitting on end 1 and barrel fitting on end 2
- Overall cable length: 60.750 inches
- Housing length: 54.500 inches
- Raybestos Element3 product line
Detailed Description
BC94421 is a parking brake cable engineered for rear left placement on 1995-2000 Honda Civic models, with additional coverage for 1992-1993 Honda Civic rear left applications in the listed configurations. The cable dimensions, housing length, and end fitting types are the key identifiers for matching the correct brake hardware on the vehicle. If you are searching for a Honda Civic parking brake cable, BC94421 provides a fitment-specific replacement reference for the rear left position.
This part cross-references Dorman - First Stop C660274 for the same application.
What This Part Helps Address
- Parking brake cable stretch or loss of tension
- Broken or frayed cable strands
- Parking brake that will not hold properly
- Uneven rear left parking brake engagement
- Corrosion or binding in the cable assembly
Installation Notes and Tips
Verify rear left fitment against the vehicle year, model, and notes before installation. Confirm the hammer and barrel end fittings match the original cable, and compare the overall cable and housing lengths to the removed part. On 1992-1993 Honda Civic applications, check the listed notes for non-ABS, automatic transaxle, Japan-built vehicle, and serial number requirements.
Quality Assurance
Raybestos Element3 brake components are built around application-specific replacement standards, with dimensions and fitment details provided to support accurate part selection for Honda Civic brake service.
| Year | Make | Model | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|
| 2000 | Honda | Civic | — | — | Rear Left | Raybestos Element 3 |
| 1999 | Honda | Civic | — | — | Rear Left | Raybestos Element 3 |
| 1998 | Honda | Civic | — | — | Rear Left | Raybestos Element 3 |
| 1997 | Honda | Civic | — | — | Rear Left | Raybestos Element 3 |
| 1996 | Honda | Civic | — | — | Rear Left | Raybestos Element 3 |
| 1995 | Honda | Civic | — | — | Rear Left | Raybestos Element 3 |
| 1993 | Honda | Civic | Sedan | 4 Door | Rear Left | Non-ABS; w/ Automatic Transaxle; Japan Built Vehicle; Thru Serial # PS017031; Element3 |
| 1992 | Honda | Civic | Sedan | 4 Door | Rear Left | Non-ABS; w/ Automatic Transaxle; Japan Built Vehicle; Element3 |
