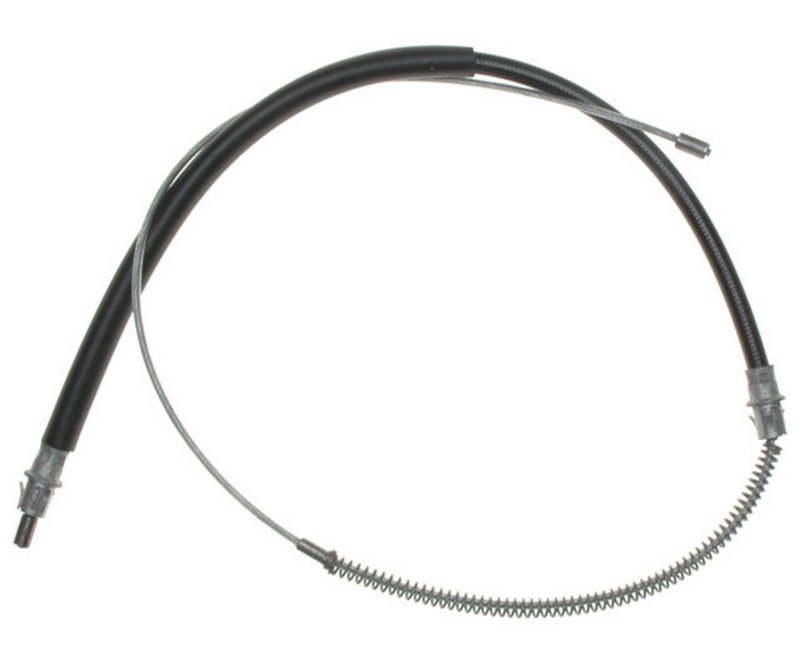

Raybestos BC94640 Parking Brake Cable - Front
| Brand | Raybestos BC94640 |
|---|---|
| Position | Front |
| Cable Diameter | 0.125 |
| Cable Fitting Type, End 1 | Barrel |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 49.000 |
| Cable Length, Overall | 124.460 |
| Housing Length, Overall | 20.875 |
| Housing Length, Overall | 53.025 |
| Product line | Element3 |
| Fits | Cadillac · 2 vehicles |
Element3 line. Raybestos hardware line for dependable brake service.
Parking brake cable. Barrel fittings at both ends for secure attachment.
Cable construction. 0.125 diameter with 49-inch overall length.
Cross-references Dorman - First Stop C94640, Standard Ignition 7737 and 157.94640 for the same application. See all 11.
Raybestos Element3 Parking Brake Cable BC94640
The Raybestos Element3 BC94640 parking brake cable is built for direct-fit service on select 1993 Cadillac applications. It features barrel-style fittings on both ends, a 0.125-inch cable diameter, and overall cable and housing dimensions that support proper parking brake routing and engagement.
Key Features
- Parking brake cable for brake hardware service
- Barrel fitting type at End 1 and End 2
- Cable diameter: 0.125 in.
- Overall cable lengths: 49.000 in. and 124.460 in.
- Overall housing lengths: 20.875 in. and 53.025 in.
- Raybestos Element3 line for brake system replacement parts
- Part number BC94640 for ordering and cross-reference
Product Details
Raybestos Element3 focuses on brake components engineered for consistent service fit and dependable operation. This BC94640 parking brake cable is listed for 1993 Cadillac Commercial Chassis, front, and 1993 Cadillac Fleetwood, front. If you are searching for a 1993 Cadillac Fleetwood front parking brake cable or a 1993 Cadillac Commercial Chassis front parking brake cable, this part number provides the specified dimensions and barrel-end configuration needed for the application. This part cross-references Dorman - First Stop C94640 for the same application.
Common Repair Uses
- Restoring parking brake engagement on a worn or stretched cable
- Replacing a cable with damaged barrel ends
- Correcting parking brake travel issues caused by incorrect cable length
- Addressing binding or poor routing from deteriorated housing
- Servicing brake hardware on 1993 Cadillac Fleetwood and Commercial Chassis models
Installation Notes
Verify cable length, housing length, and barrel fitting style against the original part before installation. Confirm routing, attachment points, and front-position placement on the vehicle to ensure proper parking brake operation. Use the vehicle service procedure for adjustment after installation so the cable seats correctly and the parking brake applies evenly.
Quality Assurance
As part of the Raybestos Element3 line, BC94640 is cataloged with application-specific dimensions and fitment data for direct replacement service on the listed Cadillac models. Part number BC94640 is also referenced under Standard Ignition 7737 and other catalog cross-references for identification purposes.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1993 | Cadillac | Commercial Chassis | RWD | 5.7L | V8 | Front | Element3 |
| 1993 | Cadillac | Fleetwood | — | — | — | Front | Element3 |
| No rows match your filter. | |||||||
