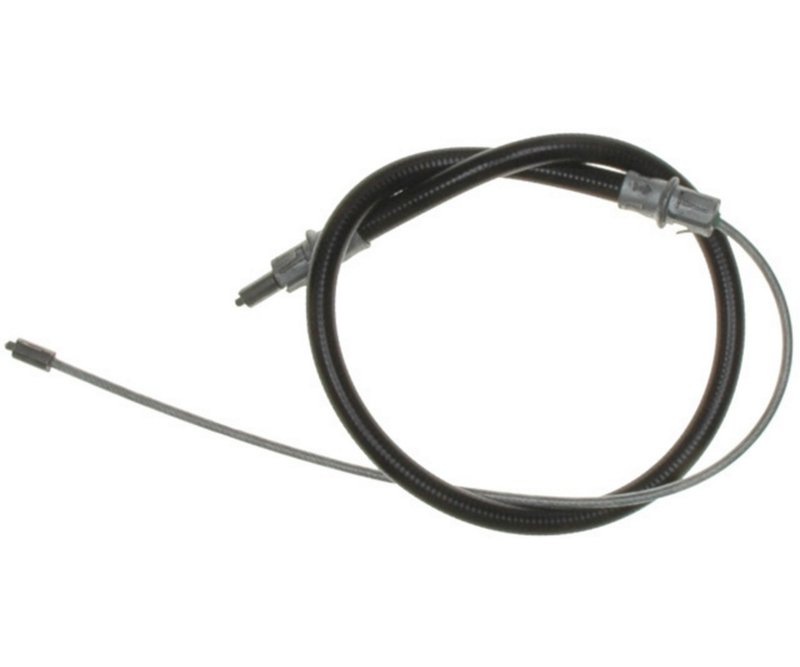

Raybestos BC94726 Parking Brake Cable - Front

Raybestos Element3 BC94726 Parking Brake Cable

The Raybestos Element3 BC94726 parking brake cable is built for direct-fit service on select GM front applications. With barrel fittings on both ends and an overall cable diameter of 0.125 in., it provides the dimensions needed for a precise parking brake connection.

Compatible With 1994-2000 Buick Regal, Pontiac Grand Prix, Oldsmobile Cutlass Supreme, Chevrolet Lumina, and Chevrolet Monte Carlo front parking brake applications, this cable is a fitment-specific replacement for vehicles that need accurate cable length and housing dimensions. The BC94726 part number is also a useful reference when matching the correct cable for these platforms.

Key Features

• Raybestos Element3 parking brake cable for front applications
• Barrel fitting type on end 1 and end 2
• Cable diameter: 0.125 in.
• Overall cable length: 37.130 in. and 94.310 in.
• Overall housing length: 22.000 in. and 55.880 in.
• Direct replacement reference for BC94726

Element3 Product Line

Raybestos Element3 is the brand line used for brake components that focus on application-specific fit and consistent service dimensions. For a parking brake cable like BC94726, that means matching the cable and housing measurements to the vehicle’s original routing and connection points.

Detailed Description

The Raybestos BC94726 parking brake cable is specified for front-position use on select Chevrolet, Buick, Oldsmobile, and Pontiac models from 1994 through 2000. It is listed for 1995-2000 Chevrolet Lumina front, 1995-1999 Chevrolet Monte Carlo front, 1994-1997 Oldsmobile Cutlass Supreme front, 1994-1996 Buick Regal front, and 1994-1996 Pontiac Grand Prix front. This fitment-focused design helps ensure the cable length, housing length, and barrel-end configuration align with the original parking brake system layout.

This part cross-references Dorman - First Stop C660173 for the same application.

What It Is Used For

• Restoring parking brake cable function on a front cable run
• Replacing a stretched or damaged parking brake cable
• Addressing poor parking brake engagement or release
• Correcting cable routing or length mismatch during brake service
• Servicing GM front parking brake applications on Lumina, Monte Carlo, Regal, Grand Prix, and Cutlass Supreme models

Installation Notes and Tips

Verify the vehicle’s year, make, model, and front-position application before installation. Compare the existing cable’s barrel fittings, overall cable length, and housing length to the listed specifications for BC94726. Confirm routing follows the original path and check the parking brake system for wear at the lever, equalizer, and rear brake connection points.

Quality Assurance

Raybestos brake components are built around application-specific fitment and dimensional accuracy for brake service. The BC94726 parking brake cable is identified by a direct part number match for the listed GM front applications.
