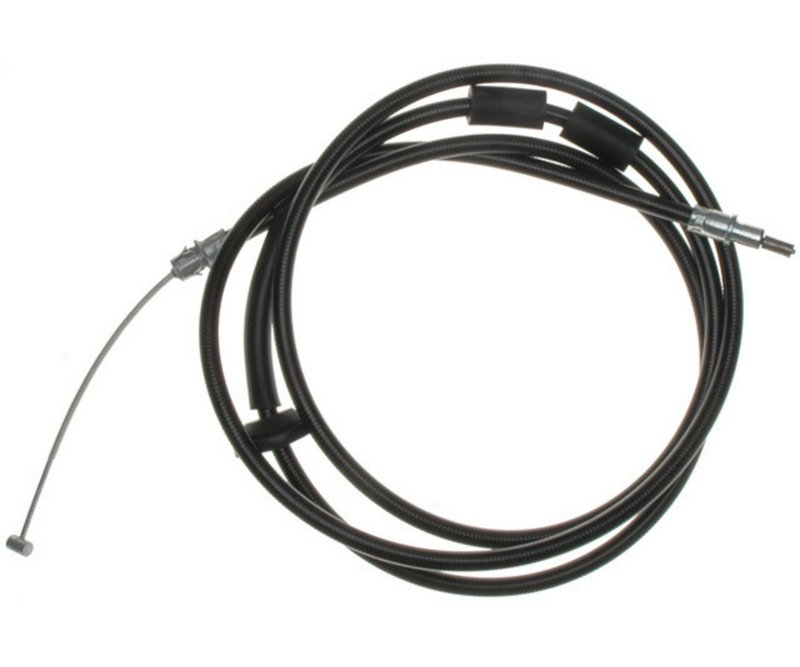

Raybestos BC94838 Parking Brake Cable - Front
| Brand | Raybestos BC94838 |
|---|---|
| Position | Front |
| Cable Diameter | 0.125 |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 106.380 |
| Cable Length, Overall | 270.205 |
| Housing Length, Overall | 96.750 |
| Housing Length, Overall | 245.745 |
| Product line | Element3 |
| Fits | Buick, Oldsmobile, and Pontiac · 3 vehicles |
Element3 line. Raybestos brake hardware focused on dependable cable performance.
Hammer and barrel ends. Distinct fittings for secure parking brake cable connection.
Long overall length. Built with 106.380 in. cable length and 245.745 in. housing.
Cross-references Continental 67130, 157.94838 and 22589434 for the same application. See all 5.
Raybestos Element3 Parking Brake Cable BC94838
Raybestos Element3 BC94838 is a front parking brake cable built for specific 1994 GM compact applications with handling-focused suspension packages. It uses a 0.125 cable diameter, a hammer fitting on end 1, and a barrel fitting on end 2 for the listed vehicle applications.
The Element3 product line focuses on brake components engineered for direct-fit replacement needs, and this cable follows that approach with application-specific overall cable and housing dimensions for accurate routing and engagement. This part cross-references Continental 67130 for the same application.
Key Features
- Part number BC94838 parking brake cable
- Front position application for listed vehicles
- 0.125 cable diameter
- Hammer fitting type on end 1
- Barrel fitting type on end 2
- Overall cable length: 106.380 in. / 270.205 cm
- Overall housing length: 96.750 in. / 245.745 cm
Detailed Description
Raybestos BC94838 is a parking brake cable for 1994 Buick Skylark, 1994 Oldsmobile Achieva, and 1994 Pontiac Grand Am in the front position with the Handling Package or Ride Handling Package as listed. The cable length and housing length specifications help match the original routing and connection points used in these applications, supporting proper parking brake operation on the Buick Skylark, Oldsmobile Achieva, and Pontiac Grand Am.
Use BC94838 when replacing a worn or damaged front parking brake cable on these specific 1994 vehicles. The Element3 designation identifies the Raybestos brake product line for application-specific replacement parts, and BC94838 is also referenced by part numbers 157.94838, 22589434, C94838, and F129681.
What It Helps Solve
- Parking brake cable stretch that affects lever travel
- Broken or frayed cable strands
- Sticking or inconsistent parking brake engagement
- Improper cable routing from a mismatched replacement part
- Loss of parking brake hold on the listed front applications
Installation Notes and Tips
Verify the vehicle’s year, make, model, position, and package notes before installation. Confirm the hammer and barrel end fittings match the original cable connection points, and compare the overall cable and housing lengths to the removed part before final assembly. For 1994 Buick Skylark, 1994 Oldsmobile Achieva, and 1994 Pontiac Grand Am front parking brake service, matching the listed handling-package fitment is essential for correct operation.
Quality Assurance
Raybestos Element3 brake components are built around application-specific fitment and dimensional accuracy for replacement use. BC94838 is listed for direct vehicle applications and supported by cross-reference data for identification during parts lookup.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | Buick | Skylark | Front | with Handling Package; Element3 |
| 1994 | Oldsmobile | Achieva | Front | with Handling Package; Element3 |
| 1994 | Pontiac | Grand Am | Front | with Ride Handling Package; Element3 |
| No rows match your filter. | ||||
