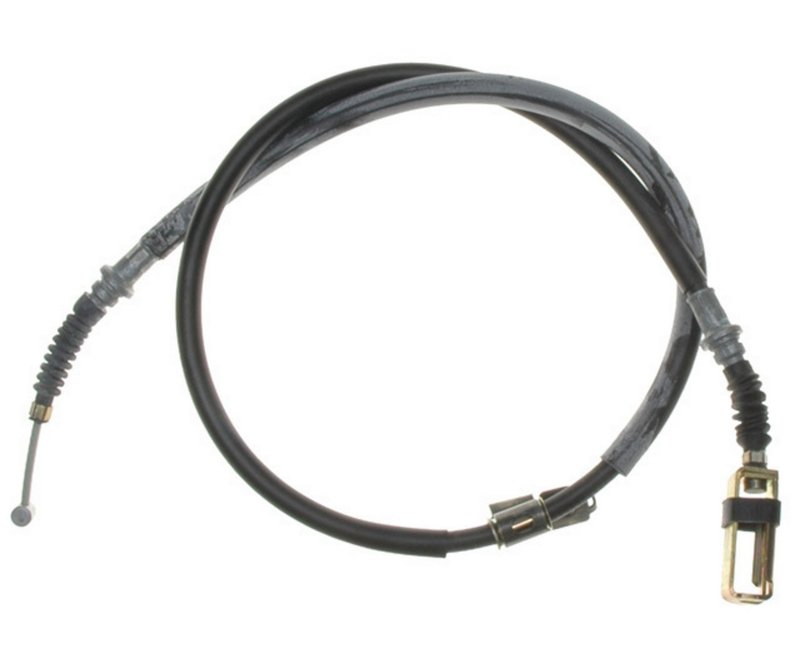

Raybestos BC94990 Parking Brake Cable - Left Intermediate

Raybestos Element3 Parking Brake Cable BC94990

The Raybestos Element3 BC94990 parking brake cable is built for direct-fit service on select Mazda applications. It uses a 0.125 cable diameter with a clevis fitting at one end and a hammer fitting at the other, along with an overall cable length of 49.250 inches and housing length of 39.875 inches.

For 1995-1996 Mazda Millenia left intermediate parking brake cable replacement, BC94990 provides the fitment and end-style details needed for a precise service match. The Element3 line focuses on application-specific brake components for repair work that follows the original vehicle layout.

Key Features

• Parking brake cable for brake hardware service
• 0.125 cable diameter
• Clevis end fitting on one side
• Hammer end fitting on the other side
• Overall cable length: 49.250 inches
• Overall housing length: 39.875 inches
• Fits 1995-1996 Mazda Millenia, left intermediate
• Raybestos part number BC94990

Detailed Description

Raybestos BC94990 is a parking brake cable designed around the listed dimensions and end fittings for a direct replacement on the specified Mazda Millenia application. The clevis and hammer fitting combination, along with the stated cable and housing lengths, helps match the original routing and connection points used in the left intermediate position. This part number is also referenced as BC94990 for ordering and catalog lookup.

The Element3 product line is positioned within Raybestos brake service offerings for vehicles that require application-specific hardware and cable geometry. This makes BC94990 a practical choice when servicing a 1995-1996 Mazda Millenia parking brake system and replacing a worn or damaged left intermediate cable.

This part cross-references Dorman - First Stop C94990 for the same application.

Common Problems This Part May Address

• Parking brake cable stretch that affects lever travel
• Broken or frayed cable strands
• Corrosion in the cable or housing
• Parking brake that will not hold properly
• Uneven or inconsistent parking brake engagement

Installation Notes and Tips

Verify the cable diameter, end fittings, and measured lengths against the removed part before installation. Confirm the vehicle is a 1995-1996 Mazda Millenia and that the service location is the left intermediate position. Inspect routing points, retaining clips, and adjacent brake hardware for wear or corrosion before final assembly.

Quality Assurance

Raybestos Element3 brake components are cataloged for application-specific fitment and dimensional accuracy. BC94990 should be matched to the vehicle position and measurements listed above to support proper parking brake operation.
