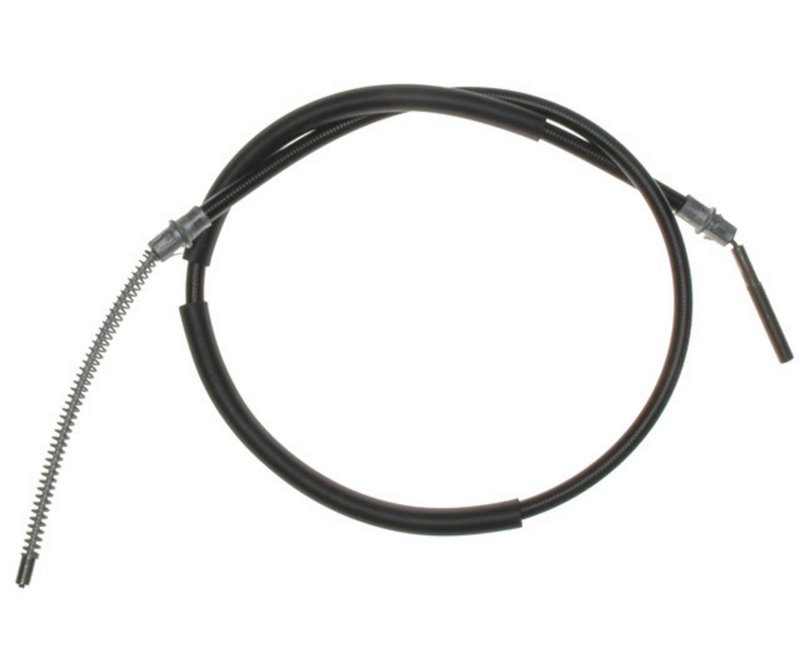

Raybestos BC95026 Parking Brake Cable - Rear
| Brand | Raybestos BC95026 |
|---|---|
| Position | Rear |
| Cable Diameter | 0.125 |
| Cable Fitting Size, End 2 | 0.375 |
| Cable Fitting Type, End 1 | Barrel |
| Cable Length, Overall | 52.940 |
| Cable Length, Overall | 134.470 |
| Housing Length, Overall | 42.500 |
| Housing Length, Overall | 107.950 |
| Product line | Element3 |
| Fits | Chevrolet and GMC · 8 vehicles |
Element3 line. Raybestos hardware line for dependable parking brake cable replacement.
Barrel-end fitting. Built with a barrel fitting on one end for secure cable attachment.
Long cable assembly. Overall cable length supports a wide range of brake cable applications.
Cross-references Dorman - First Stop C95026, Standard Ignition 7850 and 157.95026 for the same application. See all 9.
Raybestos Element3 BC95026 Parking Brake Cable
The Raybestos Element3 BC95026 parking brake cable is built for rear brake service on select Chevrolet and GMC medium-duty applications. It features a 0.125 cable diameter, a barrel fitting on end 1, and an overall cable length of 134.470 inches with a housing length of 107.950 inches for the listed fitments.
Key Features
- Parking brake cable for rear brake hardware service
- Raybestos Element3 product line for application-specific brake components
- Cable diameter: 0.125
- Cable fitting type, end 1: Barrel
- Cable fitting size, end 2: 0.375
- Overall cable length: 134.470
- Overall housing length: 107.950
- Cross-reference: Dorman - First Stop C95026
Application Details
Compatible with rear parking brake service on 1993-1996 Chevrolet P30 and 1993-1996 GMC P3500 models with GM brake code JF9 and cab configuration noted in the fitment data. This Raybestos BC95026 cable is listed for the rear position and matches the specified 52-5/16 inch length requirement in the vehicle notes.
The Element3 line focuses on brake parts that align with the original application requirements, making BC95026 a direct-reference choice when replacing a worn or damaged parking brake cable on Chevrolet P30 and GMC P3500 platforms. The part number BC95026 is also useful when cross-checking catalog listings for the same rear parking brake application.
What This Part Helps Address
- Parking brake that will not hold the vehicle securely
- Stretched, frayed, or seized rear parking brake cable
- Uneven parking brake engagement at the rear wheels
- Loss of proper cable tension in the parking brake system
- Brake warning concerns caused by cable wear or binding
Installation Notes and Tips
Verify the vehicle’s brake code, cab configuration, and rear application before ordering. Compare the original cable length, housing length, and end fitting style to the specifications listed for BC95026. Inspect related parking brake hardware, equalizers, and attachment points for wear before installation so the replacement cable can operate smoothly.
Quality Assurance
Raybestos Element3 brake components are cataloged for specific vehicle applications and dimensional requirements. BC95026 is listed with defined cable and housing measurements to support accurate parts matching for the stated Chevrolet and GMC fitments.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1996 | Chevrolet | P30 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
| 1996 | GMC | P3500 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
| 1995 | Chevrolet | P30 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
| 1995 | GMC | P3500 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
| 1994 | Chevrolet | P30 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
| 1994 | GMC | P3500 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
| 1993 | Chevrolet | P30 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
| 1993 | GMC | P3500 | Rear | GM Brake Code JF9; 52-5/16in Length; with Cab; Element3 |
