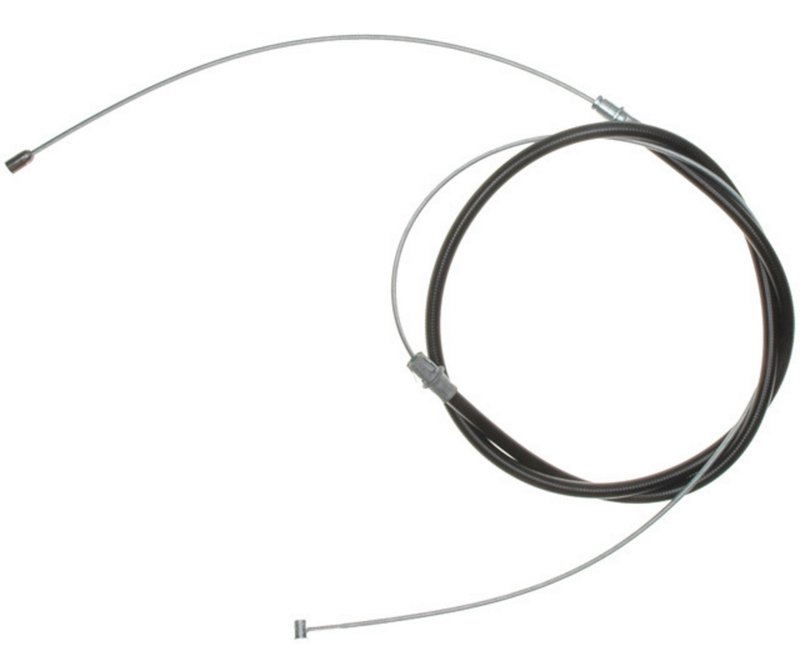

Raybestos BC95509 Parking Brake Cable - Front
| Brand | Raybestos BC95509 |
|---|---|
| Position | Front |
| Cable Diameter | 0.125 |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 92.810 |
| Cable Length, Overall | 235.735 |
| Housing Length, Overall | 46.000 |
| Housing Length, Overall | 116.840 |
| Product line | Element3 |
| Fits | Ford · 10 vehicles |
Element3 line. Raybestos brake hardware with a hammer-to-barrel cable design.
Parking brake cable. A dedicated cable for dependable brake system operation.
Overall cable length measures 92.810 inches for a precise fit.
Cross-references BBB Industries 8313, Dorman - First Stop C95509 and Four Seasons 168313 for the same application. See all 8.
Raybestos Element3 Parking Brake Cable BC95509
The Raybestos Element3 BC95509 parking brake cable is built for direct-fit service on select Ford F-250 applications. It uses a 0.125 cable diameter with a hammer fitting on one end and a barrel fitting on the other, along with an overall cable length of 92.810 inches and housing length of 46.000 inches.
For Ford F-250 owners servicing the parking brake system, this cable provides the correct fitment details needed for a precise replacement. The Element3 line focuses on application-specific brake components, and BC95509 is listed for front-position use on the model years shown below.
Key Features
- Raybestos Element3 parking brake cable
- Part number BC95509
- 0.125 cable diameter
- Hammer fitting at end 1 and barrel fitting at end 2
- Overall cable length: 92.810 inches
- Housing length: 46.000 inches
- Front-position fitment for select Ford F-250 models
Fitment Details
- Fits 1998-1999 Ford F-250, front
- Fits 1997 Ford F-250, front; fits vehicles under 8,500 lb. GVW
- Fits 1994-1996 Ford F-250, front; 92-13/16" length; over 8500 lb GVW
- Fits 1990-1992 Ford F-250, front; 92-13/16" length; over 8500 lb GVW
- Fits 1993 Ford F-250, front; 92-13/16" length
What This Cable Helps Address
- Parking brake cable stretch or loss of tension
- Broken or frayed cable strands
- Improper parking brake engagement
- Uneven or inconsistent parking brake release
- Replacement needs during brake system repair on a Ford F-250
Installation Notes and Tips
Verify the vehicle year, GVW rating, and front-position application before ordering. Match the cable length, housing length, and end fittings to the original part to confirm proper routing and attachment on the Ford F-250 parking brake system. This part cross-references Dorman - First Stop C95509 for the same application.
Quality Assurance
Raybestos Element3 brake components are cataloged with application-specific dimensions and fitment data to support accurate replacement selection. Part number BC95509 is listed with interchange references for direct comparison during brake service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1999 | Ford | F-250 | Front | Element3 |
| 1998 | Ford | F-250 | Front | Element3 |
| 1997 | Ford | F-250 | Front | Fits vehicles under 8,500 lb. GVW; Element3 |
| 1996 | Ford | F-250 | Front | 92-13/16" Length; Over 8500lb GVW; Element3 |
| 1995 | Ford | F-250 | Front | 92-13/16" Length; Over 8500lb GVW; Element3 |
| 1994 | Ford | F-250 | Front | 92-13/16" Length; Over 8500lb GVW; Element3 |
| 1993 | Ford | F-250 | Front | 92-13/16" Length; Element3 |
| 1992 | Ford | F-250 | Front | 92-13/16" Length; Over 8500lb GVW; Element3 |
| 1991 | Ford | F-250 | Front | 92-13/16" Length; Over 8500lb GVW; Element3 |
| 1990 | Ford | F-250 | Front | 92-13/16" Length; Over 8500lb GVW; Element3 |
