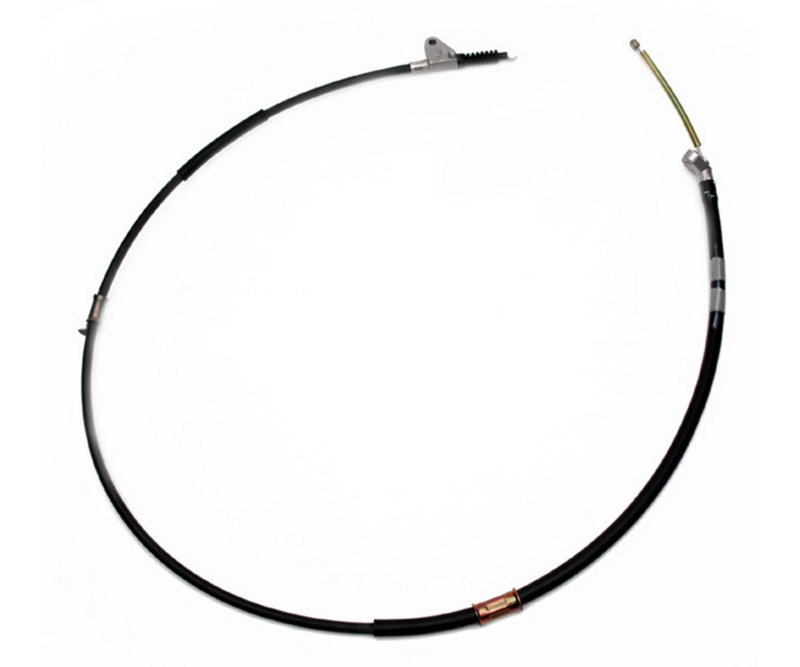

Raybestos BC96235 Parking Brake Cable - Rear Left

Raybestos Element3 Parking Brake Cable BC96235

Raybestos Element3 BC96235 is a rear left parking brake cable for select Toyota and Lexus applications. It is built with a 0.125 cable diameter, hammer fitting on one end, barrel fitting on the other, and overall cable and housing dimensions that match the listed vehicle applications.

Element3 Product Line Details

The Raybestos Element3 line focuses on application-specific brake components for repair work that needs accurate fitment and consistent pedal and parking brake operation. For this parking brake cable, the listed dimensions and end fittings are key to matching the original routing and connection points on the vehicle.

Key Features

• Parking brake cable for the rear left position
• 0.125 cable diameter for the specified application
• Hammer fitting at end 1 and barrel fitting at end 2
• Overall cable length: 164.465 in. / 64.750 in.
• Overall housing length: 144.780 in. / 57.000 in.
• Direct fit for select Toyota Camry, Toyota Solara, Lexus ES330, and Lexus ES300 applications
• Raybestos part number BC96235

Detailed Description

Raybestos BC96235 is a parking brake cable engineered for rear left fitment on select 2002-2008 Toyota and Lexus vehicles. Confirmed applications include 2002-2003 Lexus ES300, 2004-2006 Lexus ES330, 2002-2005 Toyota Camry, 2004-2008 Toyota Solara, and 2005 Toyota Camry with the listed wheel and stability control notes. This part cross-references Dorman - First Stop C660053 for the same application. The BC96235 cable uses a hammer end and barrel end configuration to match the original parking brake connection points and routing requirements on the vehicle.

Common Repair Uses

• Parking brake cable fraying or binding
• Parking brake lever not holding the vehicle
• Uneven rear parking brake engagement
• Corrosion or damage along the cable housing
• Incorrect cable length or end fitting match during brake repair

Installation Notes and Tips

Verify rear left position, cable length, housing length, and end fitting style before installation. Match the vehicle notes exactly, including 15-inch wheel and electronic stability control requirements where listed for 2005 Toyota Camry. Inspect the routing path, retaining points, and related brake hardware for wear before installing the new cable. Confirm the parking brake adjustment after installation so the system engages and releases correctly.

Quality Assurance

Raybestos Element3 brake components are built around application-specific fitment data and OE-style dimensional matching for brake service work. BC96235 is listed with multiple direct interchange references, including NTK 25192 and Dorman - First Stop C660053, supporting accurate replacement selection for the specified Toyota Camry, Toyota Solara, and Lexus applications.
