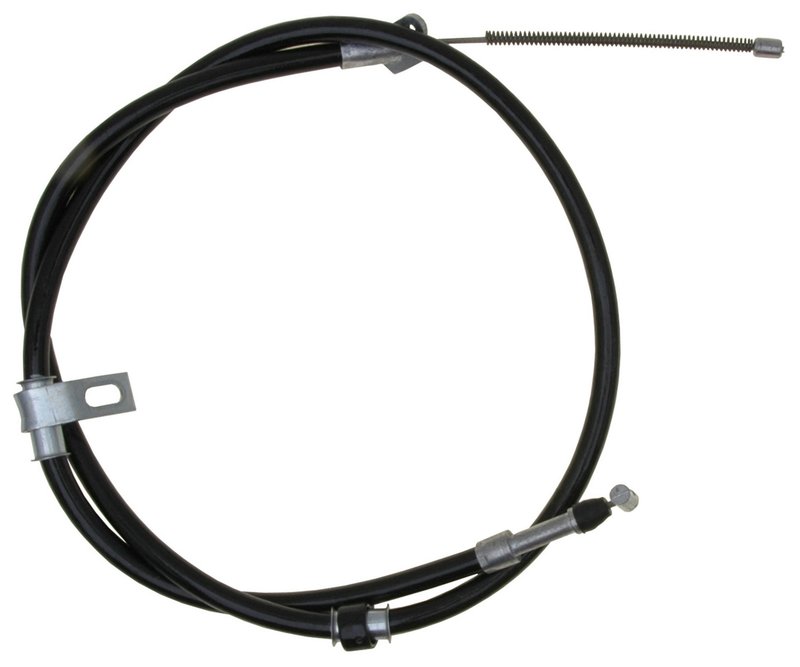

Raybestos BC96670 Parking Brake Cable - Rear Left
| Brand | Raybestos BC96670 |
|---|---|
| Position | Rear Left |
| Cable Fitting Type, End 1 | Barrel |
| Cable Fitting Type, End 2 | Hammer |
| Cable Length, Overall | 66.000 |
| Cable Length, Overall | 167.640 |
| Housing Length, Overall | 57.000 |
| Housing Length, Overall | 144.780 |
| Product line | Element3 |
| Fits | Toyota · 7 vehicles |
Element3 line. Raybestos hardware focused on dependable parking brake cable performance.
Barrel and hammer fittings. Built with distinct end fittings for straightforward cable connection.
Overall cable length. Measures 66 inches with a 57-inch housing for the right fit.
Cross-references Dorman - First Stop C660817, Febi-Bilstein 25203 and 3225203 for the same application. See all 4.
Parking Brake Cable for Toyota Matrix
Raybestos Element3 parking brake cable BC96670 is built for rear left applications on select Toyota Matrix models. It uses a barrel fitting on one end and a hammer fitting on the other, with overall cable and housing dimensions listed for accurate replacement matching.
Key Features
- Raybestos Element3 parking brake cable for rear left fitment
- End 1 fitting type: barrel
- End 2 fitting type: hammer
- Overall cable length: 66.000 in. / 167.640 cm
- Overall housing length: 57.000 in. / 144.780 cm
- Direct-fit replacement reference: BC96670
Element3 Product Line
Raybestos Element3 is the brand line used for brake components engineered around application-specific fitment and consistent brake system service. For this parking brake cable, the listed dimensions and fitting styles help match the original routing and connection points on the vehicle.
Detailed Description
This parking brake cable is listed for 2004 Toyota Matrix rear left and 2005-2008 Toyota Matrix rear left applications. If you are replacing a worn or stretched parking brake cable on a Toyota Matrix, BC96670 provides the specified barrel-to-hammer end configuration and the measured cable and housing lengths needed for a proper match. This part cross-references Dorman - First Stop C660817 for the same application.
Common Problems It Can Help Solve
- Parking brake lever travel that feels excessive
- Uneven or weak parking brake engagement
- Cable binding caused by corrosion or wear
- Loss of parking brake hold on the rear left side
- Incorrect replacement cable length or end fitting match
Installation Notes and Tips
Verify the rear left routing, end fittings, and measured lengths before installation. Compare the removed cable to BC96670 to confirm the barrel and hammer ends match the original hardware layout. Check the parking brake system for corrosion, seized guides, or damaged attachment points before final adjustment.
Quality Assurance
Raybestos brake components are cataloged by application and dimensional data to support accurate replacement selection. Confirm fitment for 2004 Toyota Matrix and 2005-2008 Toyota Matrix rear left before ordering.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Toyota | Matrix | Base | — | Rear Left | Element3 |
| 2007 | Toyota | Matrix | Base | — | Rear Left | Element3 |
| 2006 | Toyota | Matrix | Base | FWD | Rear Left | Element3 |
| 2006 | Toyota | Matrix | XR | FWD | Rear Left | Element3 |
| 2005 | Toyota | Matrix | Base | FWD | Rear Left | Element3 |
| 2005 | Toyota | Matrix | XR | FWD | Rear Left | Element3 |
| 2004 | Toyota | Matrix | Base | FWD | Rear Left | Raybestos Element 3 |
| No rows match your filter. | ||||||
