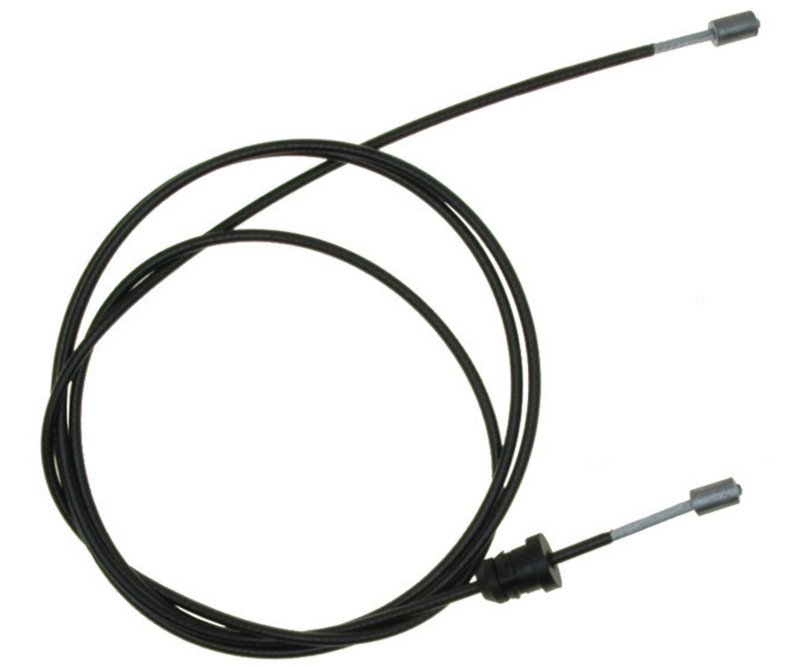

Raybestos BC96696 Parking Brake Cable - Center
| Brand | Raybestos BC96696 |
|---|---|
| Position | Center |
| Cable Diameter | 0.125 |
| Cable Fitting Size | 0.312 |
| Cable Fitting Type | Barrel |
| Cable Fitting Type, End 1 | Barrel |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 70.380 |
| Cable Length, Overall | 178.765 |
| Housing Length, Overall | 69.250 |
| Housing Length, Overall | 175.895 |
| Product line | Element3 |
| Fits | Ford · 17 vehicles |
Barrel fittings. Both ends use barrel-style cable fittings for a secure connection.
Parking brake cable. A direct replacement hardware part for the brake system.
Element3 line. Part of Raybestos' Element3 product line.
Cross-references BC3Z2A793P and BC3Z2A793Z for the same application. See all 2.
Raybestos Element3 Parking Brake Cable BC96696
Raybestos Element3 BC96696 is a parking brake cable built for direct-fit service on select Ford Super Duty applications. It uses barrel-style fittings at both ends and the specified cable and housing dimensions to support proper parking brake linkage operation.
The Element3 line focuses on application-specific brake components for service work where fit, routing, and connection style matter. For this parking brake cable, the measured overall cable length is 178.765 in. and the housing length is 175.895 in., with a 0.125 in. cable diameter and 0.312 in. barrel fittings.
Key Features
- Part number BC96696 for brake cable replacement reference
- Raybestos Element3 product line
- Parking brake cable with barrel fittings at both ends
- Cable diameter: 0.125 in.
- Cable fitting size: 0.312 in.
- Overall cable length: 178.765 in. / 70.380 in.
- Overall housing length: 175.895 in. / 69.250 in.
Fitment Details
- Fits 2011-2016 Ford F-250 Super Duty, Intermediate, with 165"/419mm wheelbase; Raybestos Element 3
- Fits 2011-2016 Ford F-350 Super Duty, Center, Element3
This part cross-references Ford service numbers BC3Z2A793P and BC3Z2A793Z for the same application.
Used For Common Brake Issues
- Restoring parking brake cable tension after cable stretch
- Replacing a seized or corroded parking brake cable
- Correcting parking brake engagement problems
- Addressing broken or frayed cable movement
- Repairing inconsistent parking brake release action
Installation Notes
Verify cable routing, end fitting style, and measured length against the original part before installation. Confirm the vehicle position listed in fitment, since this cable is specified for Intermediate and Center applications on select Ford Super Duty trucks. Check the parking brake mechanism, equalizer, and related hardware for wear before final assembly.
Quality Assurance
Raybestos Element3 brake components are built around application-specific fitment and dimensional accuracy for service replacement use. BC96696 is listed with confirmed vehicle fitment for 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty applications.
| Year | Make | Model | Submodel | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Ford | F-250 Super Duty | — | — | Intermediate | with 165"/419mm Wheelbase; Raybestos Element 3 |
| 2016 | Ford | F-350 Super Duty | XL | 164.8" | Center | Element3 |
| 2016 | Ford | F-350 Super Duty | XLT | 164.8" | Center | Element3 |
| 2015 | Ford | F-250 Super Duty | — | — | Intermediate | with 165"/419mm Wheelbase; Raybestos Element 3 |
| 2015 | Ford | F-350 Super Duty | XL | 164.8" | Center | Element3 |
| 2015 | Ford | F-350 Super Duty | XLT | 164.8" | Center | Element3 |
| 2014 | Ford | F-250 Super Duty | — | — | Intermediate | with 165"/419mm Wheelbase; Raybestos Element 3 |
| 2014 | Ford | F-350 Super Duty | XL | 164.8" | Center | Element3 |
| 2014 | Ford | F-350 Super Duty | XLT | 164.8" | Center | Element3 |
| 2013 | Ford | F-250 Super Duty | — | — | Intermediate | with 165"/419mm Wheelbase; Raybestos Element 3 |
| 2013 | Ford | F-350 Super Duty | XL | 164.8" | Center | Element3 |
| 2013 | Ford | F-350 Super Duty | XLT | 164.8" | Center | Element3 |
| 2012 | Ford | F-250 Super Duty | — | — | Intermediate | with 165"/419mm Wheelbase; Raybestos Element 3 |
| 2012 | Ford | F-350 Super Duty | XL | 164.8" | Center | Element3 |
| 2012 | Ford | F-350 Super Duty | XLT | 164.8" | Center | Element3 |
| 2011 | Ford | F-250 Super Duty | — | — | Intermediate | with 165"/419mm Wheelbase; Raybestos Element 3 |
| 2011 | Ford | F-350 Super Duty | — | 164.8" | Center | Element3 |
