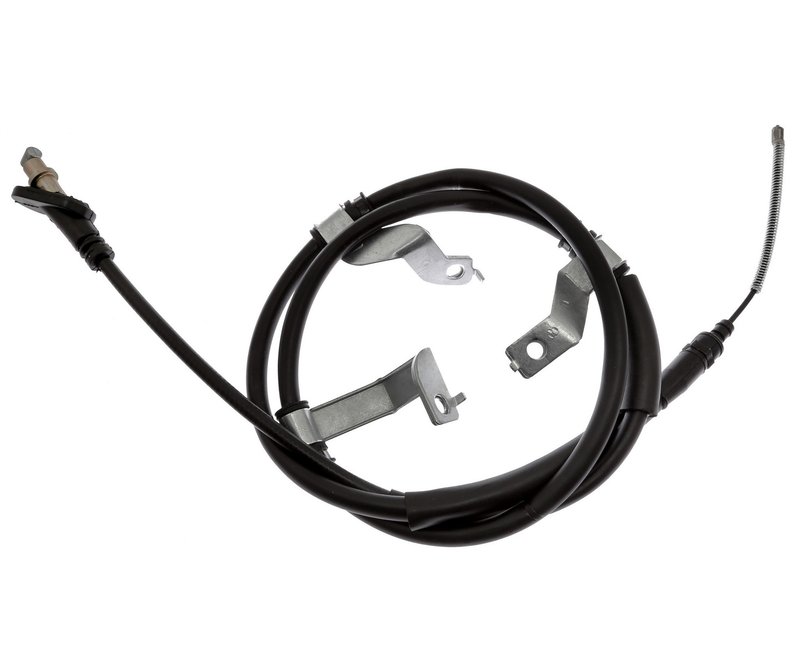

Raybestos BC97013 Parking Brake Cable - Rear Right
| Brand | Raybestos BC97013 |
|---|---|
| Position | Rear Right |
| Cable Diameter | 3.000 |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 74.840 |
| Cable Length, Overall | 190.095 |
| Housing Length, Overall | 65.670 |
| Housing Length, Overall | 166.800 |
| Product line | Element3 |
| Fits | Hyundai · 5 vehicles |
Element3 line. Raybestos hardware for dependable parking brake cable replacement.
Hammer and barrel ends. Built with distinct end fittings for secure cable connection.
Cable assembly. Includes a 3.000 diameter cable with overall housing length.
Cross-references 597702E500 for the same application. See all 1.
Raybestos Element3 Parking Brake Cable BC97013
Raybestos Element3 BC97013 is a parking brake cable for the rear right position on select Hyundai Tucson models. It uses a hammer fitting on one end and a barrel fitting on the other, with overall cable and housing dimensions that match the listed applications for accurate routing and engagement.
Key Features
- Parking brake cable for rear right installation
- Raybestos Element3 line for application-specific brake service parts
- Hammer fitting, end 1
- Barrel fitting, end 2
- Cable diameter: 3.000
- Overall cable length: 190.095 / 74.840
- Overall housing length: 166.800 / 65.670
- Cross-reference: Hyundai 597702E500
Detailed Description
BC97013 is built for brake system service on the rear right side and is listed for 2005-2009 Hyundai Tucson applications. It fits 2005-2006 Hyundai Tucson, rear right; fits 2007-2008 Hyundai Tucson, rear right with disc rear brakes, 15-inch brake setup, ABS, and Raybestos Element 3; and fits 2009 Hyundai Tucson, rear right with AWD Mode and Element3. The Raybestos Element3 product line focuses on application-matched brake components for service work where cable length, housing length, and end fittings must align with the original routing and connection points. This part number, BC97013, is the correct reference when matching the listed Tucson rear right parking brake cable application.
What It Helps Fix
- Parking brake cable stretch or loss of tension
- Parking brake engagement that does not hold properly
- Binding or inconsistent cable movement
- Incorrect cable fitment after brake service
- Rear right parking brake connection wear on listed Tucson models
Installation Notes and Tips
Verify the rear right position, end fittings, and listed cable and housing lengths before installation. Confirm the vehicle year, brake configuration, and notes shown for your Hyundai Tucson application, especially for 2007-2008 models with disc rear brakes, 15-inch brakes, ABS, and 2009 models with AWD Mode. Compare the original cable routing and attachment points to BC97013 before final assembly.
Quality Assurance
Raybestos Element3 parts are cataloged for specific brake applications and dimensional match-up. BC97013 is listed against Hyundai OE reference 597702E500 for the same application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Hyundai | Tucson | Rear Right | w/ AWD Mode; Element3 |
| 2008 | Hyundai | Tucson | Rear Right | Rr Brake - Disc-15 Inch; Abs (Anti Lock Brk Sys); Raybestos Element 3 |
| 2007 | Hyundai | Tucson | Rear Right | Rr Brake - Disc-15 Inch; Abs (Anti Lock Brk Sys); Raybestos Element 3 |
| 2006 | Hyundai | Tucson | Rear Right | Raybestos Element 3 |
| 2005 | Hyundai | Tucson | Rear Right | Raybestos Element 3 |
