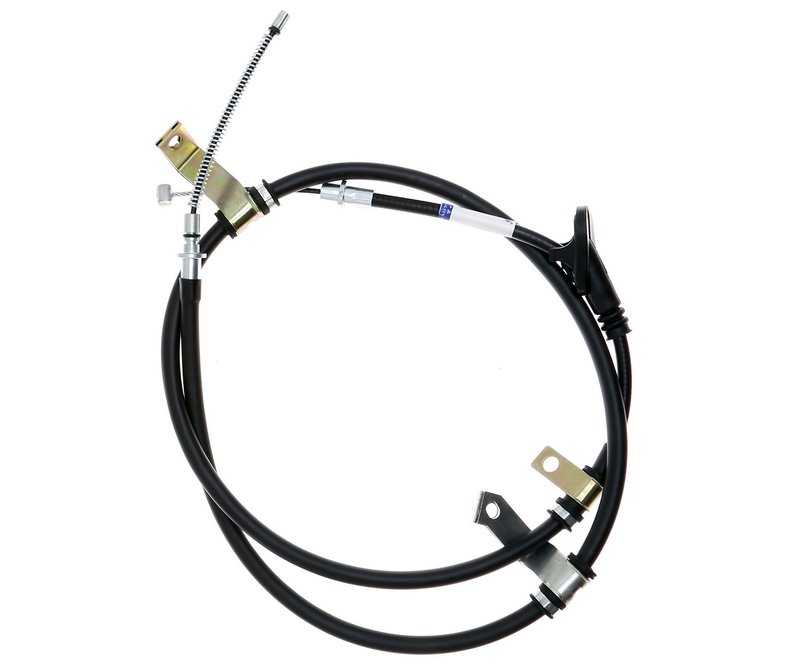

Raybestos BC97188 Parking Brake Cable - Rear Left
| Brand | Raybestos BC97188 |
|---|---|
| Position | Rear Left |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 72.400 |
| Cable Length, Overall | 183.895 |
| Housing Length, Overall | 60.430 |
| Housing Length, Overall | 153.490 |
| Product line | Element3 |
| Fits | Hyundai · 6 vehicles |
Element3 line. Raybestos engineering for dependable brake hardware performance.
Hammer-to-barrel ends. Built with distinct cable fittings for secure attachment.
Parking brake cable. Provides the connection needed for parking brake operation.
Cross-references 143365 and 1930050 for the same application. See all 2.
Raybestos Element3 Parking Brake Cable for Sonata
The Raybestos Element3 BC97188 parking brake cable is built for rear-left applications on select 2000-2005 Hyundai Sonata models. It uses a hammer fitting on one end and a barrel fitting on the other, with overall cable and housing dimensions that match the listed application.
Key Features
- Parking brake cable for rear left placement
- End 1 fitting type: hammer
- End 2 fitting type: barrel
- Overall cable length: 183.895 mm / 72.400 in
- Overall housing length: 153.490 mm / 60.430 in
- Raybestos Element3 line for application-specific brake service
- Part number BC97188 for ordering and cross-reference use
Product Details
Raybestos BC97188 is a parking brake cable for 2000-2005 Hyundai Sonata rear left applications. The Element3 product line focuses on brake service parts with fitment-specific dimensions and end fittings, helping ensure the cable routes and connects as specified for the vehicle. If you are replacing a worn or damaged parking brake cable on a Hyundai Sonata, this part number BC97188 provides the listed hammer-to-barrel configuration and measured lengths needed for the rear left position.
This part cross-references Monroe Shocks & Struts (e.g., 143365, 1930050) for the same application.
What It Helps Address
- Parking brake cable that no longer holds properly
- Sticking or binding parking brake operation
- Frayed, stretched, or corroded cable condition
- Incorrect cable length or end fitting match during brake repair
- Rear-left parking brake service on a Hyundai Sonata
Installation Notes and Tips
Verify rear-left fitment before installation by matching the vehicle year, cable end fittings, and overall length to the original part. For 2000-2005 Hyundai Sonata service, confirm the hammer and barrel ends align with the existing routing and attachment points. Inspect related parking brake components, guides, and contact points for wear before completing the repair.
Quality Assurance
Raybestos Element3 brake components are built around application-specific fitment and dimensional accuracy for brake service. BC97188 is listed for 2000-2005 Hyundai Sonata rear left use and should be matched to the vehicle’s original cable configuration before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Hyundai | Sonata | Rear Left | Element3 |
| 2004 | Hyundai | Sonata | Rear Left | Element3 |
| 2003 | Hyundai | Sonata | Rear Left | Element3 |
| 2002 | Hyundai | Sonata | Rear Left | Element3 |
| 2001 | Hyundai | Sonata | Rear Left | Element3 |
| 2000 | Hyundai | Sonata | Rear Left | Element3 |
