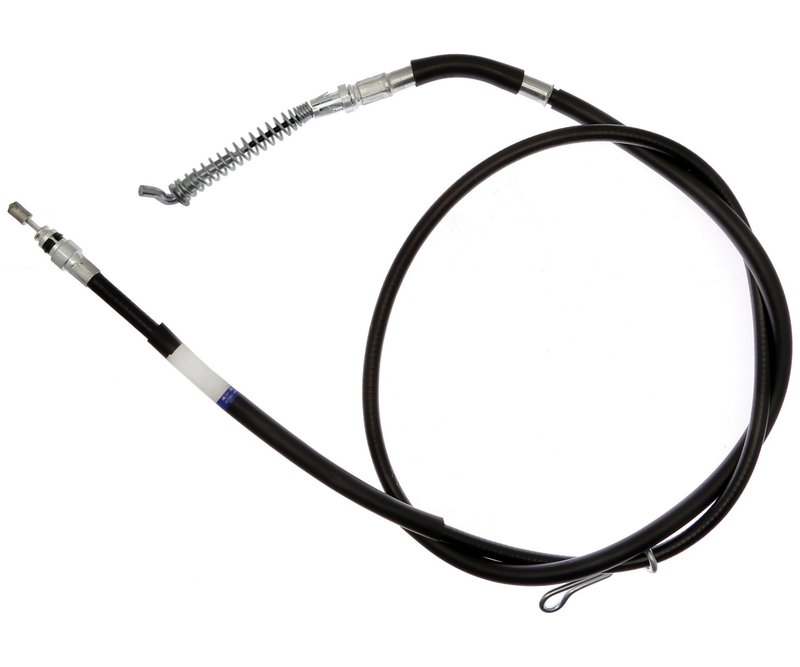

Raybestos BC97305 Parking Brake Cable - Rear Left

Raybestos Element3 Parking Brake Cable BC97305

Raybestos Element3 BC97305 is a rear left parking brake cable built for specific Ford Super Duty applications with dual rear wheels. It uses a hook fitting on one end and a barrel fitting on the other, with overall cable and housing dimensions listed for accurate replacement matching.

For buyers searching for a parking brake cable for 2000-2004 Ford F-350 Super Duty or 2003-2004 Ford F-250 Super Duty rear left applications, BC97305 provides the fitment details needed to confirm the correct part before ordering.

Key Features

• Brand: Raybestos
• Product line: Element3
• Part number: BC97305
• Parking brake cable for rear left position
• Cable fitting type, end 1: Hook
• Cable fitting type, end 2: Barrel
• Overall cable length: 191.590 in. / 75.430 in.
• Overall housing length: 171.500 in. / 67.520 in.

Product Details

Raybestos Element3 BC97305 is part of the Element3 line, a Raybestos product family focused on brake service components with application-specific fitment and dimensional accuracy. This parking brake cable is specified for the rear left side on select Ford Super Duty trucks, including 2000-2004 Ford F-350 Super Duty and 2003-2004 Ford F-250 Super Duty models with dual rear wheels. It also applies to 2001-2002 Ford F-350 Super Duty vehicles except self-leveling suspension, and 2000 Ford F-350 Super Duty vehicles from 1/4/00 with the same configuration notes.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. The BC97305 part number is also useful when verifying interchange references such as BC660078 and C9759 during brake cable replacement searches.

Common Problems This Part Can Address

• Parking brake cable fraying or binding
• Loss of parking brake engagement at the rear left wheel
• Uneven parking brake operation on dual rear wheel trucks
• Sticking or seized cable movement from wear or corrosion
• Incorrect cable length or end fitting match during replacement

Installation Notes

Confirm the vehicle configuration before installation: this cable is listed for rear left applications only and is tied to dual rear wheel fitment notes on the supported Ford Super Duty models. Match the hook and barrel end fittings, along with the listed cable and housing lengths, to the removed part before installation. Verify whether the vehicle is equipped with self-leveling suspension, since some listed applications exclude that configuration.

Quality Assurance

Raybestos Element3 parts are cataloged with application-specific dimensions and fitment data to support accurate brake service selection. BC97305 is identified by direct vehicle coverage and interchange references for parts lookup and verification.
