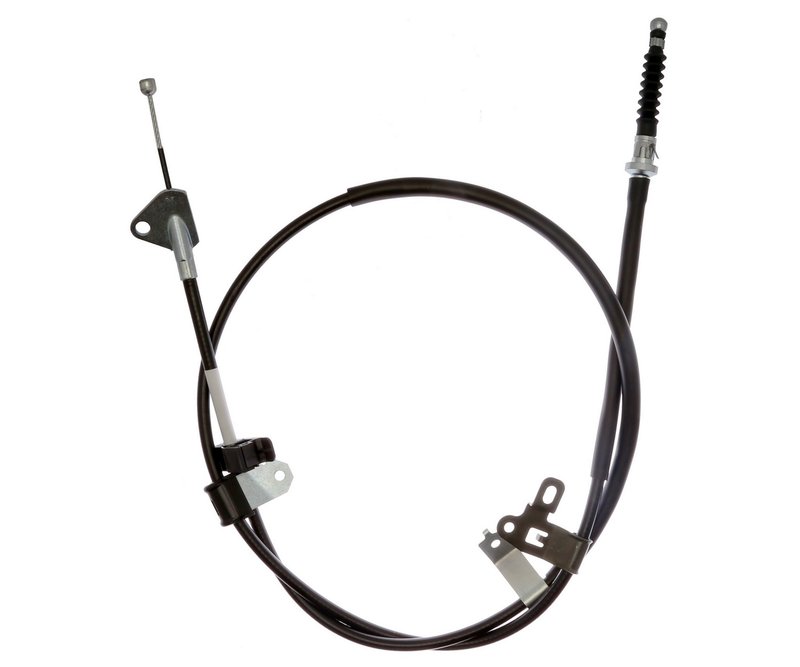

Raybestos BC97348 Parking Brake Cable - Rear Left
| Brand | Raybestos BC97348 |
|---|---|
| Position | Rear Left |
| Cable Fitting Type, End 1 | Barrel |
| Cable Fitting Type, End 2 | Ball |
| Cable Length, Overall | 72.910 |
| Cable Length, Overall | 185.190 |
| Housing Length, Overall | 64.760 |
| Housing Length, Overall | 164.490 |
| Product line | Element3 |
| Fits | Toyota · 8 vehicles |
Element3 line. Raybestos hardware engineered for dependable parking brake performance.
Barrel and ball ends. Distinct cable fittings for a secure, precise connection.
Parking brake cable with a 72.910 in. overall cable length.
Cross-references 25237, 3225237 and 4643002150 for the same application. See all 5.
Raybestos Element3 Parking Brake Cable BC97348
The Raybestos Element3 BC97348 parking brake cable is built for rear left applications on select Toyota models. It uses a barrel fitting on one end and a ball fitting on the other, with overall cable length measured at 185.190 and housing length at 164.490 for the primary listing, plus 72.910 and 64.760 in the alternate measurement set provided.
Key Features
- Parking brake cable for rear left placement
- Barrel fitting, end 1
- Ball fitting, end 2
- Overall cable length: 185.190 / 72.910
- Housing length: 164.490 / 64.760
- Raybestos Element3 line for OE-style brake service parts
- Cross-reference part numbers include 25237 and BC660028 for the same application
Fitment
- Fits 2009-2014 Toyota Matrix, rear left.
- Fits 2009-2010 Toyota Corolla, rear left.
Detailed Description
Raybestos BC97348 is a rear left parking brake cable for Toyota Corolla and Toyota Matrix applications listed above. The Element3 product line focuses on brake service components that align with original equipment-style fit and function, making this cable a direct replacement choice when servicing the parking brake system on a 2009-2010 Toyota Corolla or a 2009-2014 Toyota Matrix. The listed barrel-to-ball end configuration and the provided cable and housing measurements help match the cable to the vehicle’s parking brake routing and attachment points.
This part number, BC97348, is also referenced by interchange numbers 25237 and BC660028 for the same application.
What It Helps Address
- Parking brake cable stretch that affects lever travel
- Broken or frayed cable strands
- Sticking or uneven rear parking brake engagement
- Corrosion-related cable binding
- Loss of parking brake hold on the rear left side
Installation Notes and Tips
Verify rear left routing, end fittings, and the listed cable and housing lengths before installation. Compare the removed cable to BC97348 to confirm attachment style and overall dimensions on the Toyota Corolla or Toyota Matrix application. Inspect related parking brake components, including levers, equalizers, and rear brake hardware, so the new cable operates smoothly after installation.
Quality Assurance
Raybestos Element3 brake parts are positioned as OE-style service components for brake system repair and replacement. BC97348 is specified with defined fitment, fitting types, and dimensional data to support accurate parts selection for the listed Toyota applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Toyota | Matrix | — | 1.8L | L4 | Rear Left | Element3 |
| 2013 | Toyota | Matrix | Base | — | — | Rear Left | Element3 |
| 2012 | Toyota | Matrix | Base | — | — | Rear Left | Element3 |
| 2011 | Toyota | Matrix | Base | — | — | Rear Left | Element3 |
| 2010 | Toyota | Corolla | — | 2.4L | L4 | Rear Left | Element3 |
| 2010 | Toyota | Matrix | Base | — | — | Rear Left | Element3 |
| 2009 | Toyota | Corolla | — | 2.4L | L4 | Rear Left | Element3 |
| 2009 | Toyota | Matrix | Base | — | — | Rear Left | Element3 |
