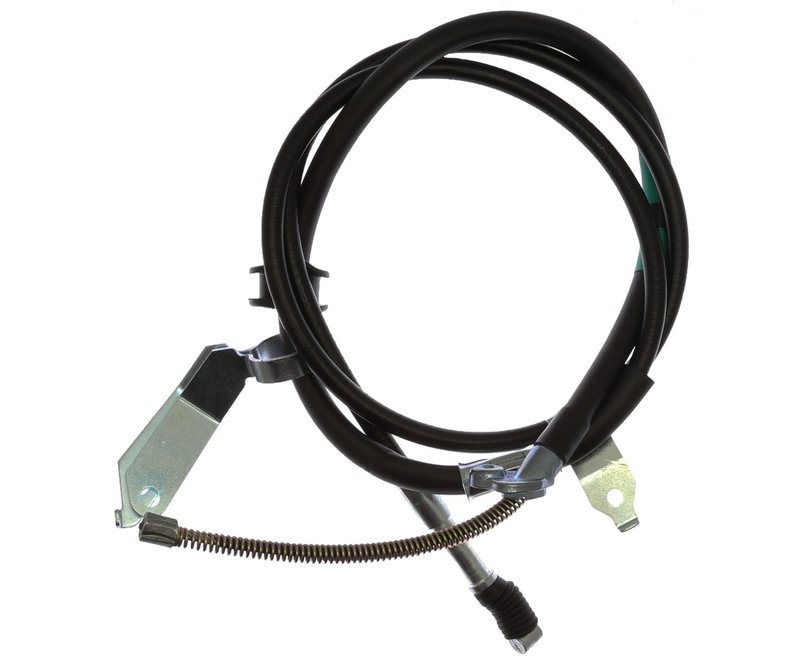

Raybestos BC97389 Parking Brake Cable - Rear Right
| Brand | Raybestos BC97389 |
|---|---|
| Position | Rear Right |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 170.485 |
| Cable Length, Overall | 67.120 |
| Housing Length, Overall | 144.195 |
| Housing Length, Overall | 56.770 |
| Product line | Element3 |
| Fits | Toyota · 8 vehicles |
OE direct replacement. Parking brake cable with hammer and barrel fittings for straightforward installation.
Overall cable length is 67.120 in., with a 56.770 in. housing length.
Element3 line. Raybestos brake hardware engineered for dependable parking brake function.
Cross-references 4642012560 for the same application. See all 1.
Raybestos Element3 Parking Brake Cable BC97389
Raybestos Element3 BC97389 is a rear right parking brake cable for select 2003-2006 Toyota Matrix models. It is built with a hammer fitting on one end and a barrel fitting on the other, with overall cable and housing dimensions listed for accurate replacement matching.
Key Features
- Parking brake cable for the rear right position
- Hammer fitting, end 1
- Barrel fitting, end 2
- Overall cable length: 170.485 in. (67.120 in.)
- Overall housing length: 144.195 in. (56.770 in.)
- Direct fit for 2003-2006 Toyota Matrix, rear right
- Raybestos Element3 part number BC97389
Product Details
The Raybestos Element3 line focuses on replacement brake components that match OE-style fitment and application-specific dimensions. BC97389 is a parking brake cable for the rear right side of the Toyota Matrix, with the listed hammer and barrel end fittings helping confirm the correct routing and attachment style before installation. This part number, BC97389, is also a useful reference when verifying the correct rear parking brake cable for 2003-2006 Toyota Matrix vehicles.
This part cross-references 4642012560 for the same application.
Common Issues It Can Address
- Parking brake cable that is stretched or no longer holds tension
- Uneven rear parking brake engagement
- Binding or sticking parking brake operation
- Corrosion-related cable wear on the rear right side
- Incorrect cable length or end fitting match during replacement
Installation Notes and Tips
Verify the rear right position, end fittings, and measured cable and housing lengths against the removed cable before installation. Confirm routing follows the original path on the Toyota Matrix and check the parking brake mechanism, equalizer, and rear brake hardware for wear that could affect cable performance. BC97389 should be matched to the exact application listed for 2003-2006 Toyota Matrix, rear right.
Quality Assurance
Raybestos Element3 brake components are built around application-specific replacement standards and dimensional accuracy for brake service work. Use the part number BC97389 and the listed fitment details to confirm the correct rear right parking brake cable before completing the repair.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Matrix | Base | FWD | Rear Right | Element3 |
| 2006 | Toyota | Matrix | XR | FWD | Rear Right | Element3 |
| 2005 | Toyota | Matrix | Base | AWD | Rear Right | Element3 |
| 2005 | Toyota | Matrix | XR | AWD | Rear Right | Element3 |
| 2004 | Toyota | Matrix | Base | AWD | Rear Right | Element3 |
| 2004 | Toyota | Matrix | XR | AWD | Rear Right | Element3 |
| 2003 | Toyota | Matrix | Base | AWD | Rear Right | Element3 |
| 2003 | Toyota | Matrix | XR | AWD | Rear Right | Element3 |
