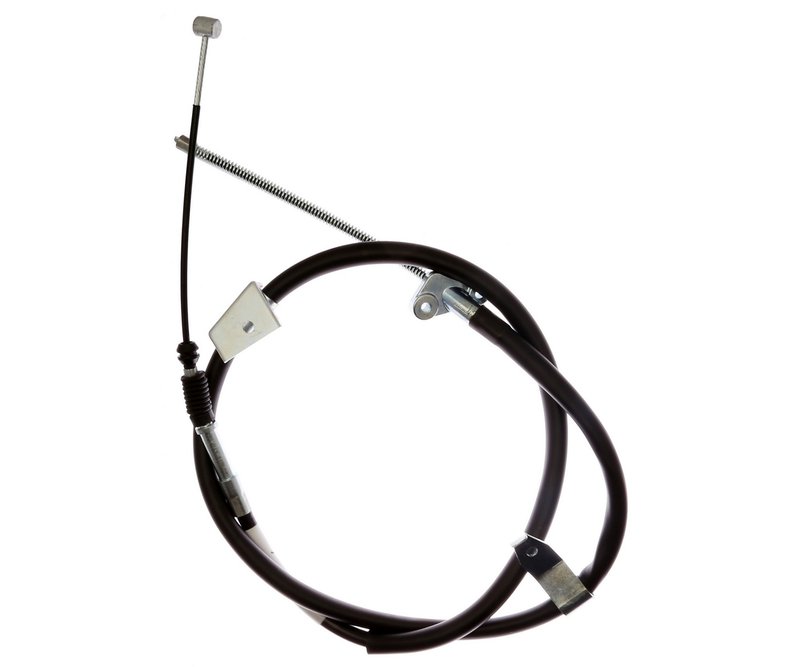

Raybestos BC97390 Parking Brake Cable - Rear Left
| Brand | Raybestos BC97390 |
|---|---|
| Position | Rear Left |
| Cable Fitting Type, End 1 | Hammer |
| Cable Fitting Type, End 2 | Barrel |
| Cable Length, Overall | 62.320 |
| Cable Length, Overall | 158.295 |
| Housing Length, Overall | 43.940 |
| Housing Length, Overall | 111.610 |
| Product line | Element3 |
| Fits | Toyota · 4 vehicles |
Hammer-to-barrel ends. Parking brake cable with distinct fittings for secure connection.
Element3 line. Raybestos engineering focused on dependable brake hardware performance.
Cross-references 4643008020, BC660821 and BCA660821 for the same application. See all 3.
Raybestos Element3 Parking Brake Cable BC97390
Raybestos Element3 BC97390 is a rear left parking brake cable built for direct-fit service on select Toyota Sienna models with rear drum brakes. It uses a hammer fitting on one end and a barrel fitting on the other, with overall cable and housing dimensions that support OE-style routing and engagement.
The Element3 line focuses on application-specific brake components for consistent fit and dependable parking brake operation. For this application, BC97390 is matched to the rear left position on 2004-2007 Toyota Sienna vehicles equipped with rear drum brakes.
Key Features
- Parking brake cable for the rear left position
- Hammer fitting, end 1
- Barrel fitting, end 2
- Overall cable length: 158.295 in. / 62.320 in.
- Overall housing length: 111.610 in. / 43.940 in.
- Fits 2004-2007 Toyota Sienna, rear left
- Compatible with vehicles using rear drum brakes
Detailed Description
Raybestos BC97390 is a replacement parking brake cable for 2004-2007 Toyota Sienna models in the rear left position. The cable is built with a hammer-style fitting at one end and a barrel-style fitting at the other, helping it match the original connection points used in the parking brake system. The listed cable and housing lengths provide the dimensional reference needed for accurate service on the Toyota Sienna brake hardware layout. This part cross-references Toyota OE number 4643008020 for the same application.
Common Issues This Part Can Address
- Parking brake cable that no longer releases smoothly
- Excessive slack in the rear parking brake linkage
- Corrosion or wear in the original cable assembly
- Uneven parking brake engagement at the rear left wheel
- Replacement needs during rear drum brake service on a Toyota Sienna
Installation Notes and Tips
Verify rear left fitment before installation and confirm the vehicle uses rear drum brakes. Compare the original cable routing, end fittings, and overall lengths to the replacement part before final assembly. After installation, check parking brake travel and engagement at the lever or pedal, then confirm the rear brakes release fully.
Quality Assurance
Raybestos Element3 is a brake-focused product line with application-specific replacement parts for service work on select vehicles. BC97390 is engineered to match the listed fitment for 2004-2007 Toyota Sienna rear left parking brake service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Toyota | Sienna | Rear Left | Fits vehicles with rear drum brakes.; Element3 |
| 2006 | Toyota | Sienna | Rear Left | Fits vehicles with rear drum brakes.; Element3 |
| 2005 | Toyota | Sienna | Rear Left | Fits vehicles with rear drum brakes.; Element3 |
| 2004 | Toyota | Sienna | Rear Left | Fits vehicles with rear drum brakes.; Element3 |
