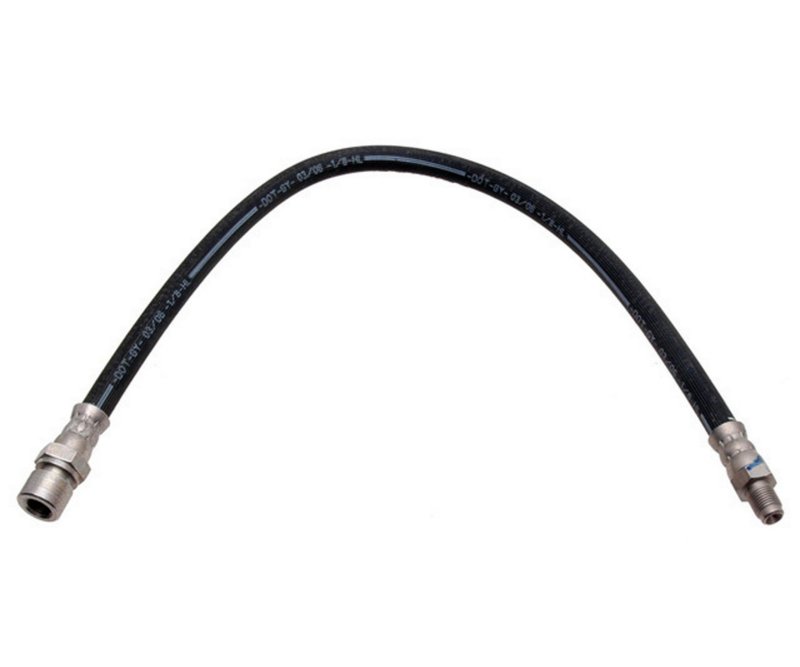

Raybestos BH27298 Brake Hydraulic Hose - Front

Raybestos Element3 Brake Hydraulic Hose BH27298

Raybestos Element3 BH27298 is a front brake hydraulic hose for Volkswagen Beetle applications from 1950 through 1964. It is built with a female thread ISO fitting on one end, a male thread fitting on the other, and an overall length of 18.700 inches for the specified front installation.

Key Features

• Brake hydraulic hose for front Volkswagen Beetle fitment
• Raybestos Element3 product line for brake system service parts
• Female thread - ISO fitting at end 1
• Male thread fitting at end 2
• Overall hose length: 18.700 inches
• No gasket or seal included

Element3 Product Line

The Raybestos Element3 line covers brake service components built for direct replacement applications. For this Volkswagen Beetle brake hose, the focus is on correct hose routing, fitting style, and length to match the front hydraulic connection used in the listed model years.

Detailed Description

BH27298 is a brake hydraulic hose for front Volkswagen Beetle models from 1950-1964. This hose uses a female thread ISO fitting on one end and a male thread fitting on the other, with an overall length of 18.700 inches. It is a direct-fit brake hose choice for front brake hydraulic service on the Volkswagen Beetle and is also referenced by cross-number applications such as Dorman - First Stop H27298.

This part cross-references Dorman - First Stop H27298 for the same application.

What It Helps Address

• Cracked or aging front brake hose material
• Brake fluid seepage at hose connections
• Restricted hydraulic flow in the front brake circuit
• Soft or inconsistent brake pedal response caused by hose deterioration
• Service replacement for front brake hose wear on Volkswagen Beetle models

Installation Notes and Tips

• Verify the fitting style on both ends before installation: female thread ISO on end 1 and male thread on end 2.
• Confirm the 18.700-inch overall length matches the original routing and mounting points.
• Inspect adjoining brake lines, clips, and hard-line connections for corrosion or damage before installing the new hose.
• Bleed the brake system after installation to remove air from the hydraulic circuit.
• Check for leaks and proper hose clearance through full steering and suspension travel.

Quality Assurance

Raybestos Element3 brake components are cataloged for direct replacement use in defined vehicle applications. BH27298 is listed for front Volkswagen Beetle fitment from 1950-1964, supporting accurate part selection for brake hose service.
