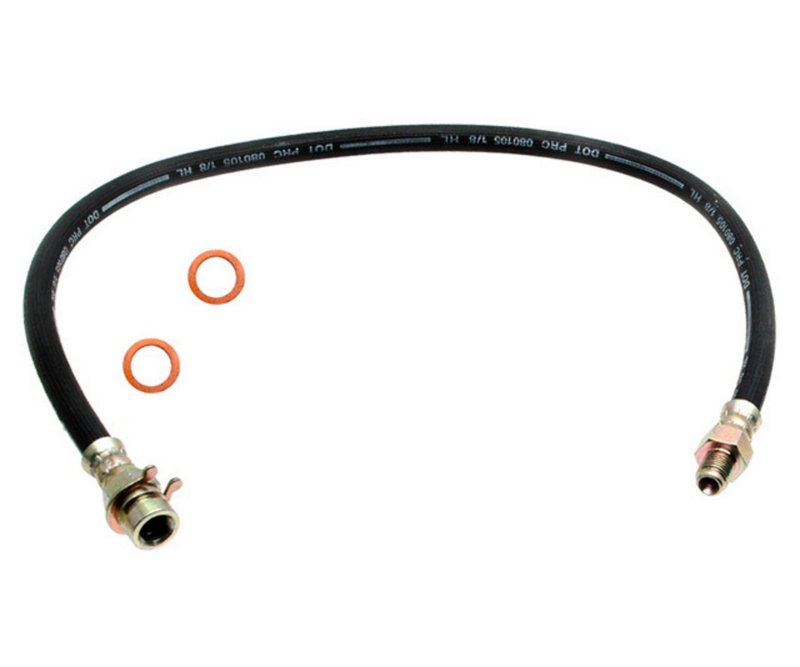

Raybestos BH31669 Brake Hydraulic Hose - Rear
| Brand | Raybestos BH31669 |
|---|---|
| Position | Rear |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Male Thread |
| Gasket Or Seal Included | No |
| Hose Length, Overall | 24.400 |
| Product line | Element3 |
| Fits | Ford · 7 vehicles |
OE direct replacement. Brake hydraulic hose with SAE female and male threaded ends.
24.4-inch overall length for a precise hydraulic connection.
Element3 line. Raybestos engineering focused on dependable brake performance.
Cross-references ACI 88279, Centric Parts 150.65361 and Dorman - First Stop H31669 for the same application. See all 11.
Raybestos Element3 BH31669 Brake Hose
The Raybestos Element3 BH31669 is a rear brake hydraulic hose built for direct replacement service on select Ford trucks. It features a female SAE threaded end on one side, a male threaded end on the other, and an overall length of 24.400 inches for the specified application.
Key Features
- Brake hydraulic hose for rear brake service
- Overall length: 24.400 inches
- End 1 fitting: female thread, SAE
- End 2 fitting: male thread
- No gasket or seal included
- Raybestos Element3 line construction
Element3 Product Line
Raybestos Element3 parts are positioned for replacement brake service where fit, connection style, and application-specific dimensions matter. The BH31669 follows the Element3 naming used for brake components matched to the listed vehicle application, including 1960-1966 Ford F-250 rear brake hose service.
Detailed Description
Use the Raybestos BH31669 when replacing a rear brake hydraulic hose on 1960-1966 Ford F-250 models. This hose is specified with SAE female-thread and male-thread end fittings, making it important to match the original connection style before installation. The 24.400-inch overall length supports the rear brake routing used on the listed Ford F-250 applications. This part cross-references Dorman - First Stop H31669 for the same application.
Common Replacement Reasons
- Cracked or aging rear brake hose
- Brake fluid seepage at the hose connection
- Restricted brake fluid flow from internal hose wear
- Soft or inconsistent rear brake pedal response tied to hose condition
- Need for a direct-fit rear brake hydraulic hose on a Ford F-250
Installation Notes
Verify the vehicle’s rear hose routing, thread style, and overall length before installation. Confirm the fittings match the existing brake line connections on the 1960-1966 Ford F-250, rear position. Inspect adjoining hard lines, brackets, and sealing surfaces during replacement, and bleed the brake system after installation according to service procedures.
Quality Assurance
Raybestos brake components are built for application-specific replacement service. Confirm part number BH31669 against the vehicle’s rear brake hose requirements before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1966 | Ford | F-250 | Rear | Element3 |
| 1965 | Ford | F-250 | Rear | Element3 |
| 1964 | Ford | F-250 | Rear | Element3 |
| 1963 | Ford | F-250 | Rear | Element3 |
| 1962 | Ford | F-250 | Rear | Element3 |
| 1961 | Ford | F-250 | Rear | Element3 |
| 1960 | Ford | F-250 | Rear | Element3 |
