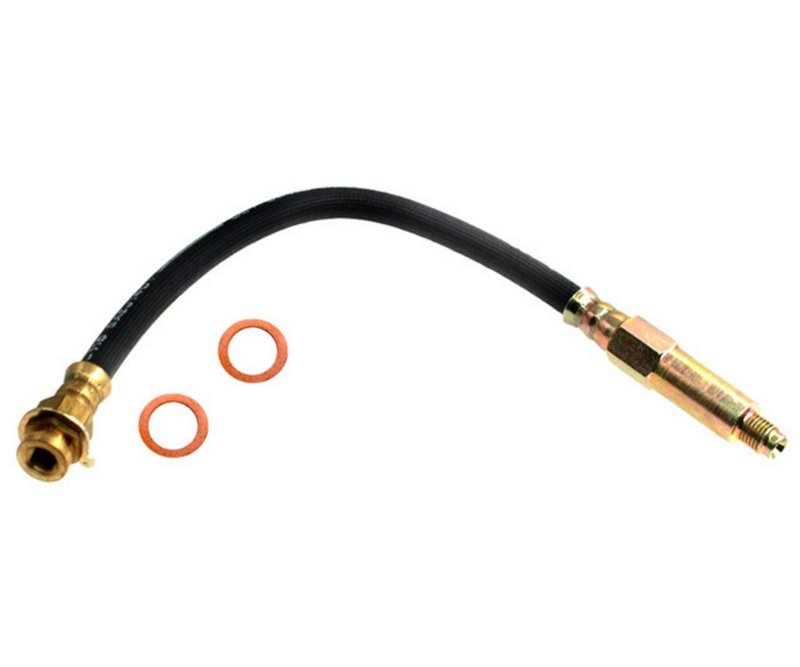

Raybestos BH36503 Brake Hydraulic Hose - Front or Rear
| Brand | Raybestos BH36503 |
|---|---|
| Position | Rear |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Male Thread |
| Gasket Or Seal Included | No |
| Hose Length, Overall | 13.500 |
| Product line | Element3 |
| Fits | Dodge, Plymouth, and Chrysler · 7 vehicles |
Brake hydraulic hose. Engineered for dependable hydraulic brake fluid transfer.
Element3 line. Raybestos brake components are built for consistent performance.
Cross-references ACI 88414, Carlson 7112 and Dorman - First Stop H36503 for the same application. See all 17.
Raybestos Element3 Brake Hydraulic Hose BH36503
The Raybestos Element3 BH36503 brake hydraulic hose is built for direct-fit service on select Chrysler and Dodge applications. It is a brake hose assembly with a 13.500-inch overall length, female thread SAE fitting on one end, and male thread fitting on the other for the specified vehicle positions.
Key Features
- Brake hydraulic hose for hydraulic brake system service
- Overall length: 13.500 inches
- End 1 fitting type: female thread - SAE
- End 2 fitting type: male thread
- No gasket or seal included
- Raybestos Element3 product line
Element3 Product Line
Raybestos Element3 focuses on brake service parts engineered for direct replacement applications. For this hose, the Element3 designation identifies the specific fitment and configuration used on the listed Chrysler Imperial and Dodge Charger vehicles, helping match the original hydraulic routing and connection style.
Detailed Description
BH36503 is a Raybestos brake hydraulic hose for 1963-1966 Chrysler Imperial, front, and 1967-1969 Dodge Charger, rear. This part number is also referenced by Dorman - First Stop H36503 and Four Seasons 36503 for the same application. Use BH36503 when replacing a worn, cracked, or leaking brake hose on these Chrysler and Dodge models. The hose length and threaded end styles are specified to match the listed brake line connection points.
Common Problems This Hose Can Address
- Brake fluid seepage at a damaged hose
- Cracking or dry rot in an aging rubber brake hose
- Soft or inconsistent brake pedal feel caused by hose deterioration
- Restricted brake fluid flow from an internally weakened hose
- Corrosion or wear at the threaded hose connection points
Installation Notes and Tips
Verify the vehicle position before installation: Fits 1963-1966 Chrysler Imperial, front, and Fits 1967-1969 Dodge Charger, rear. Confirm the hose length, thread style, and routing match the original part before tightening the connections. Inspect adjacent brake lines, clips, and mounting points for wear or corrosion during service, and bleed the brake system after replacement according to factory procedure.
Quality Assurance
Raybestos is a recognized brake parts brand, and the Element3 line is positioned for direct replacement brake service on the listed applications. BH36503 is specified for the confirmed Chrysler Imperial and Dodge Charger fitments shown above.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1969 | Dodge | Charger | Manual | Rear | Element3 |
| 1968 | Dodge | Charger | Manual | Rear | Element3 |
| 1967 | Dodge | Charger | Manual | Rear | Element3 |
| 1966 | Chrysler | Imperial | — | Front | Element3 |
| 1965 | Chrysler | Imperial | — | Front | Element3 |
| 1964 | Chrysler | Imperial | — | Front | Element3 |
| 1963 | Chrysler | Imperial | — | Front | Element3 |
