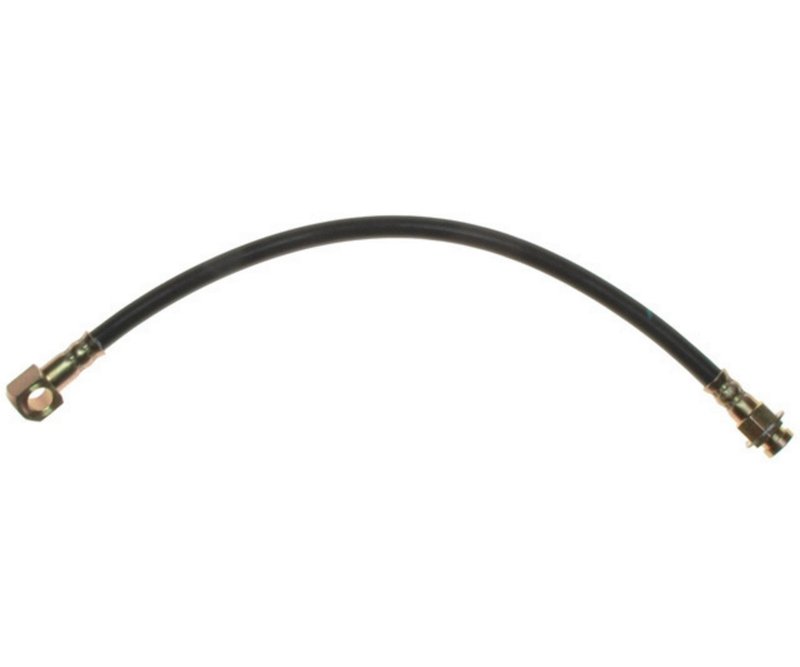

Raybestos BH36715 Brake Hydraulic Hose - Front
| Brand | Raybestos BH36715 |
|---|---|
| Position | Front |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 15.300 |
| Product line | Element3 |
| Fits | Chevrolet and Pontiac · 4 vehicles |
Brake hydraulic hose. Engineered for dependable hydraulic fluid transfer in the braking system.
SAE female-thread end. Provides a secure, standard connection at one hose end.
Banjo end fitting. Supports a compact, reliable brake line connection.
Cross-references Centric Parts 150.62016, Dorman - First Stop H78097 and Four Seasons 36715 for the same application. See all 15.
Raybestos Element3 Brake Hydraulic Hose BH36715
The Raybestos Element3 BH36715 brake hydraulic hose is built for front brake applications on select 1972-1973 Chevrolet Camaro and Pontiac Firebird models. It features a female thread SAE fitting on one end, a banjo fitting on the other, and an overall length of 15.300 inches for the specified front position.
Key Features
- Brake hydraulic hose for front brake routing
- Female thread - SAE fitting, end 1
- Banjo fitting, end 2
- Overall hose length: 15.300 inches
- Gasket or seal included: yes
- Raybestos Element3 line for brake service applications
Product Details
Raybestos Element3 brake hoses are part of a brake-focused product line built for direct replacement use in hydraulic brake systems. BH36715 is specified for front installation on 1972-1973 Chevrolet Camaro and 1972-1973 Pontiac Firebird models, making it a targeted choice for classic F-body brake service. This part cross-references Dorman - First Stop H78097 for the same application.
Use BH36715 when servicing the front brake hose connection on a 1972 Chevrolet Camaro, front; 1973 Chevrolet Camaro, front; 1972 Pontiac Firebird, front; or 1973 Pontiac Firebird, front. The listed fittings and hose length help match the original hydraulic routing and connection style for these vehicles.
What It Helps Address
- Cracked or deteriorated front brake hose material
- Brake fluid seepage at the hose connection points
- Restricted hydraulic flow from an aged hose
- Soft or inconsistent brake pedal feel caused by hose wear
- Service replacement for front brake hose routing on classic Camaro and Firebird models
Installation Notes and Tips
Confirm the end fittings, hose length, and front position before installation. Inspect the mating brake line, banjo connection, and sealing surfaces for wear or corrosion, and replace damaged components as needed. After installation, bleed the brake system according to the vehicle service procedure and verify there are no leaks at either connection.
Quality Assurance
Raybestos Element3 brake components are engineered for brake system service with application-specific fitment details. BH36715 is identified by part number BH36715 and is supported by listed interchange references for catalog matching, including Centric Parts 150.62016.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1973 | Chevrolet | Camaro | Front | Element3 |
| 1973 | Pontiac | Firebird | Front | Element3 |
| 1972 | Chevrolet | Camaro | Front | Element3 |
| 1972 | Pontiac | Firebird | Front | Element3 |
