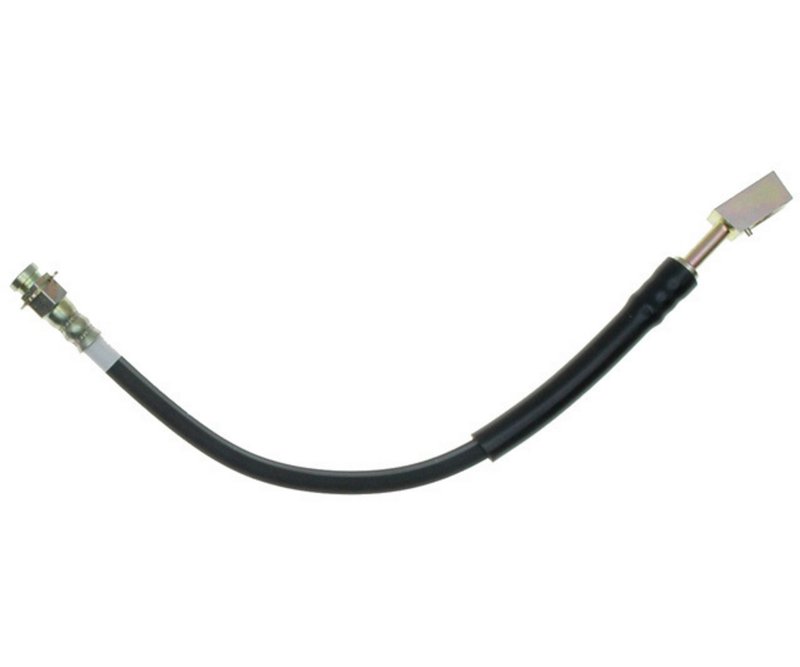

Raybestos BH36718 Brake Hydraulic Hose - Front

Raybestos Element3 BH36718 Brake Hydraulic Hose

Raybestos Element3 BH36718 is a front brake hydraulic hose for select Dodge trucks and SUVs from 1974-1977. It is built with a female thread SAE fitting on one end, a banjo fitting on the other, and includes a gasket or seal for the connection point.

The Element3 product line focuses on brake components that match the needs of everyday repair work, with application-specific fitment for classic Dodge B100, B200, B300, D100, D150, D200, D300, and Ramcharger front brake service. If you are replacing a worn front brake hose on a 1975-1977 Dodge D100 or a 1974-1977 Dodge Ramcharger, BH36718 provides the correct hose style and connection layout.

Key Features

• Front brake hydraulic hose for select Dodge applications
• Overall hose length: 15.500 inches
• Female thread SAE fitting at end 1
• Banjo fitting at end 2
• Gasket or seal included
• Raybestos Element3 part number BH36718

Detailed Description

BH36718 is a Raybestos brake hydraulic hose engineered for front brake routing on specific 1974-1977 Dodge vehicles. The hose uses a female thread SAE connection on one end and a banjo fitting on the other, which helps match the original brake line interface on the listed applications. This part cross-references Dorman - First Stop H80952 for the same application. It also cross-references Centric Parts 150.67006 for the same application.

Compatible With 1975-1977 Dodge B100, front; 1975-1977 Dodge B200, front; 1975-1977 Dodge B300, front; 1975-1977 Dodge D100, front; 1977 Dodge D150, front; 1975-1977 Dodge D200, front; 1975-1977 Dodge D300, front; and 1974-1977 Dodge Ramcharger, front. Use BH36718 when replacing a front brake hose on these Dodge models and when the existing hose uses the same fitting style and length.

What This Brake Hose Helps Address

• Cracked or aging front brake hose rubber
• Brake fluid seepage at the hose connection
• Restricted brake fluid flow from an internally deteriorated hose
• Soft or inconsistent brake pedal feel caused by hose wear
• Service replacement for damaged front brake hose routing on listed Dodge models

Installation Notes and Tips

Verify the vehicle year, model, and front brake hose connection style before installation. Confirm the female thread SAE and banjo ends match the original hose, and compare the 15.500-inch overall length to the removed part. Inspect the sealing surfaces and replace any worn or damaged mating components as needed. After installation, bleed the brake system according to the vehicle service procedure and check all connections for leaks.

Quality Assurance

Raybestos Element3 brake components are organized for application-specific brake service, and BH36718 is listed with direct fitment data for the Dodge B100, B200, B300, D100, D150, D200, D300, and Ramcharger front brake applications shown above.
