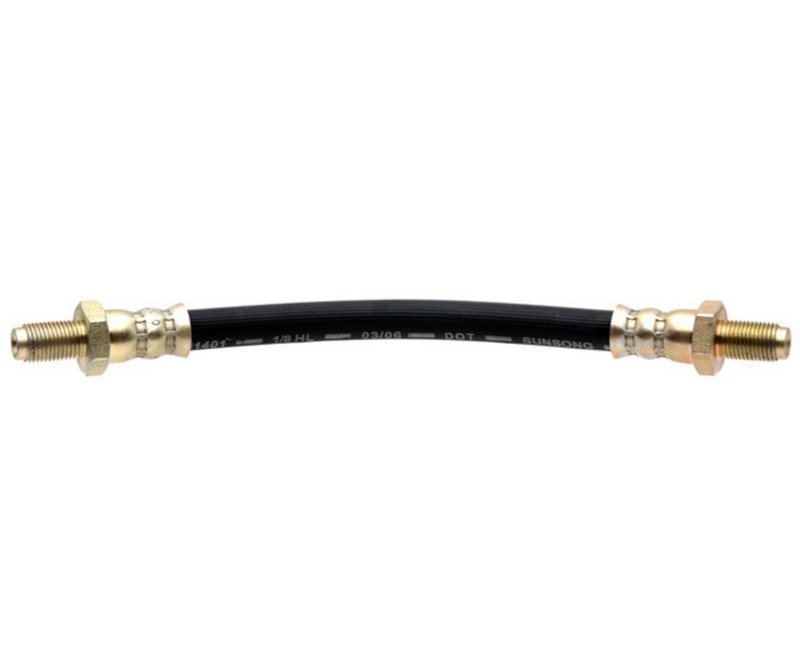

Raybestos BH36739 Brake Hydraulic Hose - Front, Front Lower or Front Outer
| Brand | Raybestos BH36739 |
|---|---|
| Position | Front Outer |
| Fitting Type, End 1 | Male Thread |
| Fitting Type, End 2 | Male Thread |
| Gasket Or Seal Included | No |
| Hose Length, Overall | 7.900 |
| Product line | Element3 |
| Fits | Toyota · 17 vehicles |
Element3 line. Brake hydraulic hose with male-thread fittings at both ends.
7.9-inch overall length for a precise hydraulic connection.
Cross-references Centric Parts 150.44002, Dorman - HELP 77369 and Raybestos Brakes H1164 for the same application. See all 55.
Raybestos Element3 Brake Hydraulic Hose BH36739
The Raybestos Element3 BH36739 brake hydraulic hose is built for specific Toyota front brake applications where a direct-fit hydraulic line is needed. With male thread fittings on both ends and an overall length of 7.900, it is a fitment-specific replacement for select Toyota Celica and Toyota Corolla models.
Key Features
- Brake hydraulic hose for front brake line service
- Male thread fitting type at end 1 and end 2
- Overall hose length: 7.900
- No gasket or seal included
- Raybestos Element3 product line
- Part number BH36739
Element3 Product Line
Raybestos Element3 focuses on brake components for repair and replacement applications. In this line, BH36739 is specified for select Toyota front brake positions, including front outer and front lower locations, with fitment matched to the listed vehicle applications.
Detailed Description
BH36739 is a Raybestos brake hydraulic hose for Toyota brake service where the original hose routing and threaded end connections must match the vehicle’s front brake layout. This part number, BH36739, is listed for 1982-1985 Toyota Celica, front outer; 1971-1975 Toyota Celica, front lower; 1971-1974 Toyota Corolla, front lower; 1971-1972 Toyota Corolla, front; and 1970 Toyota Corolla, front and front lower from 5/70. This part cross-references Dorman - HELP 77369 for the same application.
Common Issues This Part May Address
- Cracked or deteriorated brake hose rubber
- Brake fluid seepage at the hose connection
- Restricted hydraulic flow from an aging hose
- Soft or inconsistent brake pedal feel caused by hose wear
- Service replacement for damaged front brake hose routing
Installation Notes and Tips
Verify the vehicle’s year, model, and front brake position before ordering. Match the male thread fittings and overall hose length to the original hose, and inspect adjoining hard lines, brackets, and connection points for wear or corrosion during installation. Confirm proper routing so the hose does not twist, stretch, or contact moving suspension components.
Quality Assurance
Raybestos Element3 brake components are cataloged for specific vehicle applications to support accurate replacement selection. Confirm fitment against the listed Toyota Celica and Toyota Corolla applications before installation.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1985 | Toyota | Celica | Supra | Front Outer | Element3 |
| 1984 | Toyota | Celica | Supra | Front Outer | Element3 |
| 1983 | Toyota | Celica | Supra | Front Outer | Element3 |
| 1982 | Toyota | Celica | Supra | Front Outer | Element3 |
| 1975 | Toyota | Celica | — | Front Lower | Element3 |
| 1974 | Toyota | Celica | — | Front Lower | Element3 |
| 1974 | Toyota | Corolla | — | Front Lower | Element3 |
| 1973 | Toyota | Celica | — | Front Lower | Element3 |
| 1973 | Toyota | Corolla | — | Front Lower | Element3 |
| 1972 | Toyota | Celica | — | Front Lower | Element3 |
| 1972 | Toyota | Corolla | — | Front | Element3 |
| 1972 | Toyota | Corolla | — | Front Lower | Element3 |
| 1971 | Toyota | Celica | — | Front Lower | Element3 |
| 1971 | Toyota | Corolla | — | Front | Element3 |
| 1971 | Toyota | Corolla | — | Front Lower | Element3 |
| 1970 | Toyota | Corolla | — | Front | From 5/70; Element3 |
| 1970 | Toyota | Corolla | — | Front Lower | From 5/70; Element3 |
