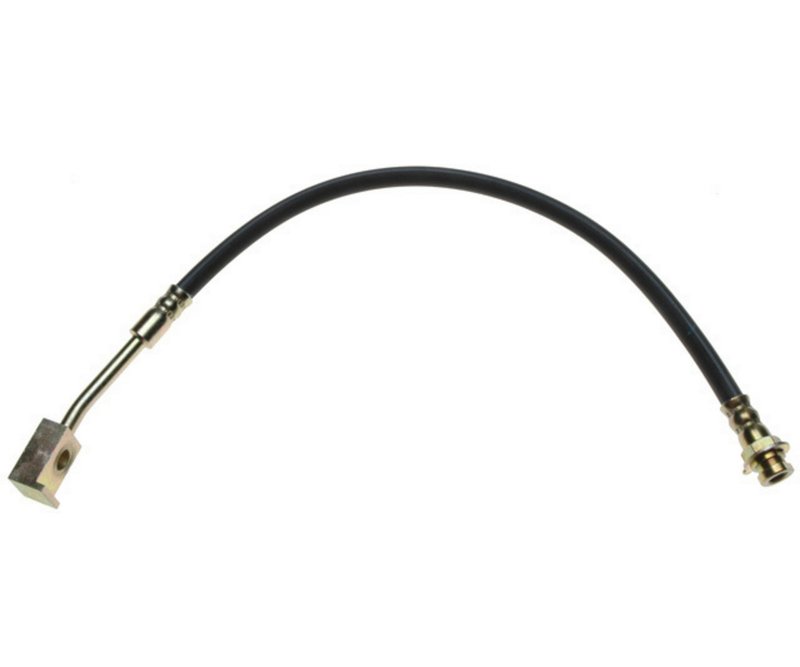

Raybestos BH36749 Brake Hydraulic Hose - Front Left

Raybestos Element3 Brake Hydraulic Hose BH36749

Raybestos Element3 BH36749 is a front left brake hydraulic hose built for specific Ford truck and van applications. It features a female thread SAE fitting on one end, a banjo fitting on the other, and an overall length of 18.800 inches for the listed fitments.

The Element3 product line focuses on brake components engineered for direct replacement use, and this hose follows that approach with application-specific end fittings and included gasket or seal. Raybestos BH36749 is listed for Ford E-100 Econoline, E-150 Econoline, F-100, F-150, and select F-250 front left positions.

Key Features

• Brake hydraulic hose for front left placement
• Female Thread - SAE fitting at end 1
• Banjo fitting at end 2
• Overall hose length: 18.800 inches
• Gasket or seal included: Yes
• Raybestos Element3 brake line component
• Part number: BH36749

Detailed Description

This Raybestos brake hose is designed for hydraulic brake routing on the front left side of the vehicle where the listed Ford applications require a female thread SAE connection and a banjo-style connection. The BH36749 part number is associated with multiple Ford truck and van platforms, including 1975-1983 Ford E-100 Econoline, 1975-1983 Ford E-150 Econoline, 1975-1979 Ford F-100, 1975-1979 Ford F-150, and select 1975-1979 Ford F-250 configurations. It is also cross-referenced to Centric Parts 150.65021 and Dorman - First Stop H80976 for the same application.

What It Helps Address

• Cracked or deteriorated front brake hose material
• Brake fluid seepage at hose fittings
• Restricted hydraulic flow from an aging hose
• Soft or inconsistent brake pedal feel caused by hose wear
• Service replacement for the original front left hose on listed Ford models

Installation Notes and Tips

Confirm the vehicle’s year, model, and front left brake hose routing before installation. Match the female thread SAE and banjo end fittings to the original hose, and verify the 18.800-inch overall length against the removed part. For 1975 Ford F-250, the listed application notes specify a 19-inch long hose; for 1976-1979 Ford F-250, the listed application notes specify under 6900 lb GVW. Always inspect mating surfaces and replace any worn sealing surfaces during brake service.

Quality Assurance

Raybestos BH36749 is part of the Element3 line and is cataloged with application-specific fitment for the listed Ford E-100 Econoline, E-150 Econoline, F-100, F-150, and F-250 front left positions. The included gasket or seal supports proper connection at installation, and the part is identified by Raybestos Brakes BH36749 for reference and verification.
