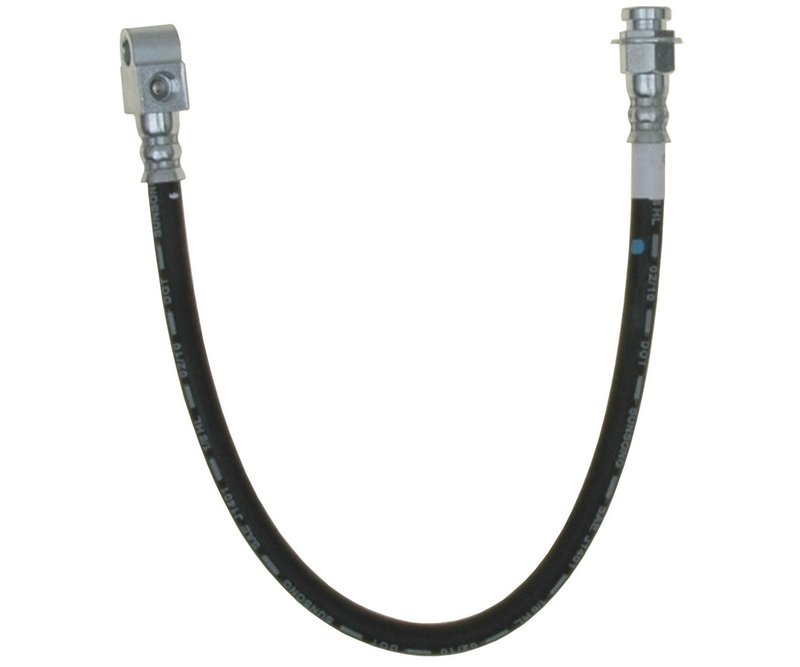

Raybestos BH36803 Brake Hydraulic Hose - Rear Center

Raybestos BH36803 Brake Hydraulic Hose for Jeep CJ5/CJ7

The Raybestos Element3 BH36803 brake hydraulic hose is built for rear center brake line service on select Jeep CJ5 and Jeep CJ7 applications. It is a direct-fit hydraulic hose for restoring brake fluid transfer where the original hose has aged, cracked, or restricted flow.

Key Features

• Brake hydraulic hose for rear center placement
• Overall length: 17.800
• End 1 fitting type: Block - SAE
• End 2 fitting type: Female Thread - SAE
• No gasket or seal included
• Raybestos Element3 line for brake system replacement parts

Element3 Product Line

Raybestos Element3 is the brand’s brake-focused product line for replacement components that match the needs of everyday brake service. The BH36803 follows that approach with application-specific hose construction and SAE-style end fittings for Jeep CJ5 and Jeep CJ7 rear center use.

Detailed Description

Use the Raybestos BH36803 when replacing a worn rear center brake hose on 1976-1980 Jeep CJ5 or 1976-1980 Jeep CJ7 models. This brake hydraulic hose is listed with a 17.800 overall length and SAE block-to-female-thread end configuration, making it a direct service part for maintaining proper hydraulic connection in the rear brake circuit. This part cross-references Dorman - First Stop H80026 for the same application.

Common Problems This Part Can Address

• Cracked or weathered rear brake hose material
• Restricted brake fluid movement from an aging hose
• Soft or inconsistent brake pedal feel caused by hose deterioration
• Brake fluid seepage at the hose connection points
• Service replacement for a damaged rear center hose on Jeep CJ5 and Jeep CJ7

Installation Notes and Tips

Verify the rear center routing and fitting style before installation. Inspect the hard lines, mounting points, and adjacent brake components for corrosion or damage before connecting the new hose. Because no gasket or seal is included, confirm the vehicle’s sealing requirements during brake service and bleed the hydraulic system after installation.

Quality Assurance

Raybestos brake components are engineered for brake system service and application-specific fitment. Confirm compatibility by matching the vehicle year, model, position, and fitting style to the listed specifications for the BH36803.
