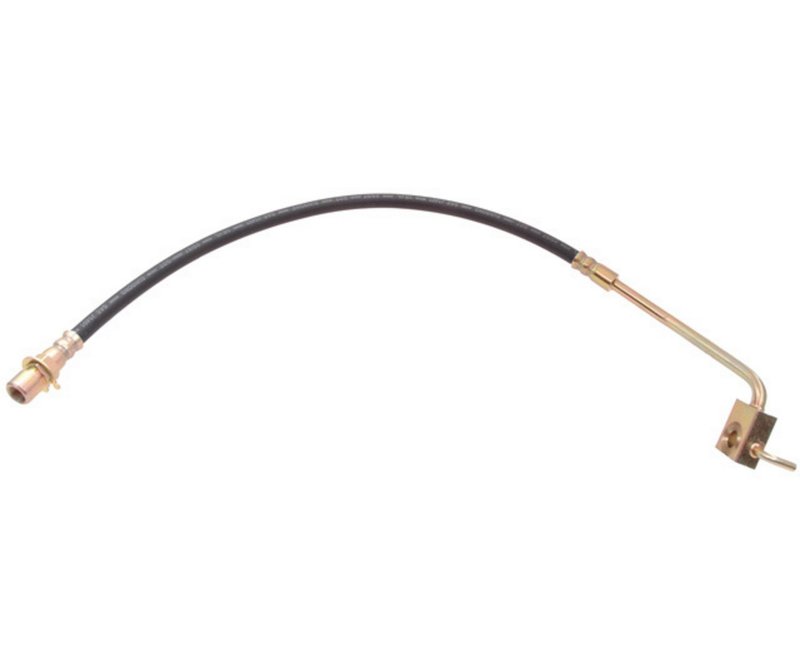

Raybestos BH36840 Brake Hydraulic Hose - Front Right
| Brand | Raybestos BH36840 |
|---|---|
| Position | Front Right |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Banjo |
| Gasket Or Seal Included | Yes |
| Hose Length, Overall | 23.500 |
| Product line | Element3 |
| Fits | Ford · 11 vehicles |
Element3 line. A trusted Raybestos brake hose series.
Seal included. Helps support a cleaner, more complete installation.
SAE female thread. Banjo end fitting for secure hydraulic connection.
Cross-references Centric Parts 150.65028, Dorman - First Stop H36840 and Dorman - HELP 77193 for the same application. See all 19.
Raybestos Element3 Brake Hose for Ford F-250/F-350
The Raybestos Element3 BH36840 brake hydraulic hose is built for front-right brake line replacement on select Ford trucks. It features a female thread SAE end on one side, a banjo fitting on the other, and an overall length of 23.500 inches for the listed applications.
Compatible with 1976-1979 Ford F-250 and 1979 Ford F-350 front right brake hose applications, this Raybestos BH36840 part number is a direct-fit option for restoring hydraulic brake connection integrity on the specified vehicles.
Key Features
- Brake hydraulic hose for front-right placement
- Female thread - SAE fitting at end 1
- Banjo fitting at end 2
- Overall hose length: 23.500 inches
- Gasket or seal included: Yes
- Raybestos Element3 line application
Detailed Product Information
Raybestos Element3 BH36840 is a brake hydraulic hose designed around the listed fitment and connection style for Ford F-250 and Ford F-350 front-right brake service. The Element3 product line is positioned for brake system replacement parts that match the required hose routing, end fittings, and sealing interface for the application. Use this hose when replacing a worn, leaking, or damaged front brake hose on the specified Ford truck models.
This part cross-references Dorman - First Stop H36840 and Centric Parts 150.65028 for the same application. The BH36840 part number is also searched alongside Ford F-250 brake hose and Ford F-350 front right brake hose replacement terms.
What This Brake Hose Helps Address
- Brake fluid seepage at the hose connection
- Cracked, swollen, or aged hydraulic hose material
- Restricted brake fluid flow from a damaged hose
- Soft or inconsistent brake pedal feel caused by hose deterioration
- Front-right brake line replacement on the listed Ford trucks
Installation Notes and Tips
Verify the vehicle year, model, and front-right position before ordering. Confirm the end fittings match the existing brake line connection: female thread SAE on one end and banjo on the other. Inspect the mating surfaces and replace any worn seals during installation, since a gasket or seal is included with this hose. After installation, bleed the brake system according to factory service procedures and check for leaks at all connections.
Quality Assurance
Raybestos Element3 brake components are built for brake system service applications that require correct fitment and sealing at the specified connection points. This BH36840 hose is listed for the confirmed Ford applications shown below: 1976 Ford F-250 front right, 1977 Ford F-250 front right, 1978 Ford F-250 front right, 1979 Ford F-250 front right, and 1979 Ford F-350 front right.
| Year | Make | Model | Body Type | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1979 | Ford | F-250 | Standard Cab Pickup | 2 Door | 4WD | Front Right | Element3 |
| 1979 | Ford | F-250 | Extended Cab Pickup | 2 Door | 4WD | Front Right | Element3 |
| 1979 | Ford | F-250 | Cab & Chassis | 2 Door | 4WD | Front Right | Element3 |
| 1979 | Ford | F-350 | — | — | 4WD | Front Right | Element3 |
| 1978 | Ford | F-250 | Standard Cab Pickup | 2 Door | 4WD | Front Right | Element3 |
| 1978 | Ford | F-250 | Extended Cab Pickup | 2 Door | 4WD | Front Right | Element3 |
| 1978 | Ford | F-250 | Cab & Chassis | 2 Door | 4WD | Front Right | Element3 |
| 1977 | Ford | F-250 | Standard Cab Pickup | 2 Door | 4WD | Front Right | From Chassis # Y40001; Element3 |
| 1977 | Ford | F-250 | Cab & Chassis | 2 Door | 4WD | Front Right | From Chassis # Y40001; Element3 |
| 1976 | Ford | F-250 | Cab & Chassis | 2 Door | 4WD | Front Right | 24.35" Length; Element3 |
| 1976 | Ford | F-250 | Standard Cab Pickup | 2 Door | 4WD | Front Right | 24.35" Length; Element3 |
