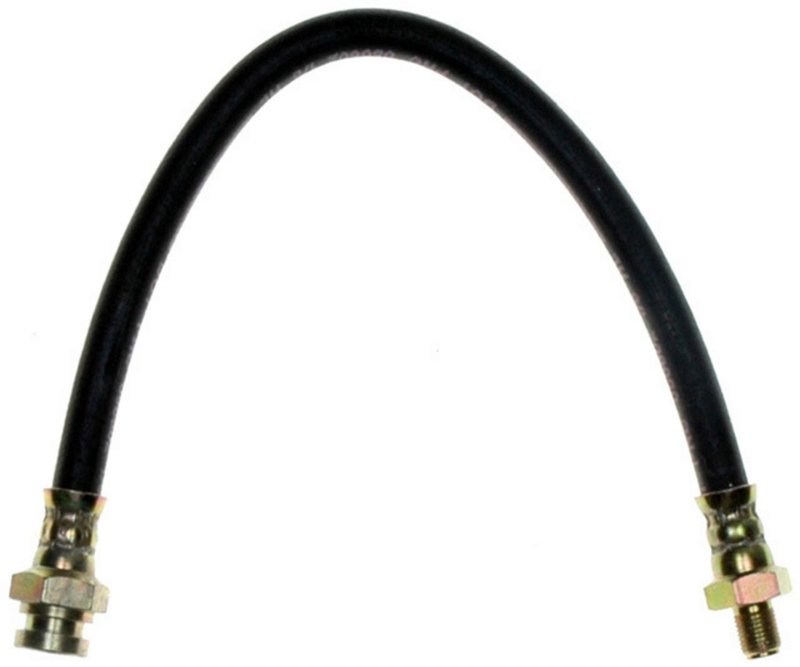

Raybestos BH36866 Brake Hydraulic Hose - Front, Rear or Rear Center
| Brand | Raybestos BH36866 |
|---|---|
| Position | Rear |
| Fitting Type, End 1 | Female Thread - SAE |
| Fitting Type, End 2 | Male Thread |
| Gasket Or Seal Included | No |
| Hose Length, Overall | 13.200 |
| Product line | Element3 |
| Fits | Nissan and Buick · 19 vehicles |
Element3 line. Brake hydraulic hose from Raybestos.
Threaded ends. Female SAE and male fittings for secure connections.
13.2-inch hose length for a precise hydraulic line replacement.
Cross-references Beck/Arnley 073-0879, Centric Parts 150.42300 and Dorman - First Stop H36866 for the same application. See all 36.
Raybestos Element3 Brake Hydraulic Hose BH36866
Raybestos Element3 BH36866 is a brake hydraulic hose built for specific Nissan rear and front brake applications. It uses a female thread SAE fitting on one end, a male thread fitting on the other, and measures 13.200 inches overall for the listed fitments.
The Raybestos Element3 line focuses on brake components engineered for direct replacement use, and this hose follows that approach with application-specific end fittings and length. If you are replacing a worn Nissan brake hose on a Maxima, 280ZX, 510, 810, or 200SX, BH36866 provides a cataloged match for the vehicles below.
Key Features
- Brake hydraulic hose for selected Nissan applications
- Overall hose length: 13.200 inches
- End 1 fitting: female thread - SAE
- End 2 fitting: male thread
- No gasket or seal included
- Raybestos Element3 part number BH36866
Detailed Description
BH36866 is a Raybestos brake hydraulic hose for direct-fit replacement in listed Nissan brake systems. It is cataloged for 1982-1984 Nissan Maxima rear, 1979-1983 Nissan 280ZX front, 1978-1981 Nissan 510 rear, 1977-1981 Nissan 810 rear center, and 1977-1978 Nissan 200SX rear applications. This part number is also referenced as BH36866 in brake hose replacement searches for these Nissan models.
This part cross-references Dorman - First Stop H36866 for the same application.
What This Brake Hose Helps Address
- Cracked or aging brake hose rubber
- Brake fluid seepage at the hose connection
- Restricted brake fluid flow from internal hose wear
- Soft or inconsistent brake pedal response caused by hose deterioration
- Replacement needs during Nissan brake system service
Installation Notes and Tips
- Verify the vehicle position before ordering: rear, front, or rear center as listed.
- Confirm the hose length and thread types match the original hose before installation.
- Inspect adjoining brake lines, brackets, and fittings for corrosion or damage.
- Bleed the brake system after hose replacement to remove air from the hydraulic circuit.
- Check for leaks and proper routing after installation.
Quality Assurance
Raybestos Element3 brake components are built for application-specific replacement use. BH36866 is listed with confirmed fitment for 1977-1984 Nissan brake applications, including Nissan Maxima, Nissan 280ZX, Nissan 510, Nissan 810, and Nissan 200SX.
| Year | Make | Model | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|
| 1984 | Nissan | Maxima | Wagon | 4 Door | Rear | Element3 |
| 1983 | Nissan | 280ZX | — | — | Front | Element3 |
| 1983 | Nissan | Maxima | Wagon | 4 Door | Rear | Element3 |
| 1982 | Nissan | 280ZX | — | — | Front | Element3 |
| 1982 | Nissan | Maxima | Wagon | 4 Door | Rear | Element3 |
| 1981 | Nissan | 280ZX | — | — | Front | Element3 |
| 1981 | Nissan | 510 | Wagon | 4 Door | Rear | Element3 |
| 1981 | Nissan | 810 | Wagon | 4 Door | Rear Center | Element3 |
| 1980 | Nissan | 280ZX | — | — | Front | Element3 |
| 1980 | Nissan | 510 | Wagon | 4 Door | Rear | Element3 |
| 1980 | Nissan | 810 | Wagon | 4 Door | Rear Center | Element3 |
| 1979 | Nissan | 280ZX | — | — | Front | Element3 |
| 1979 | Nissan | 510 | Wagon | 4 Door | Rear | Element3 |
| 1979 | Nissan | 810 | Wagon | 4 Door | Rear Center | Element3 |
| 1978 | Nissan | 200SX | — | — | Rear | Thru 12/78; Element3 |
| 1978 | Nissan | 510 | Wagon | 4 Door | Rear | Element3 |
| 1978 | Nissan | 810 | Wagon | 4 Door | Rear Center | Element3 |
| 1977 | Nissan | 200SX | — | — | Rear | Element3 |
| 1977 | Nissan | 810 | Wagon | 4 Door | Rear Center | Element3 |
