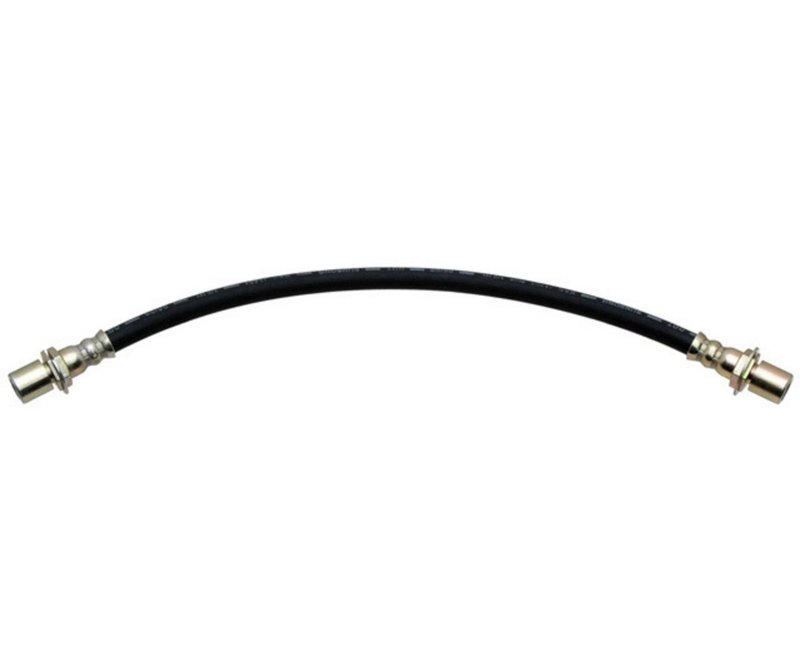

Raybestos BH36966 Brake Hydraulic Hose - Front, Front Inner or Rear
OE Quality 60-Day Returns
Raybestos
 Element3

Raybestos BH36966 Brake Hydraulic Hose - Front, Front Inner or Rear

Brand Raybestos BH36966
Position Front
Fitting Type, End 1 Female Thread - SAE
Fitting Type, End 2 Female Thread - SAE
Gasket Or Seal Included No
Hose Length, Overall 14.400
Product line Element3
Fits Toyota · 54 vehicles

Brake hydraulic hose. Female-thread SAE fittings for secure hydraulic connections.

Element3 line. Raybestos engineering for dependable brake system performance.

Cross-references Beck/Arnley 073-1052, Centric Parts 150.44019 and Dorman - First Stop H36966 for the same application. See all 46.

$31.28Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $31.28
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Hydraulic Hose options

Raybestos Element3 Brake Hydraulic Hose BH36966

Raybestos Element3 BH36966 is a brake hydraulic hose for select Toyota applications, built with female SAE threaded fittings at both ends and an overall length of 14.400 inches. It is specified for front, rear, and front inner positions across covered Toyota T100, 4Runner, Pickup, Corolla, and Celica fitments.

Key Features

  • Brake hydraulic hose for hydraulic brake line replacement
  • Female Thread - SAE fittings on end 1 and end 2
  • Overall hose length: 14.400 inches
  • No gasket or seal included
  • Raybestos Element3 line for select Toyota brake hose applications

Fitment Details

  • Fits 1993-1998 Toyota T100, front
  • Fits 1986-1995 Toyota 4Runner, front
  • Fits 1986-1995 Toyota Pickup, front
  • Fits 1985-1987 Toyota Corolla, rear
  • Fits 1983-1985 Toyota Celica, front inner
  • Fits 1979-1983 Toyota Pickup, front, w/ 3/4 Ton Chassis
  • Fits 1979-1983 Toyota Pickup, front, compatible with vehicles equipped with a 1/2 ton chassis
  • Fits 1982 Toyota Celica, front inner, without Independent Rear Suspension

Product Description

BH36966 is a direct-fit brake hydraulic hose for Toyota brake systems that use SAE female threaded connections and the listed hose length. The Raybestos Element3 platform covers multiple Toyota truck and car applications, including front brake hose service on the Toyota T100, Toyota 4Runner, and Toyota Pickup, plus rear and front inner positions where specified. This part cross-references Dorman - First Stop H36966 for the same application.

Common Replacement Reasons

  • Cracked, swollen, or aging brake hose material
  • Brake fluid seepage at the hose connection points
  • Restricted brake fluid flow from internal hose deterioration
  • Soft or inconsistent brake pedal feel related to hose condition
  • Service replacement during brake line or suspension work

Installation Notes

Verify end fittings, hose length, and brake hose routing before installation. Confirm the vehicle position listed for your application, including front, rear, or front inner placement, and inspect the mating hard lines and mounting points for wear or corrosion. Bleed the brake system after installation and check all connections for leaks.

Quality Assurance

Raybestos Element3 brake components are built for service replacement across covered Toyota applications. BH36966 is specified with SAE female threaded ends and no gasket or seal included, so matching the existing brake hardware and sealing surfaces is important during installation.

Related reading

This part fits 54 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody Type# DoorsDrive TypePositionNotes
1998ToyotaT100———4WDFrontElement3
1997ToyotaT100———4WDFrontElement3
1996ToyotaT100———4WDFrontElement3
1995Toyota4Runner————FrontElement3
1995ToyotaPickup———4WDFrontElement3
1995ToyotaT100———4WDFrontElement3
1994Toyota4Runner————FrontElement3
1994ToyotaPickup———4WDFrontElement3
1994ToyotaT100———4WDFrontElement3
1993Toyota4Runner————FrontElement3
1993ToyotaPickup———4WDFrontElement3
1993ToyotaT100———4WDFrontElement3
1992Toyota4Runner————FrontElement3
1992ToyotaPickup———4WDFrontElement3
1991Toyota4Runner————FrontElement3
1991ToyotaPickup———4WDFrontElement3
1990Toyota4Runner————FrontElement3
1990ToyotaPickup———4WDFrontElement3
1989Toyota4Runner————FrontElement3
1989ToyotaPickup———4WDFrontElement3
1988Toyota4Runner————FrontElement3
1988ToyotaPickup———4WDFrontElement3
1987Toyota4Runner————FrontElement3
1987ToyotaCorollaFX———RearElement3
1987ToyotaPickup———4WDFrontElement3
1986Toyota4Runner————FrontElement3
1986ToyotaCorolla—Hatchback4 Door—RearElement3
1986ToyotaCorolla—Sedan4 Door—RearElement3
1986ToyotaCorolla—Hatchback2 Door—RearElement3
1986ToyotaPickup———4WDFrontElement3
1985ToyotaCelicaGT———Front InnerElement3
1985ToyotaCelicaGTS———Front InnerElement3
1985ToyotaCelicaST———Front InnerElement3
1985ToyotaCorolla—Sedan4 Door—RearElement3
1985ToyotaCorolla—Hatchback4 Door—RearElement3
1985ToyotaCorolla—Hatchback2 Door—RearElement3
1984ToyotaCelicaGT———Front InnerElement3
1984ToyotaCelicaGTS———Front InnerElement3
1984ToyotaCelicaST———Front InnerElement3
1983ToyotaCelicaGTS———Front InnerElement3
1983ToyotaCelicaGT———Front InnerElement3
1983ToyotaCelicaST———Front InnerElement3
1983ToyotaPickup—Standard Cab Pickup2 DoorRWDFrontw/ 3/4 Ton Chassis; Element3
1983ToyotaPickup———RWDFrontCompatible with vehicles equipped with a 1/2 ton chassis.; Element3
1982ToyotaCelicaST———Front Innerwithout Independent Rear Suspension; Element3
1982ToyotaCelicaGT———Front Innerwithout Independent Rear Suspension; Element3
1982ToyotaPickup—Standard Cab Pickup2 DoorRWDFrontw/ 3/4 Ton Chassis; Element3
1982ToyotaPickup———RWDFrontCompatible with vehicles equipped with a 1/2 ton chassis.; Element3
1981ToyotaPickup—Standard Cab Pickup2 DoorRWDFrontw/ 3/4 Ton Chassis; Element3
1981ToyotaPickup———RWDFrontCompatible with vehicles equipped with a 1/2 ton chassis.; Element3
1980ToyotaPickup—Standard Cab Pickup2 DoorRWDFrontw/ 3/4 Ton Chassis; Element3
1980ToyotaPickup———RWDFrontCompatible with vehicles equipped with a 1/2 ton chassis.; Element3
1979ToyotaPickup—Standard Cab Pickup2 DoorRWDFrontw/ 3/4 Ton Chassis; Element3
1979ToyotaPickup———RWDFrontCompatible with vehicles equipped with a 1/2 ton chassis.; Element3
Directly replaces or cross-references 46 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 073-1052Centric Parts — 150.44019Dorman - First Stop — H36966Dorman - HELP — 77669Four Seasons — 7736622.116925-30170073-131477263772747773831088025636966909310102690931010279093101046909470237990947024279094702465968165035096950335559695033656BH815BH1338BH120880BH177274BH177366BH177738BH1773661BH1773662BH1773663F96816F106374F111958F120880GHP434GJH465GJH763HB56054SBH1339SH42537SH42557SP5915SP8303SP8408W79-274
